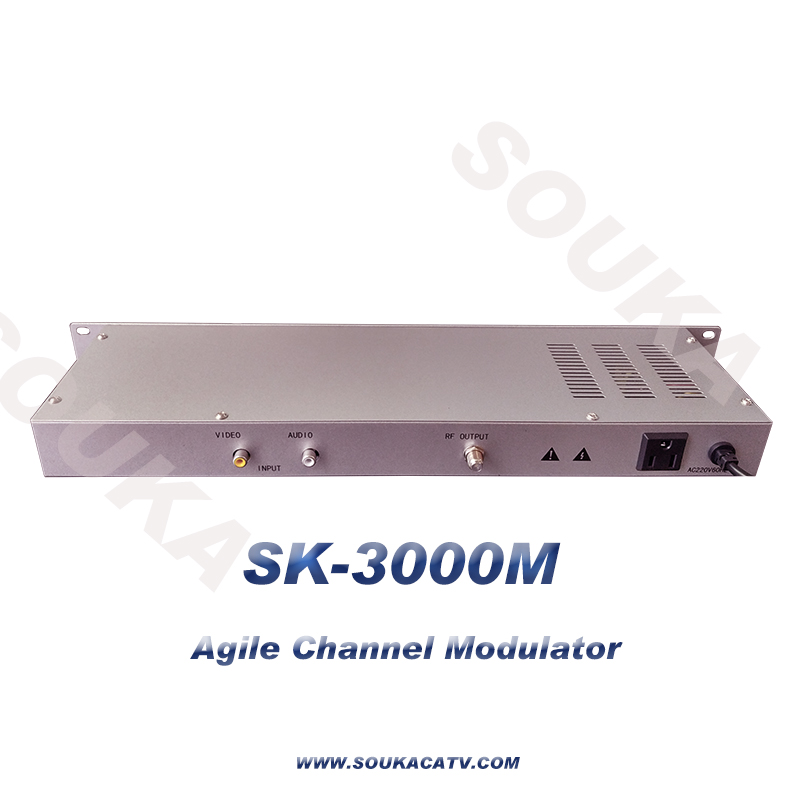

SK-3000M

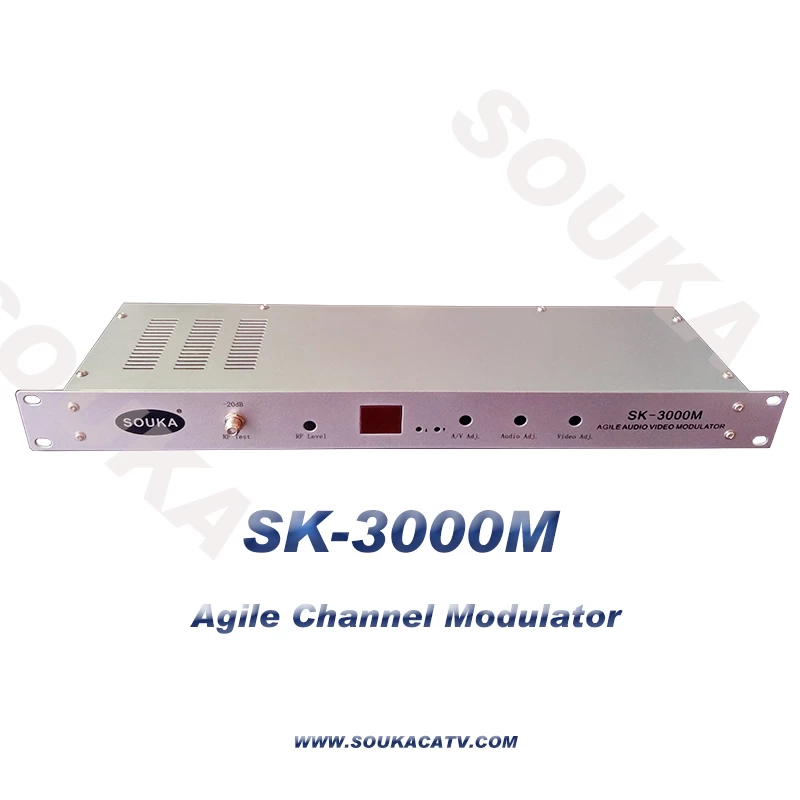

The SK-3000M Analogy agile modulator is cost-saving grade, SAW filtered, freuency agile modulator specifically designed to meet the highest HOTEL performance standards. All channels are easily selected using front panel buttons and verified with an EASY-TO-READ LED channel display.
Features:
1. High output level 110dBμV
2. SAW filtering for maintenance free adjacent channel configuration
3. Low out-of-band noise
4. LED Display. Front panel control for easy installment
5. Excellent video and audio linearity for superior picture quality
6. Standard 19” housing for standard rack
|
RF
|
|
Output
Frequency:
|
45-860MHz
|
|
Output Level :
|
110dBuV
|
|
Output Impedance:
|
75 Ω
|
|
Frequency
Accuracy:
|
±5KHz
|
|
Sideband
Suppression:
|
≥ 60dB
|
|
A/V
Ratio :
|
-10dB
|
|
Video
|
|
Input Level:
|
0.6-1.5Vp-p
|
|
K Value:
|
4% MAX( 2T Pulse )
|
|
Differential Gain:
|
±4%
|
|
SNR:
|
50dB ( Non-Weight)
|
|
Flatness:
|
±1dB
|
|
Differential Phase:
|
±4°
|
|
Audio
|
|
Input Level:
|
-10 to 10dBm
|
|
Flatness:
|
±1dB MAX
|
|
SNR:
|
-60dB
|
|
Harmonic Distortion:
|
＜0.5
|
