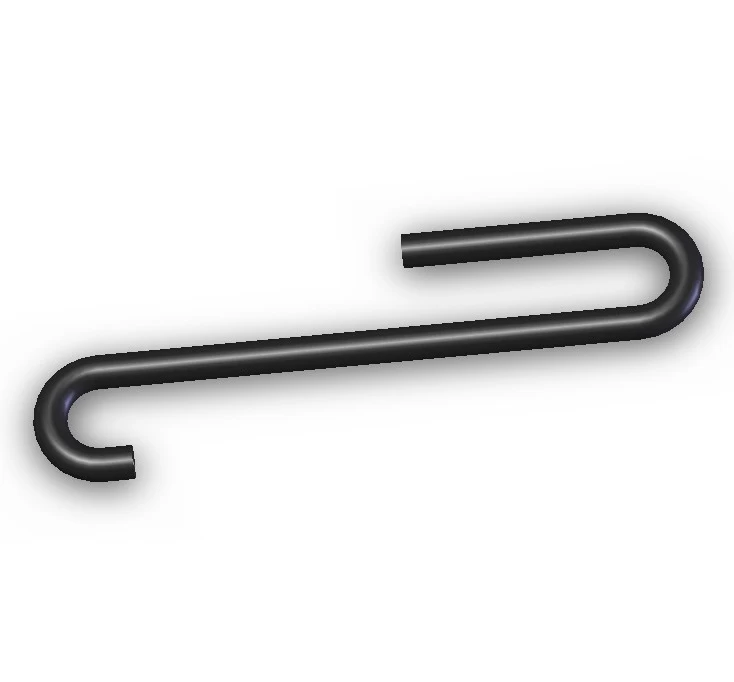

Aging resistance drain hoses for air conditioner of automobile

Material: EPDM+yarn+EPDM, Aging resistance drain hoses for air conditioner of automobile



Aging Resistance Drain Hoses For Air Conditioner Of Automobile

Part Type:  Water Hose

Range of Size: ¢2~¢50 mm

Material Conformation:  EPDM/yarn/EPDM

Meet SPEC.:  SAE J20 R4/R3 D1/D2/D3 , HES D3210 WH-A, ES-60607


Main Performance:

1. Aging resistance:  120℃; Low temp resistance:-40℃
2. Oil resistance:  ASTM NO.1

3. Fluid resistance:  Coolant Fluid

4. Burst pressure:  >15kgf/cm2

5. Ozone resistance:  50pphm*200H


Application Markets:

Drain Hoses of air conditioner of Automobile,

Drain Hoses of sunroof of Automobile,etc.


Features of Different Rubber Material
Rubber hose is used for a wide range of applications throughout many different industries. Select the right rubber material, design effective compound formula, use in the proper environment, will make it work well and last long without breaking down, becoming brittle, ect., and saving you money on replacements.

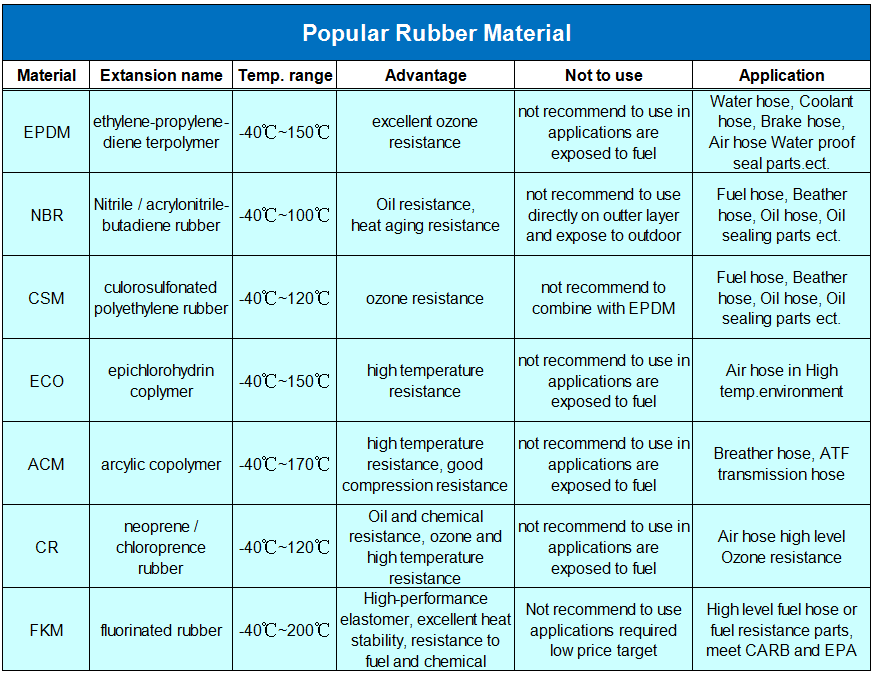

Rubber material feature



Producing Process of Rubber Hoses

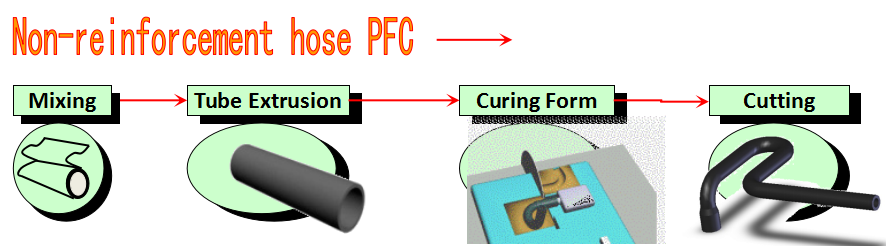

Process of rubber hoses

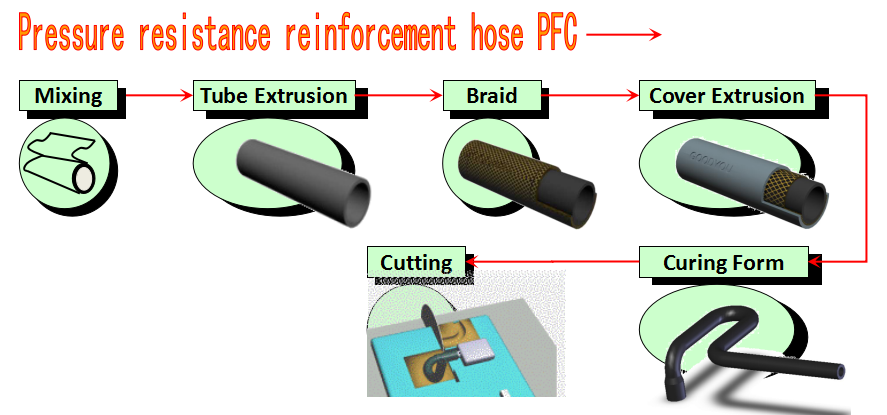

Process chart of braided rubber hoses



Our Technical Advantage



About Us
Goodyou supply rubber products in an extensive range of size and types. Our most popular products include fuel hose, air hose, oil hose, water hose, wire harness sleeves, dust proof sleeves, rubber to metal bonding, etc. As a customer driven company, Goodyou always strive for excellence in service and quality. With vast experience in rubber engineering, we are capable to provide customers with solutions to various applications.



Why Choose Goodyou

We develop products only when we fully understand your application needs.
We offer OEM service
We do good after-sale service
We promise to reply your inquiry within 24hours.



Our Commitment
High quality, Low cost, Strong deliver ability, Professional service.



FAQ
1.What is your minimum order?
Because all products are custom made, the minimum order will depend on how much the batch of rubber will yield for the part you are requesting.

2. Which kinds of materials is available to GOODYOU?
We work with many different materials, including EPDM, NBR, CR, ACM, ECO, FKM, silicone, SBR, NR, and flexible PVC & PU, and various types of sponge rubber.

3. What types of rubber parts do you supply?
We supply custom molded, extruded, injected rubber parts. We also accept rubber mold orders for those customers who have their own rubber production lines.
