Agricultural Greenhouse Ground Solar Mounting System
Solar ground farm mounting system used in large-scale commercial solar farm power plant for public utility. This is a simple pre-assembled bracket mounting system which is suitable for frame and frameless modules.

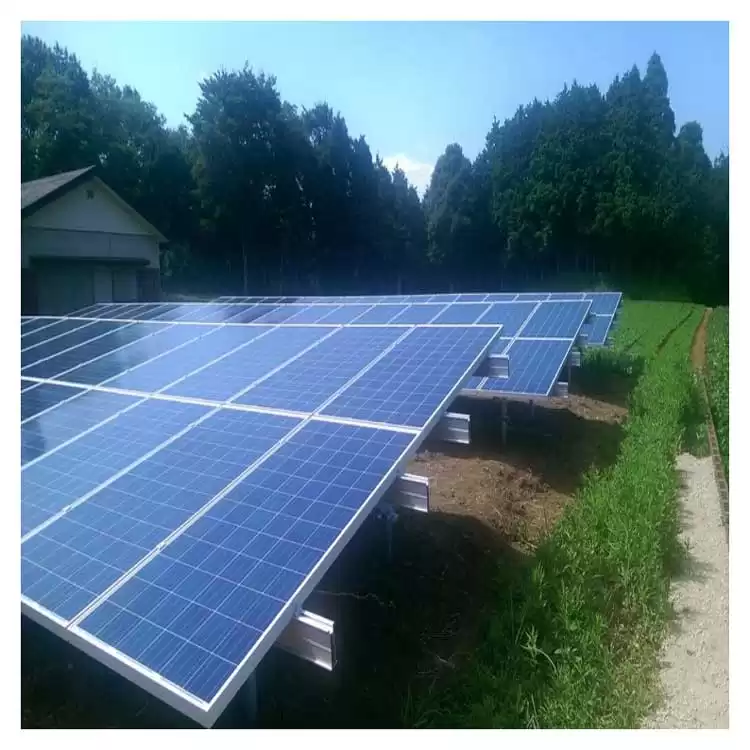

Agricultural Greenhouse Ground Solar Mounting System
Solar ground agricultural installation system has been developed for installation of photovoltaic array system in open field. The stability and safety of this product conform to international structural mechanics and construction law. Ground mounting systems can be installed in different foundation solutions, such as concrete embedded bolts, direct embedded and ground screws. This product is made of hot-dip galvanized steel and aluminum alloy anodized, with strong anti-corrosion performance, suitable for outdoor agricultural use. The system can be planned and customized in the factory according to the actual needs, avoiding on-site welding and cutting, saving your time and cost.

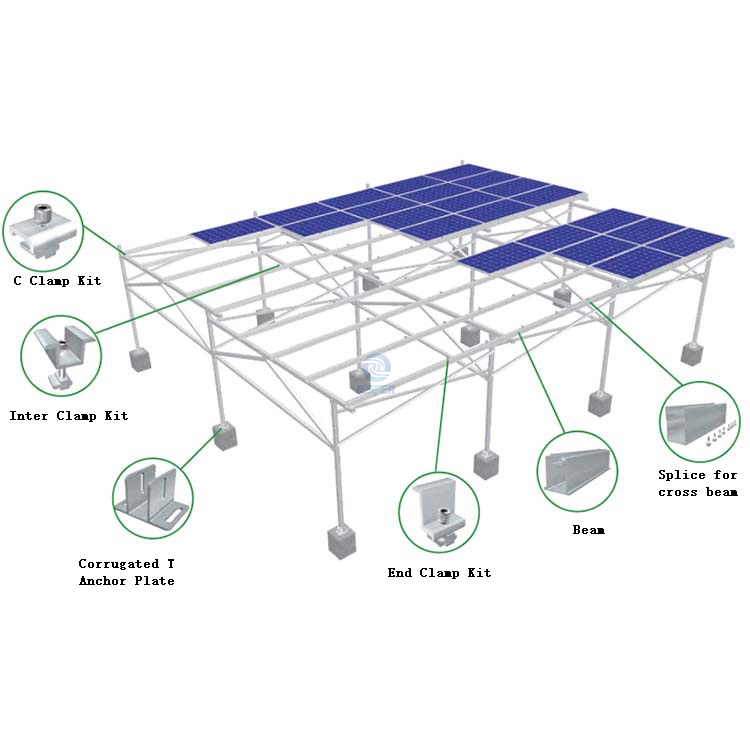

System Structure
Technical Parameters
|
System Name |
Ground Mount System GM13 |
Panel Layout |
Landscape or Portrait | ||||
|
Foundation |
Concrete Foundation,Ground Screw |
Material |
Anodized AL6005-T5 | ||||
|
Tilt Angle |
0-30degrees |
Fastener |
SUS304 &Zinc-Nickel Alloy Electroplated Steel | ||||
|
Snow Load |
1.6KN㎡ |
Color |
Customized or Silver | ||||
| Wind Load | 80ms |
Design Standard |
ANNZS1170,DIN1055,JIS C8955,etc. | ||||
|
Applicable Solar Module |
Framed or Frameless |
Warranty | 10 Years | ||||
| Ground Clearance | above 1800mm | Small Components | Anodized AL-6005-T5 | ||||
Components Details
|
Specification：L260mm
Components:Splice for Cross Beam,Hexa Self-Tapping Screw
with EPDM Washer ST6.3*19
|
Specification：L*71*85
Standard Length：3100mm,4100mm,5100mm
| ||
Pre-Assemble Support
Components:55*55Tube；U-shape Connector ,T-shape Connector
；55**55C Clamp kit Corrugated gasket；Flat washer M8,
Spring washer M8； Flat washerM12 ,Hexagon Socket Head Bolt M8*20,
Flat washer M12；Spring washer M12,Hexagon Socket Head Bolt M12*95,
Hexagon Socket Head Nuts,Hexagon Socket Head Bolt M12*90
|
 Post
Specification：L150
Components:55*55Tube,U-shape Connector,
U-shape Single Connector,T-shape kit,Flat washer M12
Spring washer M12,Hexagon Socket Head Bolt M12*90
Spring washer M8,Hexagon Socket Head Bolt M8*20
| ||
 Wide End ClampKit
Components:Wide End Clamp, Cross Module,
Spring Washer M8,Hexagon Socket Bolt
|
 Inter Clamp KitComponents：Inter Clamp,Cross Module
Spring Washer M8,Hexagon Socket Bolt
| ||
 C Clamp Kit
Components:C Clamp, Cross Module,Spring Washer M8
Hexagon Socket Bolt
|

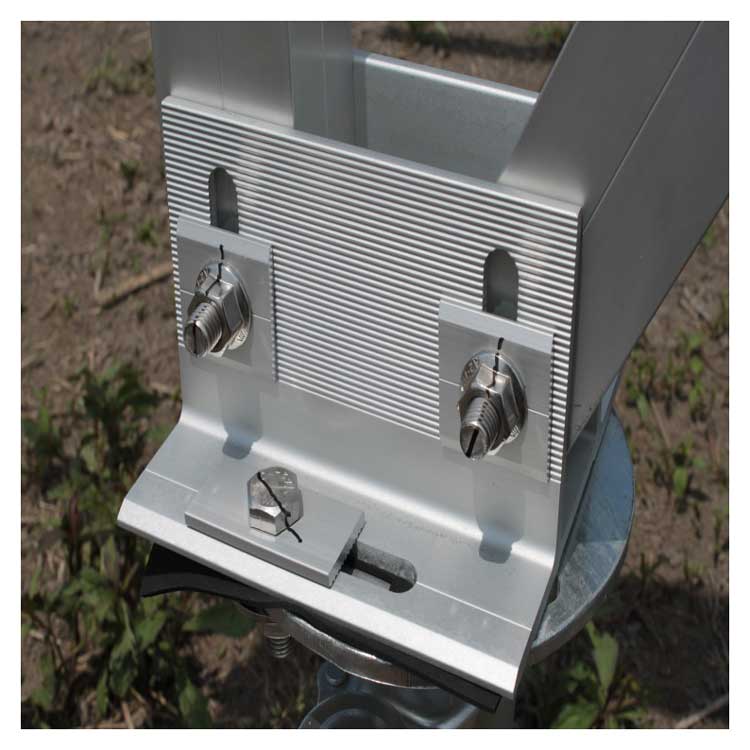

Corrugated T Anchor Plate Kit
Components:Corrugated Gasket,Corrugated T Plate
Hexagon Bolt Kit
Material:AL6005-T5（Anodized ）
| ||
Installation Guide
1.Grout the bolt embedded on the concrete foundation based on project solution.
2.Install Anchor Plate.
3.Install Post.
4.Install the Pre-assemble Support.
5.Install Inclined Support.
6.Install Beam.
7.Fix the solar module with Inter Clamp Kit & End Clamp Kit.
8.Installation is done.
