Overview

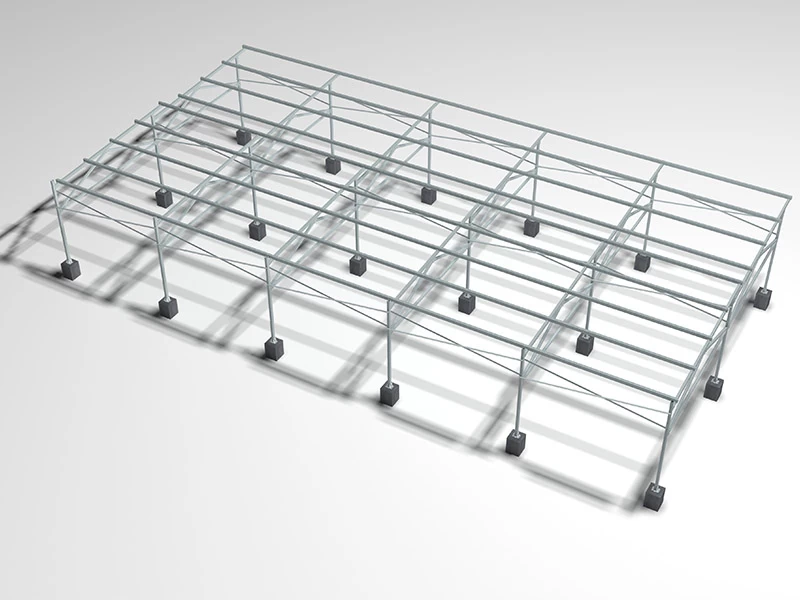

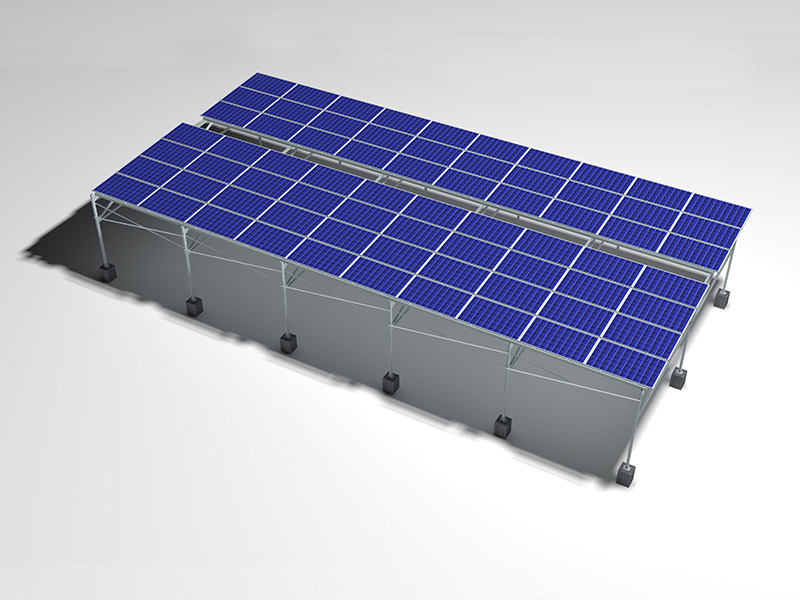

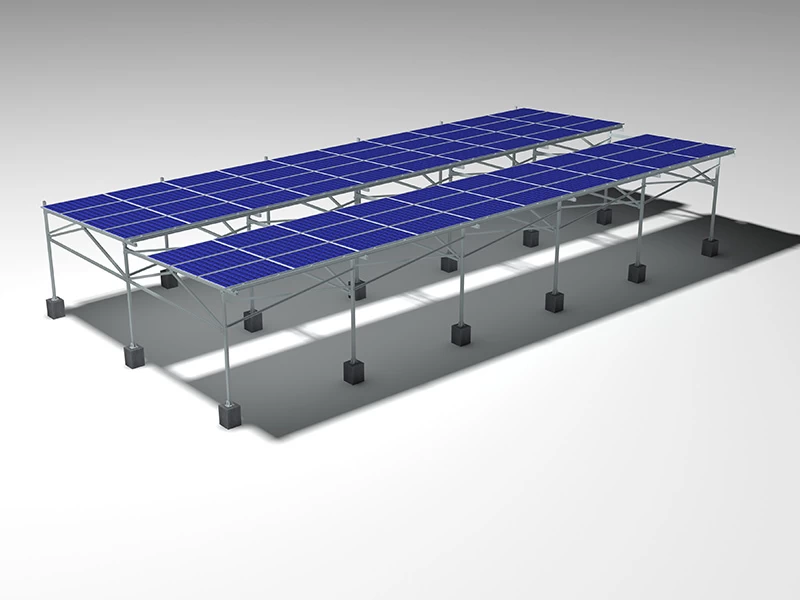

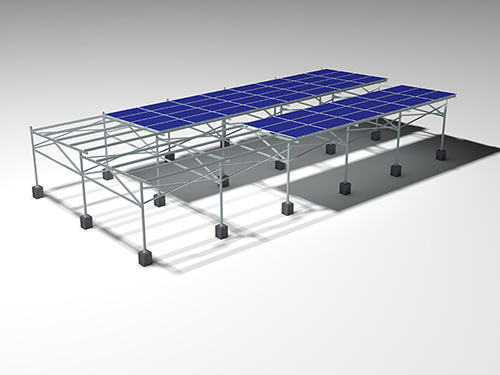

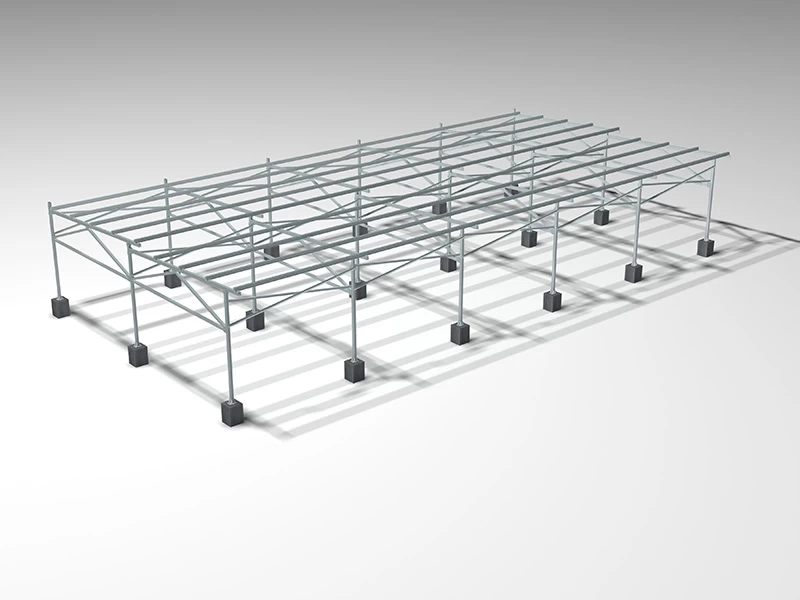

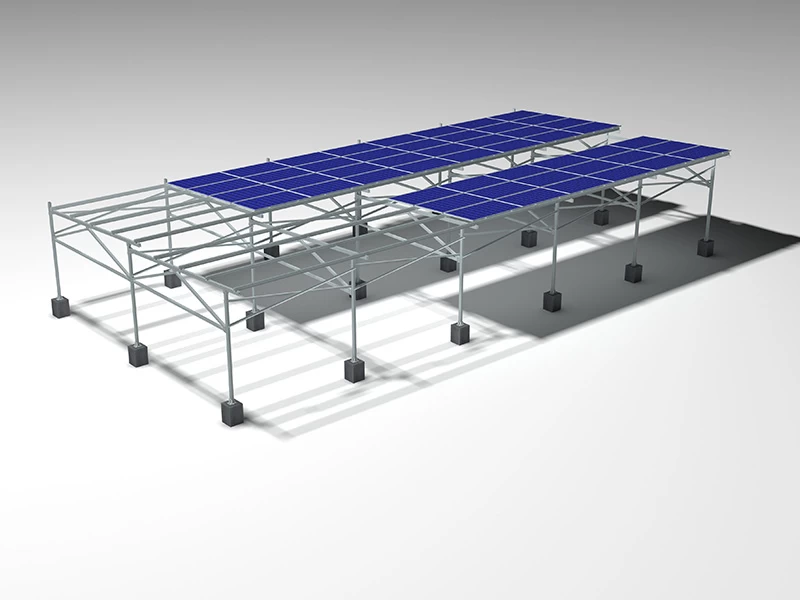

MRac Agricultural Greenhouse Mounting System is mainly applied
to the installation of agricultural solar PV farms, achieving the
dual-use of lands. According to the varied solar module arrays, the
light exposure requirement of plant and the dimension of farming
machines, Mibet Energy will design a suitable mounting system
solution with highly pre-assembled structure to guarantee easy and
quick installation.
Features
1.Dual-Use of Land Improve the Economic Benefit
Install solar projects above the planting land, achieving the
dual-use of land to improve the economic benefit.
2.Create Different Growing Conditions for Different Plants
To satisfy the different light exposure requirements of varied
plants, MRac agricultural greenhouse mounting system can be
installed with different transmittance solar modules or different
solar module arrays.
3.Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled
in factory, no onsite cut and drill request, saving the onsite
installation time and cost.
4.No Drill on Portrait Beam
It improves the strength of the system to fix the portrait beam
onto the post by special designed clamps, with force at the same
direction of the gravity.
|
Technical Parameter
|
|
Installation Site
|
Ground
|
|
Foundation
|
Concrete Base or Ground Screw
|
|
Tilt Angle
|
0-30°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
1800mm+
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Steel Q235B(Hot-Dip Galvanized)
|
|
Fastener
|
SUS304 &Hot-Dip Galvanized &Zinc-Nickel Alloy Electroplated Stee
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Technology Certification
