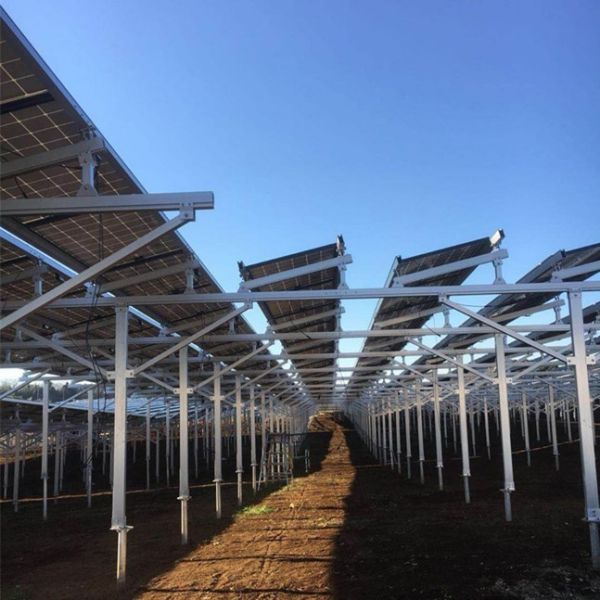

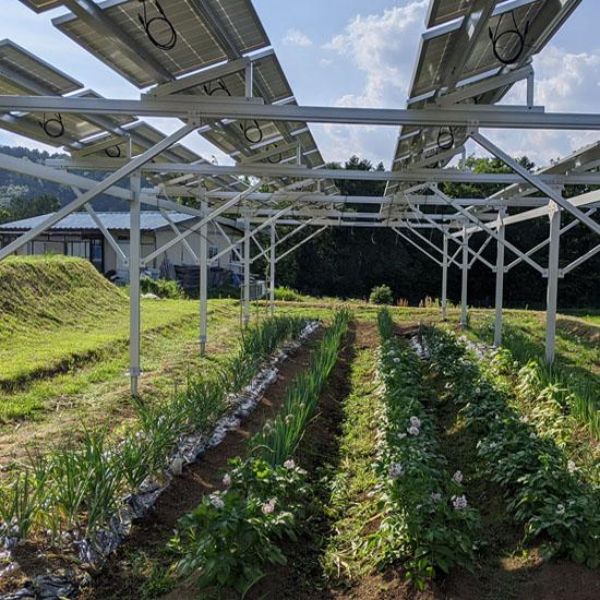

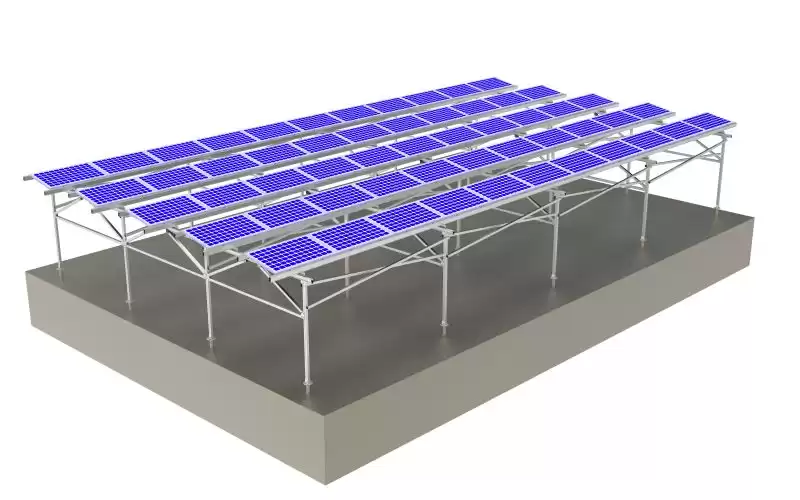

Agriculture Solar Farm Ground Mount Racking System

Solar farm racking for agriculture could protect the plan and could cover the strong sunshine, there are competitive price and no environmental pollution, it can cope with harsh conditions like heavy snow load or high wind speed.



  • PRODUCT ORGINXIAMEN CHINA
  • SHIPPING PORTXIAMEN
  • BRANDXHFSOLAR
  • SURFACEANODIZED
  • MAX WIND SPEED60m/s
  • COLORSILVER
  • SNOW LOAD 1.4KN/m²
  • APPLICATIONGROUND
  • DELIVERY7-30 DAYS
  • SERVICE LIFE20-25 YEARS
  • WARRANTY10 YEARS
  • MATERIALAI6005 +SUS304 +STEEL
  • PAYMENT TT/LC

Our Agriculture Solar Farm Ground Mount Racking System is the most economical ground mounting system for Large scale solarinting system.We create an economical and reliable solutions for photovoltaic projectson a free surface.

We use the high-quality Carbon Steel to make sure will sustain strong wind load and snow load resistance . The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites . Patented and certifiedsystem design ensure projects safety and quick installation




A

XHF-AG4-FS01

B

XHF-GF-F76x1600

C

XHF-AG4-CN

D

XHF-EC-35

E

XHF-AG4-CH03

F

XHF-AG4-CH02

G

XHF-AG4-RK

H

XHF-R01-8#-S

I

XHF-SC-F/R/TL














Parameters
Application
Open Terrain
Module Orientation:
Portrait or Landscape
Module Tilt Angle
5-30 degree
Max Wind Speed
60 m/s
Snow Load
1.4 KN/m2
Material
Aluminnum Alloy 6005-T5; Stainless Steel 304
Surface
hot dipped galvanized
Foundation
Ground screw or concrete block
Anti-corrosive Treatment:
Anodize; Shot Blasting
Warranty:
12 years
Duration:
more than 20 years



1. Adopting high strength aluminum alloy 6005-T5 and stainless steel 304 material

2. Some components are pre-assembled in factory, so that to reduce the labor cost and installation time on site

3. High anti-corrosion

4. Making customized as request


Vertical and horizontal module installation are possible

Variable module pitch from 5° to 40°
Maximum flexibility thanks to height-adjustable module clamps and end clamps
Long service life, complete recyclability and corrosion resistance

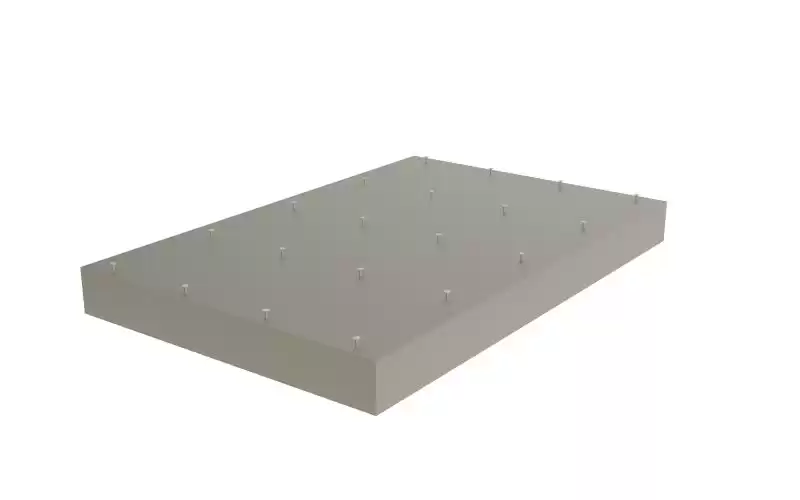

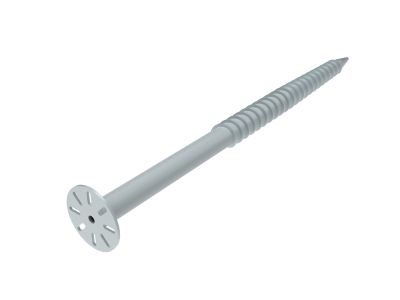

Step 1: Fix the grpund screw and the pole

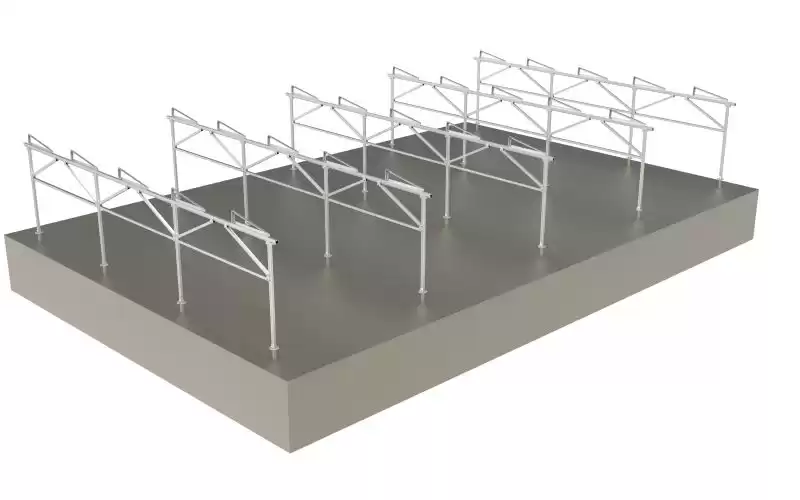

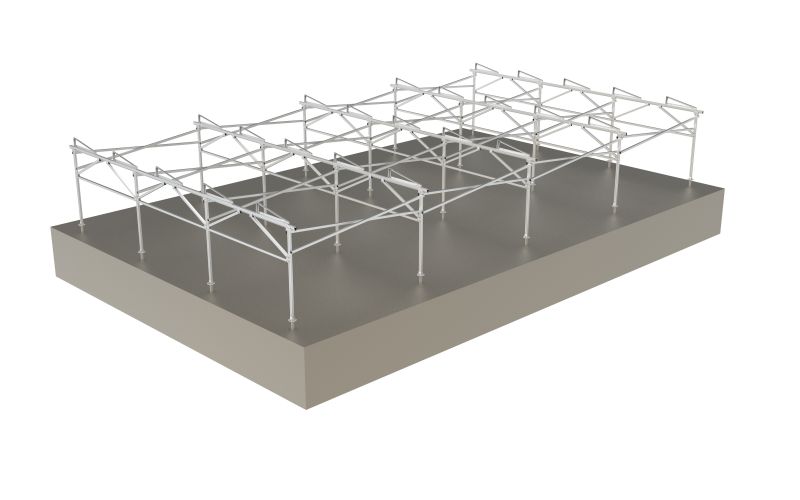

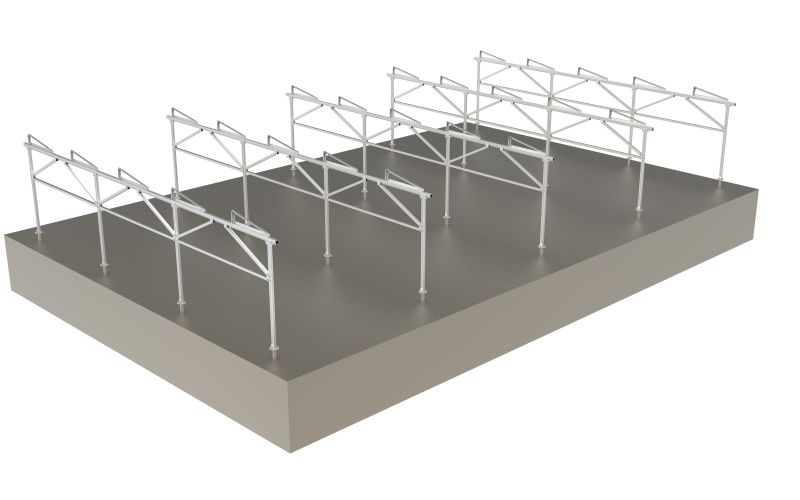

Step 2: Fix the beams

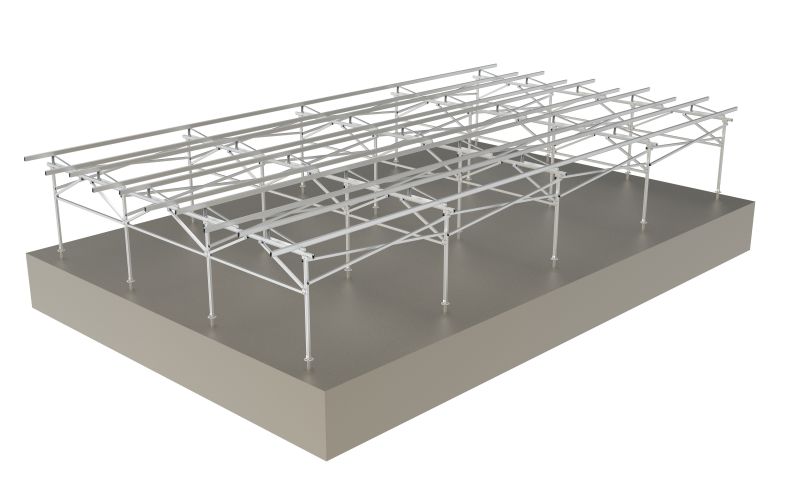

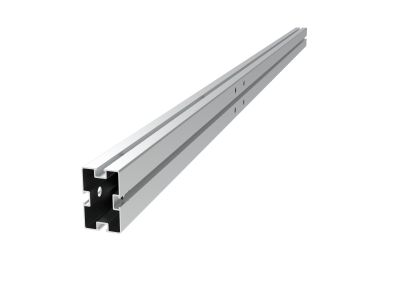

Step 3: Install rail on beam

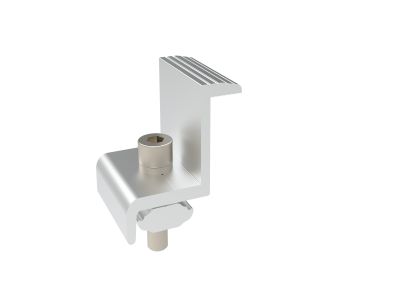

Step 4:Fix panel by clamp on rail until finish.



Xiamen Xhfsolar Industrial Co., Ltd. ("Xhfsolar") is one of the few large factories in Xiamen, Fujian Province, which was established around 2010. The factory covers an area of about 50,000 square meters, with an annual output of about 8GW.


We're a high tech enterprise specializing in design, development, production and sales for solar mounting. With more than 10 years of industry experience and experienced engineer team, Xhfsolar provides roof mounting solution, ground mounting solution, agricultural mounting solution and solar carport etc.. Besides, we also have advantages in floating mounting, vehicle bracket, aluminum alloy frame, fence. In particular, the annual production capacity of ground screws can reach 800,000pcs.


Our products conform to international standards and pass EN standards. In addition, we have passed strict international quality certification such AS JISC8955, ISO9001 quality management system, AS/NZS 1170, TUV, UL, CE and CPP. Our products are sold to more than 100 countries including Japan, Europe, the United States, North America, and southeast Asia, and have been well received by our customers due to our high quality and low costs.


Price
Because we are a factory with a large production scale, our price will be more competitive than other suppliers
Quality
At present, we have qualified the AS/NZS 1170, TUV, UL, CE, CPP and other international certifications , and we will strictly follow the requirements in the production process. What's more we can provide the production schedule to you so that you can understand the production schedule
Market
Up to now, we have exported to Africa, the Middle East, Southeast Asia, the United States, Japan and European markets
Delivery time
7-30 days
Payment term
Flexible
Tech support
OEM,OGM
After Service
10 years warranty+ 25 long service
