Product Name: AGV material handling Electric Pallet Stacker AGV Panda
Product Advantage
1.Stacking type AGV with support legs.
2.The turning radius is narrow.
3.Suitable for one side pallet.
4.Can customize the national standard European standard and non standard model.
Product parameters
Model: CDD * J01
Navigation mode: laser navigation
Body size: 1935 * 1070 * 2149mm(subject to design)
Accuracy in place: ± 10mm
Lifting height: 1600mm-3000mm
Rated load: 1000kg-2000kg

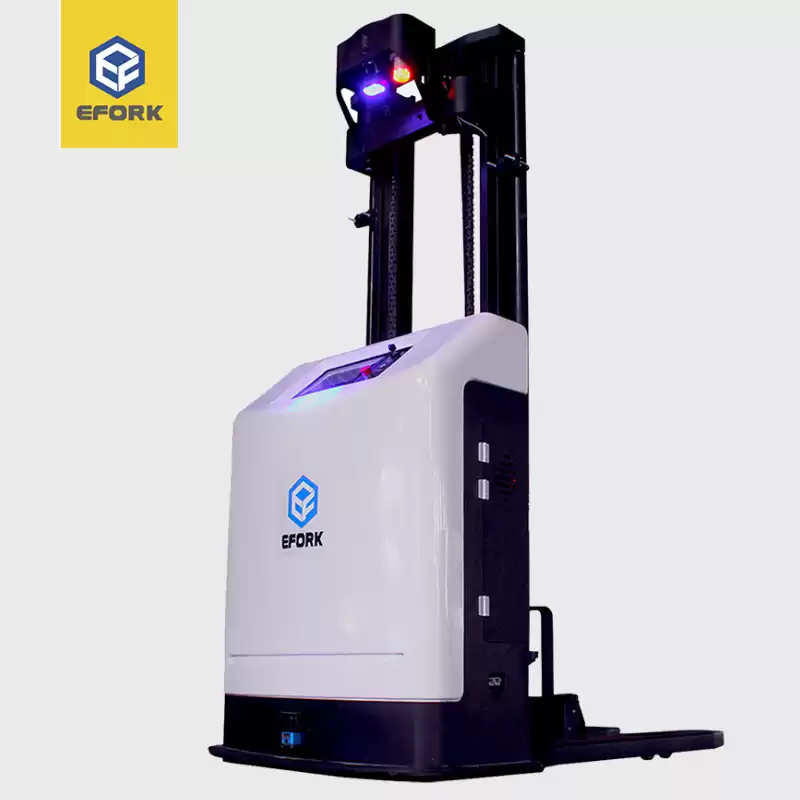

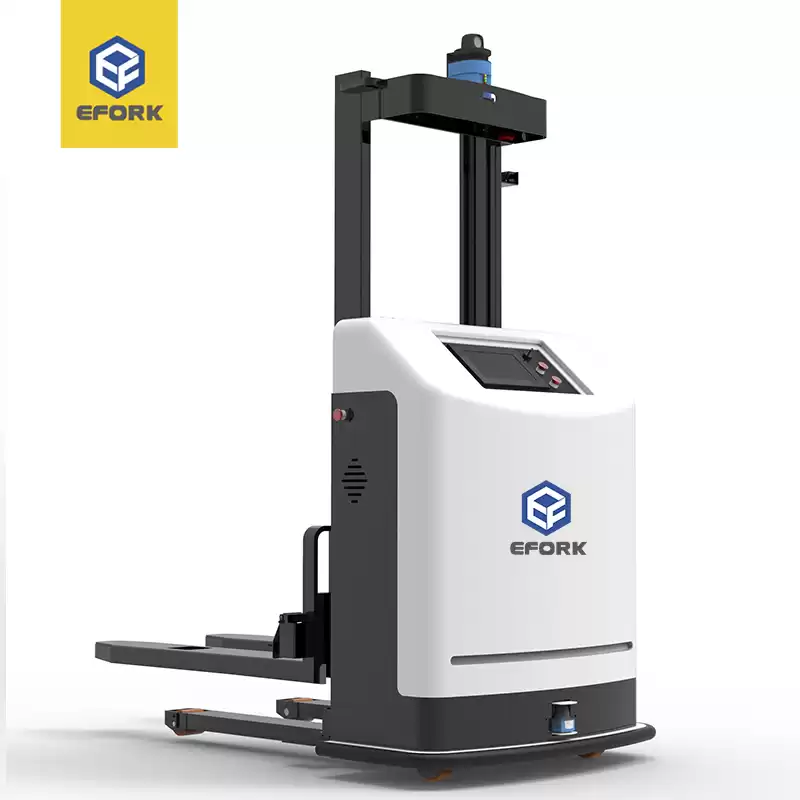

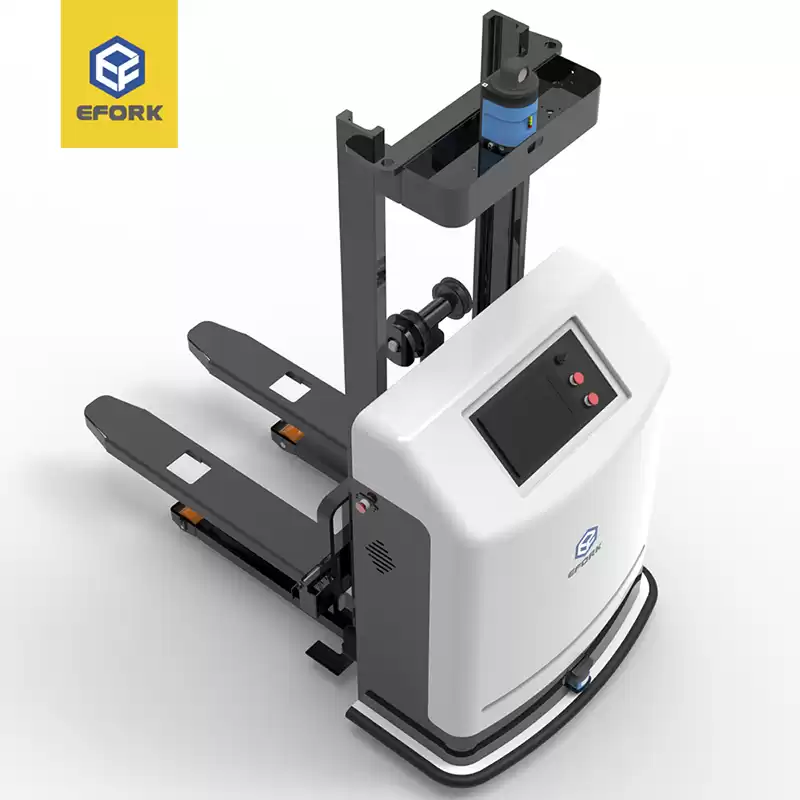

Product Display
Product Data
|
CDD*J01-16
|
Basic parameters
|
Appearance size
|
mm
|
L1935*W1070*H2149
|
|
self weight
|
kg
|
820
|
|
Navigation mode
|
Laser navigation
|
|
control mode
|
intelligent motion control system
|
|
Lifting height
|
mm
|
1600
|
|
Rated load capacity
|
kg
|
0~2000
|
|
Load center
|
mm
|
500
|
|
Sports performance
|
running speed
|
m/min
|
40
|
|
Working environment temperature
|
℃
|
-10℃-40℃
|
|
Orientation accuracy
|
mm
|
±10mm
|
|
Stop accuracy）
|
mm
|
±20mm
Secondary positioning is needed for higher accuracy
|
|
Direction of travel
|
two-way）
|
|
Rotation capability
|
The steering wheel rotates 90 degrees
|
Lifting speed (loaded / unloaded)
|
mm/s
|
100/130
|
Descent speed (loaded / unloaded)
|
mm/s
|
110/ 80
|
|
Minimum turning radius (excluding AST)
|
mm
|
1475
|
Stacking channel (1200 fork * 1000)
|
mm
|
2560（include Ast)
|
|
Performance of lithium battery
|
Rated voltage）
|
V
|
24
|
|
electric capacity
|
Ah
|
180
|
Number of charge discharge cycles
|
frequency
|
1000
|
|
Endurance time
|
h
|
It runs for about 8 hours
|
|
Charging time
|
h
|
1-2
|
|
safety protection
|
Laser obstacle avoidance
|
YES
|
|
Pallet in place inspection
|
YES
|
Inspection of fork tooth infrared sensor
|
YES
|
|
Emergency stop button
|
YES
|
|
Sound and light alarm
|
YES
|
|
Mechanical collision avoidance
|
YES
|
