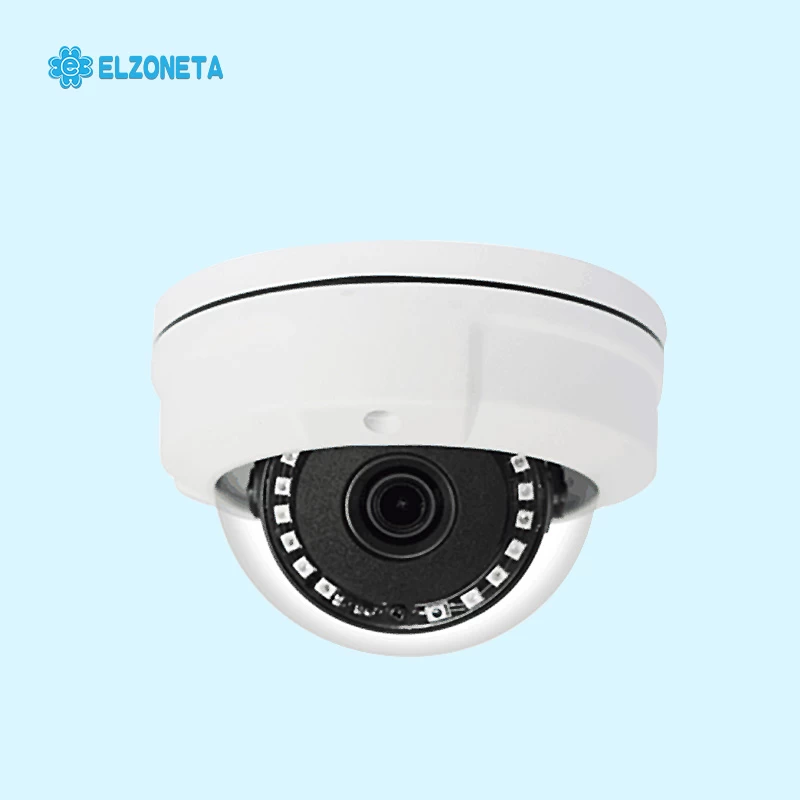

EC-AB04 Vandal Proof AHD Dome Camera
Features:
1.) Type: HD IR Vandal-proof Dome Camera
2.) Resolution: 1.0/2.0/3.0/4.0megapixel
3.) Lens: 3.6mm HD fixed lens
4.) IR Leds: 12pcs IR leds
5.) IR range: up to 20meter
6.) Material: Aluminum Alloy
7.) Color: White
8.) Product Guarantee: 2 years
Specification:
|
Camera |
||||
|
Model No. |
EC-AB04U |
EC-AB04S |
EC-AB04M |
EC-AB04 |
|
Image Sensor |
4.0MP Cmos Sensor |
2.0MP Cmos Sensor |
1.3MP Cmos Sensor |
1.0MP Cmos Sensor |
|
Effective Pixels (HxV) |
2592(H)*1520(V) |
1920(H)*1080(V) |
1280(H)*960(V) |
1280(H)*720(V) |
|
Signal System |
PAL / NTSC |
|||
|
Mini Illumination |
0.01lux(IR off) 0.00lux(IR on) |
0.02lux(IR off) 0.00lux(IR on) |
0.02lux(IR off) 0.00lux(IR on) |
0.05lux(IR off) 0.00lux(IR on) |
|
Lens |
3.6mm HD fixed lens |
|||
|
Lens Mount |
M12 |
|||
|
Day & Night |
ICR (IR cut filter with auto switch) |
|||
|
IR Leds |
￠5X36PCS |
|||
|
IR range |
up to 20meter |
|||
|
Angle Adjustment |
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
|||
|
AES |
PAL=1/50 ~1/100,000sec；NTSC=1/60 ~1/100,000sec |
|||
|
S/N Ratio |
> 48dB（Auto Gain Off） |
|||
|
4in1 Function |
||||
|
Output Model |
TVI/AHD/CVI/Analog is optional |
|||
|
OSD Menu |
OSD is optional |
OSD is optional |
OSD is optional |
OSD is optional |
|
WDR |
D-WDR |
D-WDR |
D-WDR |
D-WDR |
|
DNR |
3D-DNR |
3D-DNR |
3D-DNR |
3D-DNR |
|
General |
||||
|
Operating Condition |
-20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing) |
|||
|
Power Supply |
12 VDC±15% |
|||
|
IP Rate |
IP67 |
|||
|
Weight |
0.85 kg |
|||
|
Dimension |
140(L)*140(W)*107(H)mm |
|||
