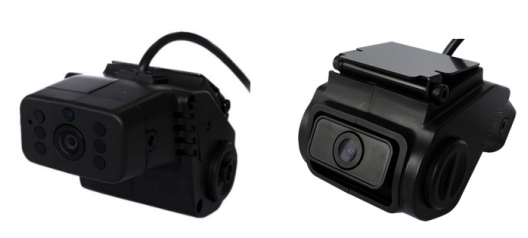

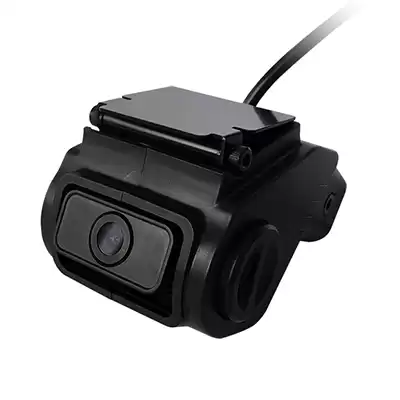

AHD Dual Camera 1080P/720P

High Quality AHD Dual Camera 1080P

Front & rear view: front view lens 2.8mm, angle: 110°

Rear lens 2.1mm, angle: 130°

Pixel: 2.0 MP & 1.0 MP optional

Shutter time: AUTO/ 1/50 (1/60)-1/100,000sec


Facebook Twitter Pinterest LinkedIn 分享

AHD Dual Camera 1080P/720P

High Quality AHD Dual Camera 1080PAHD Dual Camera 1080P/720P MDVR

Features
Plastic shell, without waterproof
Fixed lens (front view 2.8mm, rear view 2.1mm)
Built-in audio
12 pcsΦ6 IR lights
4P aviation connector
IR Range: 2-3 meters
IR-CUT: With IR-Cut
Min. Illumination: 0.01Lux/F1.2

Parameters
Image sensor: 1/2.7〞 CMOS AHD
Front & rear view: front view lens 2.8mm, angle: 110°
Rear lens 2.1mm, angle: 130°
Pixel: 2.0 MP & 1.0 MP optional
Shutter time: AUTO/ 1/50 (1/60)-1/100,000sec

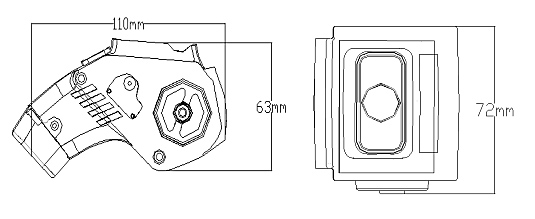

Dimension: L110xW72xH63 (mm)
Weight: 276g

Model TS-341C12-AHD
Imaging device 1/2.7〞 CMOS AHD
Lens Forward Lens Rear Lens
Video format PAL/NTSC
Resolution 1920（H)×1080（V）
Pixels 2.0M Pixels
Sync system External sync (infrared light control)
Minimum illumination 0.01Lux/F1.2
Video output 1.0vp-p, 75Ω
Electronic shutter AUTO/ 1/50（1/60）-1/100,000sec
AGC Auto
S/N >= 48dB
White balance Auto
BLC Auto
Focus 2.8mm 2.1mm
Lens angle 100° 120°
IR distance 2-3 meters
IR-CUT Yes
Audio Built-in
Electricity 150mA-230mA±10%(350mA is IR-cut)
Voltage DC 12V±10%
Working temperature －20°C~70°C , RH95％ MAX
Storage temperature －30°C~80°C，RH95％ MAX
G.W 160g without cables
