AHD Side View Waterproof IP67 Camera

720P 1080P AHD Camera Mobile DVR

Waterproof IP67 AHD Camera Mobile DVR 2.8MM

Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR

Frame rate: PAL (25 frames) / NTSC (30 frames) optional
Shutter Time: P: 1/50-1/100000sec, N: 1/60-1/100000sec

Facebook Twitter Pinterest LinkedIn 分享

Description

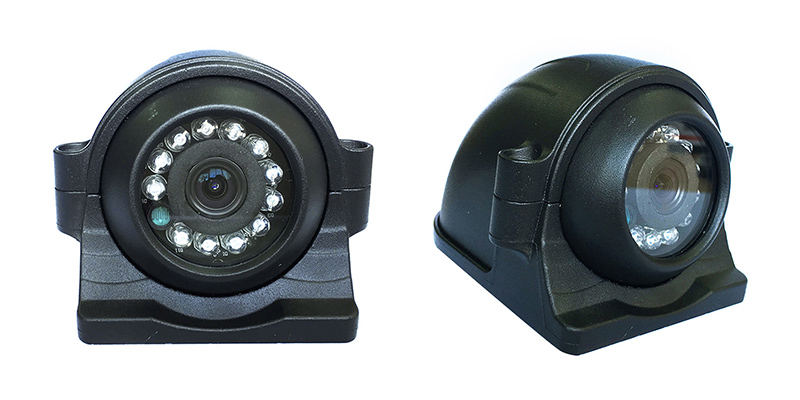

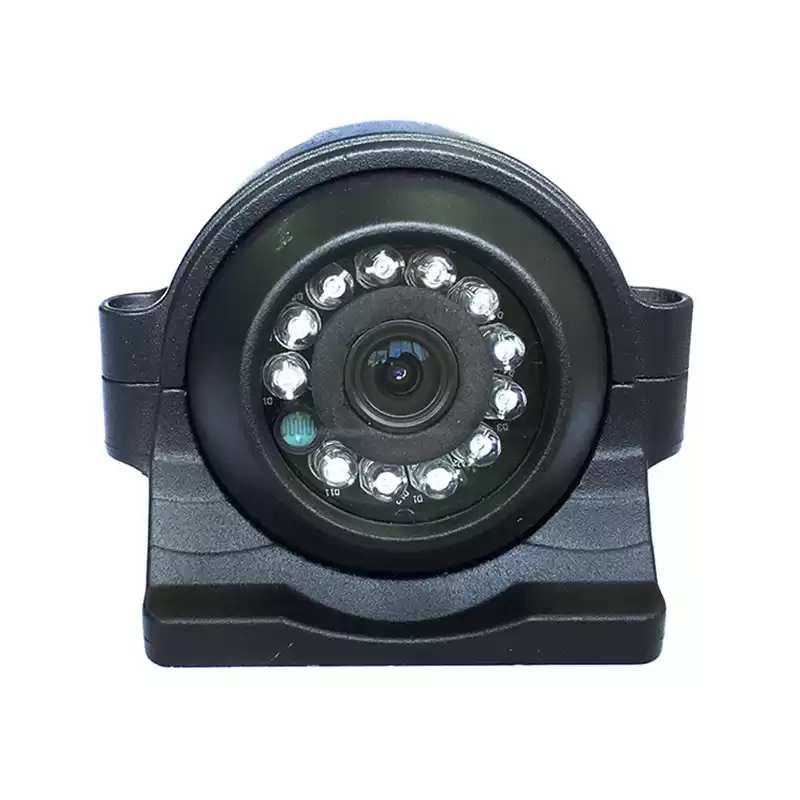

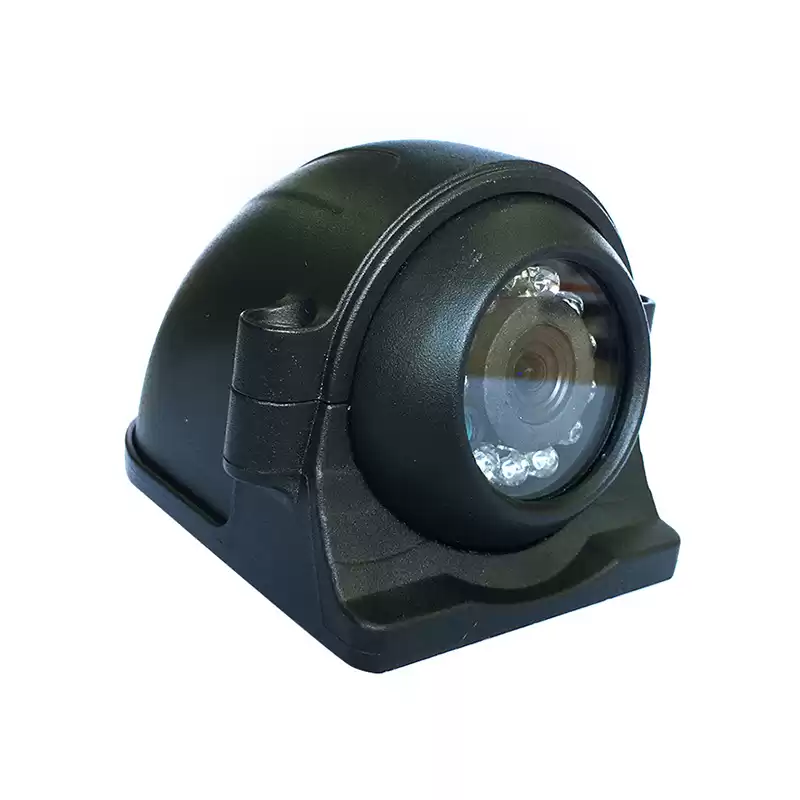

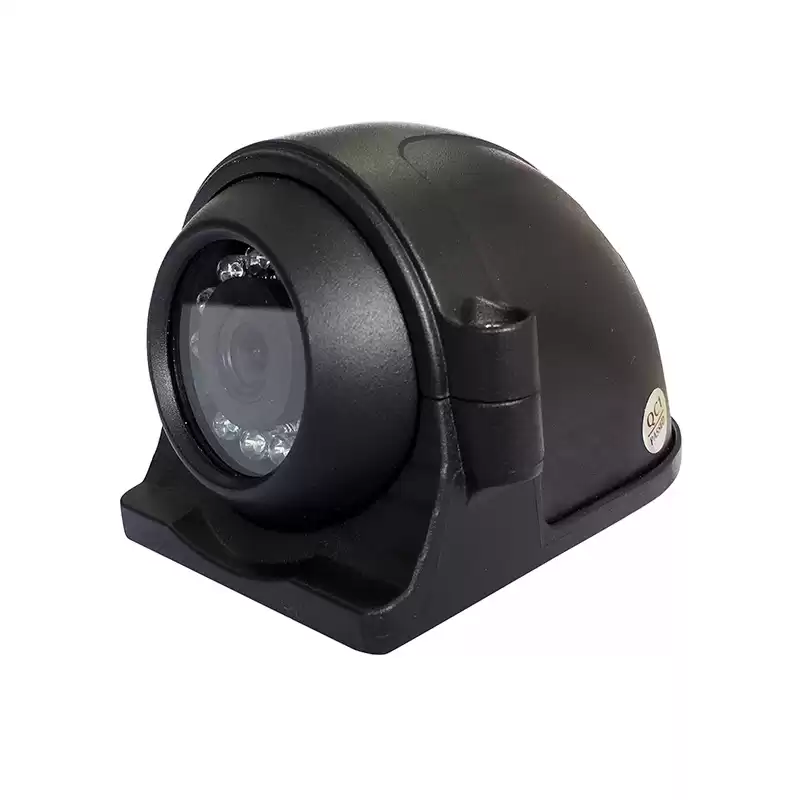

AHD Side View Waterproof IP67 Camera

Illustration

720P 1080P AHD Camera Mobile DVR IR Night View

Features

Metal shell,IP67 waterproof
Double glass design
24pcs LED
3.6mm-16mm Lens optional
Match with 3.6mm lens
Metal shell, waterproof, Indoor and outdoor
Infrared lighting automaticlly when illumination below 5 LUX

Parameters

Image sensor: COLOR 1/3" CMOS, 1/4" CMOS
Resolution: 720P/960P/1080P optional
Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Frame rate: PAL (25 frames) / NTSC (30 frames) optional
Shutter Time: P: 1/50-1/100000sec, N: 1/60-1/100000sec
Lens: HD, 2.8mm/3.6mm/6mm/8mm/12mm
Day and night : IR cut filter with auto switch
SNR: ≥52dB
Power supply: DC12V
Video cable length: 40cm
IR Range: 10 meters
Working current: <260mA
Operating Conditions: -20 °C ~ +70 °C

Technical Parameters

Item	Parameter
Sensor	JX-H65,1/4'',120W CMOS Sensor
Pixel Size	3.75um*3.75um
Lens type	4G
Length	3.6mm
Iris	F2.4
Lens Connector Type	M12*P0.5
FOV(Field of View)	D=112° H=92° V=51°
Image	Color
Resolution	default1280720P(1280960 max)
Output Signal	Analog HD
Video Format	default PAL
Frame Rate	25FPS
Power Voltage	VCC12V
Power Current	47--105mA(±10%)
Power Consumption	0.56--1.26W(±10%)
Waterproof Level	IP67
Work Temperature	-20°-- +60°
Stored Temperature	-25°-- +80°
Aviation Cable	0.57m
