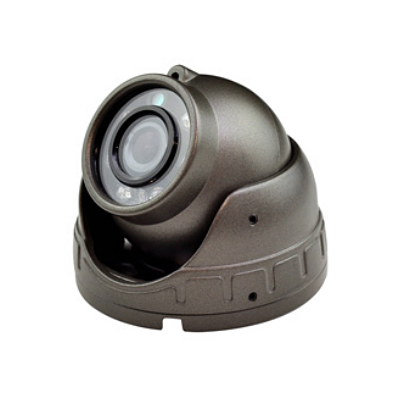

AHD vehicle inside camera 720P 1080P

Model

Items

TS-347C10-AHD

TS-347C12-AHD

Model name

AHD metal dome camera

Image sensor

COLOR 1/4"CMOS

COLOR 1/3"CMOS

Resolution

PAL/ NTSC:1280(H)×720(V)

PAL/ NTSC:1920(H)×1080(V)

Horizontal Resolution

color720P(black720P)

color1080P(black1080P)

Min. illumination

0.01 Lux @ (F1.2,AGC ON),0 LUX with IR

Signal system and Frames

PAL（25fps）/NTSC（30fps）optional

shutter speed

Auto expose,1/50S to 1/100000S

Lens

3MP HD 2.1~12 mm optional

FOV

Horizontal:0°~355°;vertical:0°~90°

Day and night mode

Dual ICR auto color/night

synchronization system

Inter-sync

Video output

1CH, Meet AHD standard. (75Ω/BNC and aviation connector optional )

SN

＞52dB

Audio

can built in mic

Color

Grey

Operating temperature and humidity

Temperature:-10℃~60℃, humidity: <90% (no condensation)

Power supply

DC12V±10%

Power consumption

＜5W

Video output cable length

40cm

Ingress protection

IP64, not waterproof

IR range

10 m

Selection guide

A：SONY CCD B：SHARP CDD C：CMOS

10：720P 12：1080P

Dimensions(mm)

product dimension:diameter D69xH57(mm) ，package dimension: 100*100*90mm

Net/Gross weight

160 g /200g
