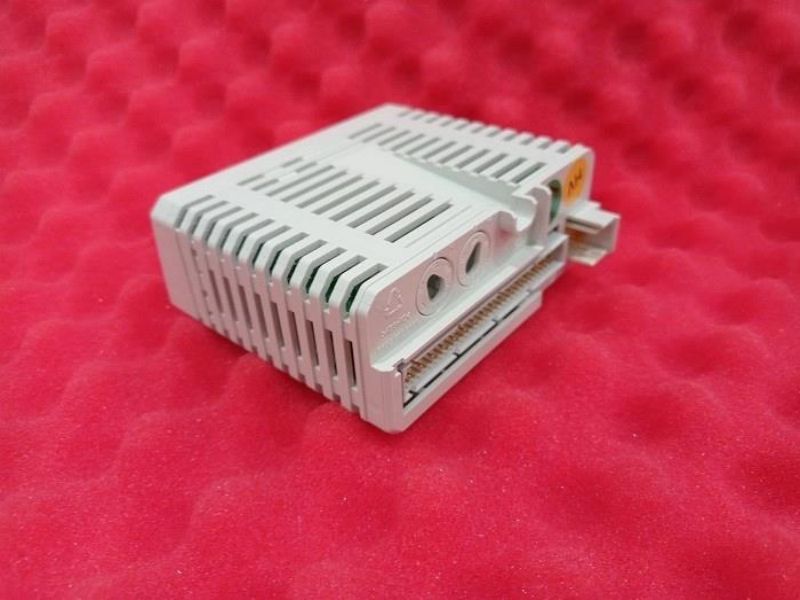

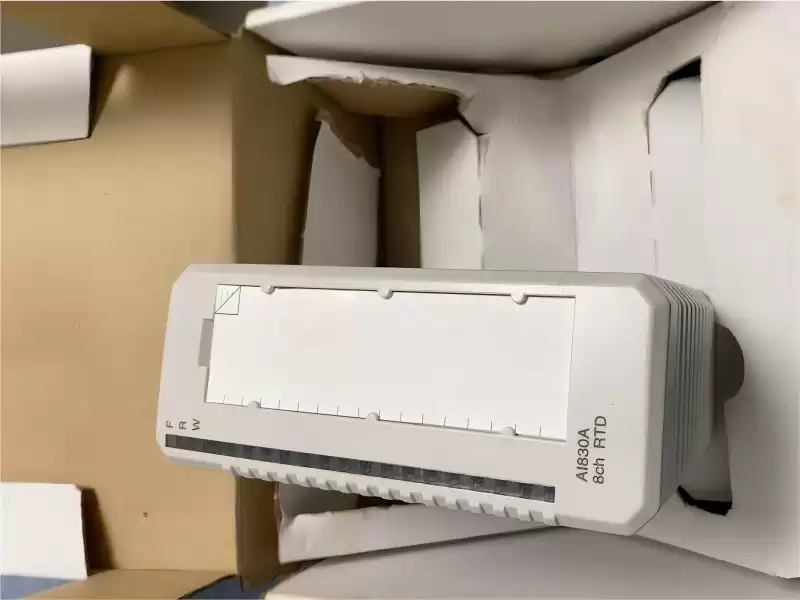

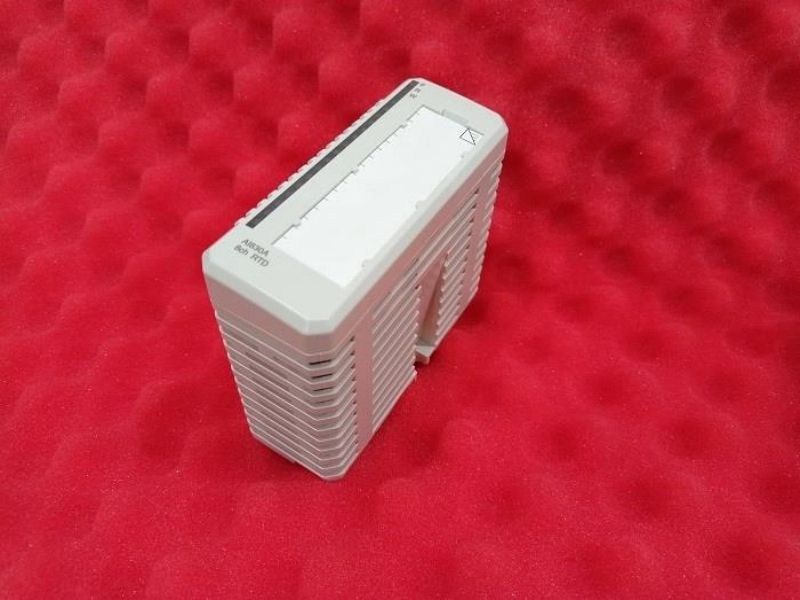

AI830A ABB RTD Unit 8 CH Analog Input Module PLC DCS 3BSE040662R1

Name: ABB Power Module Model: AI830A
Package: STANDARD Warranty: 12 Months
Gross Weight: 2.2 Lbs / 35.2 Oz / 1kg Packing Size: 7" X 7" X 4" (18 Cm X 18 Cm X 10 Cm)
Lead Time: 1~3 Days Quality: 100%Brand
Product Name: Programmable Logic Controller Stock: Available
High Light:

ABB RTD 8CH Analog Input Module

AI830A ABB RTD Unit Input Module

3BSE040662R1 ABB Module





AI830A ABB RTD Unit 8 CH Analog Input Module PLC DCS 3BSE040662R1



Product Details:

Brand Name ABB
Model AI830A
Product ID 3BSE040662R1
Condition New
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 7" x 7" x 4" (18 cm x 18 cm x 10 cm)
Country of Origin Estonia
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price Inquiry
Color Depends on material
Warranty 12 months
Lead time 5-8 work days
Courier partners DHL, UPS, TNT, FedEx and EMS



Additional Information:



Resolution See table in S800 Modules and Termination Units, 3BSE020924-xxx
Isolation Groupwise isolated from ground
Error Error dependent of the field cable resistance: Rerr = R* (0.005 + ∆R/100) Terr°C = Rerr / (R0 * TCR) Terr°F = Terr°C * 1.8
Temperature drift See table in S800 Modules and Termination Units, 3BSE020924-xxx
Update cycle time 150 + 95 * (number of active channels) ms
CMRR, 50Hz, 60Hz >120 dB (at 10Ω load)
NMRR, 50Hz, 60Hz >60 dB
Rated insulation voltage 50 V
Dielectric test voltage 500 V a.c.
Power dissipation 1.6 W
Current consumption +5 V Modulebus 70 mA
Current consumption +24 V Modulebus 50 mA
Current consumption +24 V external 0
Front LED’s F(ault), R(un), W(arning)
Supervision Open-circuit, short-circuit,
reference channel, internal power supply
Status indication of supervision Module Error, Module Warning, Channel error (8)
CE mark Yes
Electrical safety IEC 61131-2, UL 61010-1, UL 61010-2-201
Hazardous Location C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification ABS, BV, DNV-GL, LR
Protection rating IP20 according to IEC 60529
Corrosive atmosphere ISA-S71.04 G3
Climatic operating conditions 0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
Pollution degree Degree 2, IEC 60664-1
Mechanical operating conditions IEC/EN 61131-2
EMC EN 61000-6-4 and EN 61000-6-2
Overvoltage categories IEC/EN 60664-1, EN 50178
Equipment class Class I according to IEC 61140; (earth protected)
Max ambient temperature 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
RoHS compliance DIRECTIVE/2011/65/EU (EN 50581:2012)
WEEE compliance DIRECTIVE/2012/19/EU

The AI830/AI830A RTD Input Module has 8 channels for measurement of temperature with resistive elements (RTDs). With 3-wire connections. All the RTDs must be isolated from ground.

The AI830/AI830A can be used with Pt100, Cu10, Ni100, Ni120 or resistive sensors. Linearization and conversion of the temperature to Centigrade or Fahrenheit is performed on the module.

Every channel can be individually configured. The MainsFreq parameter is used to set mains frequency filter cycle time. This will give a notch filter at the frequency specified (50 Hz or 60 Hz).

Features and benefits

  • 8 channels for RTD (Pt100, Cu10, Ni100 and Ni120 and resistor) inputs
  • 3-wire connection to RTDs
  • 14 Bit resolution
  • Inputs are monitored for open-circuit, shortcircuit and has a input grounded sensor
