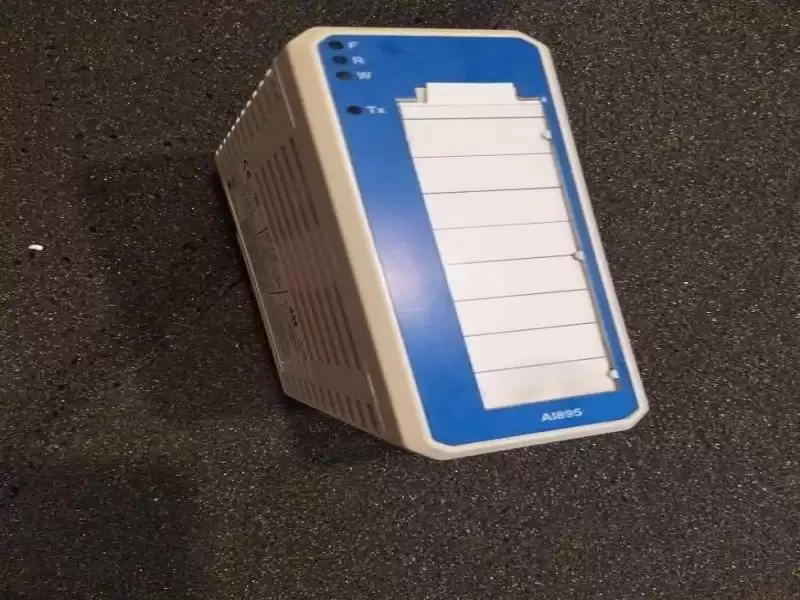

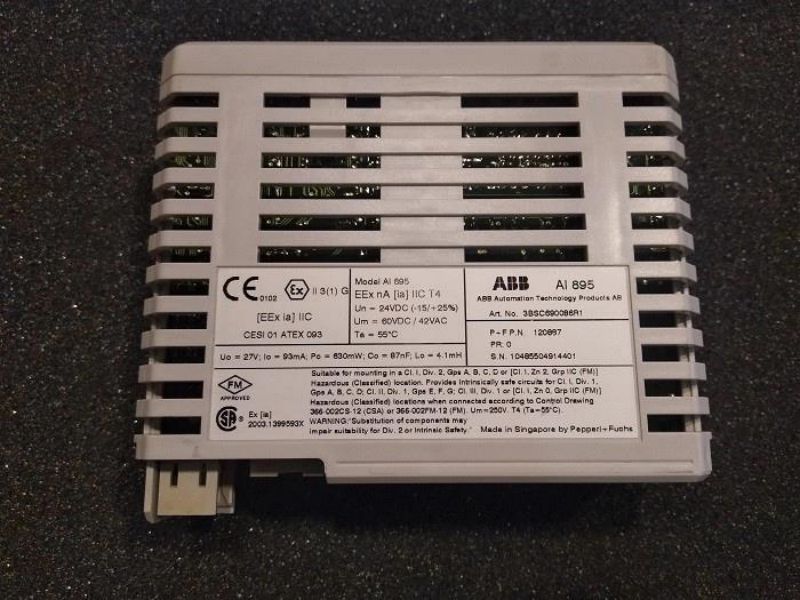

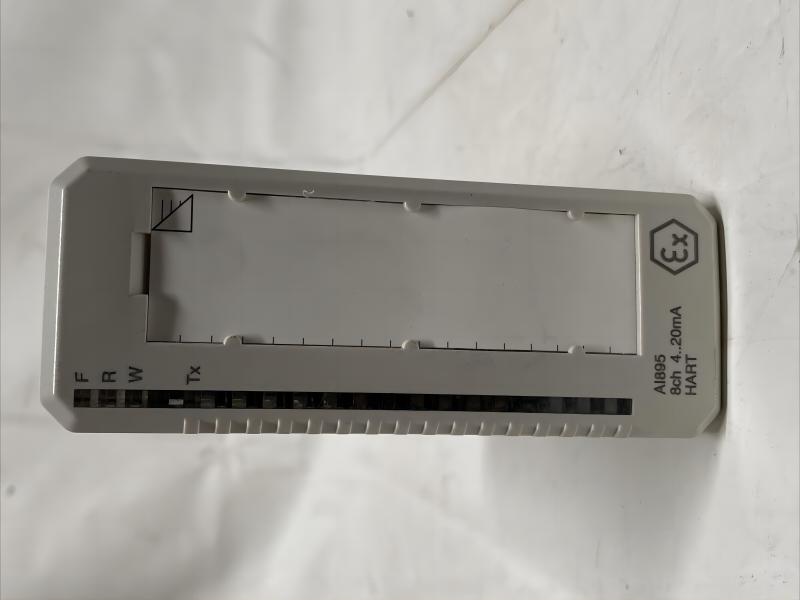

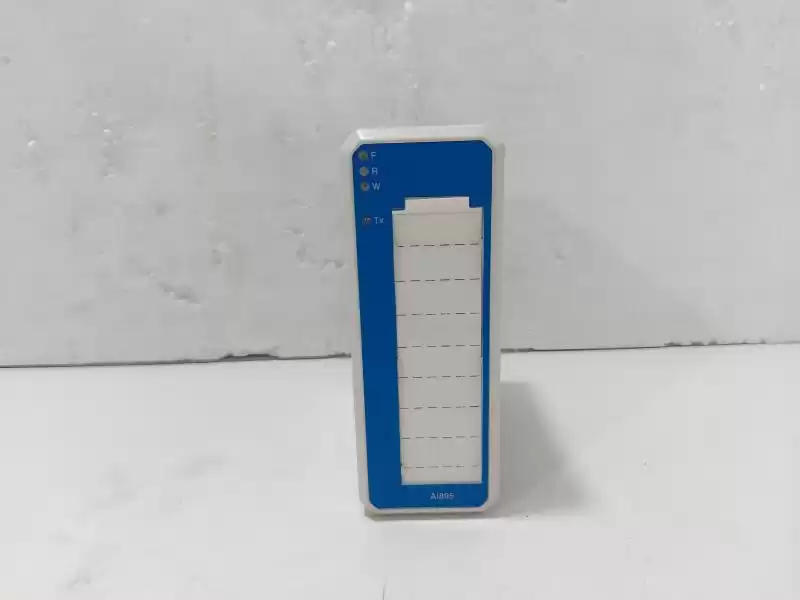

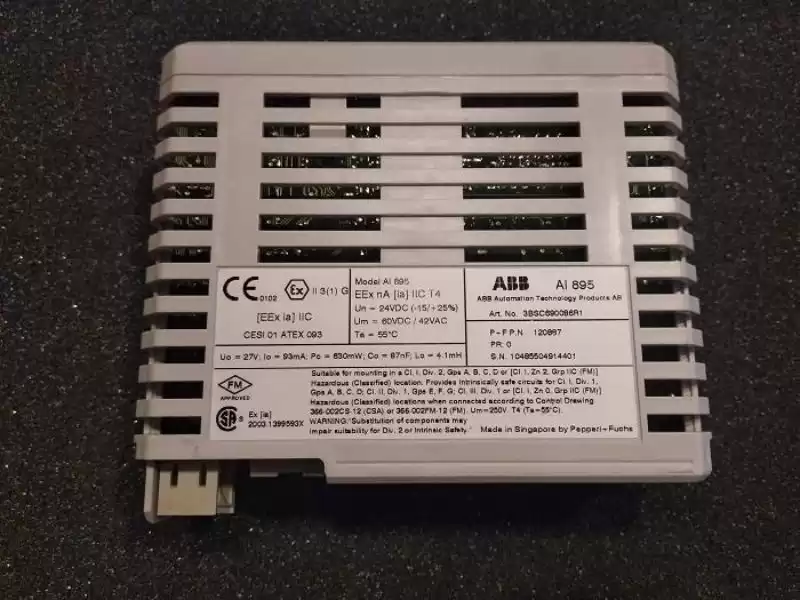

AI895 3BSC690086R1 ABB PLC Analog Input IS HART 8 ch S800 I/O

Name: ABB Power Module Model: AI895
Package: STANDARD Warranty: 12 Months
Gross Weight: 2.2 Lbs / 35.2 Oz / 1kg Packing Size: 7" X 7" X 4" (18 Cm X 18 Cm X 10 Cm)
Lead Time: 1~3 Days Quality: 100%Brand
Product Name: Programmable Logic Controller Stock: Available
High Light:

3BSC690086R1 ABB PLC

AI895 ABB PLC

8 Ch S800 I/O ABB Module





AI895 3BSC690086R1 ABB PLC Analog Input IS HART 8 ch S800 I/O



Product Details:

Brand Name ABB
Model AI895
Product ID 3BSC690086R1
Condition New
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 7" x 7" x 4" (18 cm x 18 cm x 10 cm)
Country of Origin Estonia
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price Inquiry
Color Depends on material
Warranty 12 months
Lead time 5-8 work days
Courier partners DHL, UPS, TNT, FedEx and EMS



Additional Information:

Resolution 12 bit
Isolation Groupwise isolated from ground
Under/over range 1.5 / 22 mA
Error Typ. 0.05%, Max. 0.1%
Temperature drift Typ. 100 ppm/°C
Input filter (rise time 0-90%) 20 ms
Current limiting Built in current limited transmitter power
CMRR, 50Hz, 60Hz >80 dB
NMRR, 50Hz, 60Hz >10 dB
Rated insulation voltage 50 V
Dielectric test voltage 500 V a.c.
Power dissipation 4.75 W
Current consumption +5 V Modulebus Typ. 130 mA
Current consumption +24 V external Typ. 270 mA, Max. <370 mA
Front LED’s F(ault), R(un), W(arning), Tx (HART communiation)
Supervision Internal process supply
CE mark Yes
Electrical safety IEC 61131-2, cFMus
Hazardous Location ATEX/IECEx Zone 2 with interface to Zone 0, cFMus C1, Div 2/Zone 2 with interface to C1, C2, C3 Div 1/Zone 0
Marine certification ABS, BV, DNV-GL, LR
Protection rating IP20 according to IEC 60529
Corrosive atmosphere ISA-S71.04 G3
Climatic operating conditions 0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
Pollution degree Degree 2, IEC 60664-1
Mechanical operating conditions IEC/EN 61131-2
EMC EN 61000-6-4, 61000-6-2
Overvoltage categories IEC/EN 60664-1, EN 50178
Equipment class Class I according to IEC 61140; (earth protected)
Max ambient temperature 55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
RoHS compliance DIRECTIVE/2011/65/EU (EN 50581:2012)
WEEE compliance DIRECTIVE/2012/19/EU

The AI895 Analog Input Module can directly interface 2-wire transmitters and with a particular connection it can also interface 4-wire transmitters without losing the HART capability. The AI895 Analog Input Module has 8 channels. The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel can power and monitor a two-wire process transmitter and HART communication. The input voltage drop of the current input is typically 3 V, PTC included. The transmitter supply for each channel is able to provide at least 15 V at a 20 mA loop current to power Ex certified process transmitters and is limited to 23 mA in overload conditions.

TU890 and TU891 Compact MTU can be used with this module and it enables two wire connection to the process devices without additional terminals. TU890 for Ex applications and TU891 for non Ex applications.





Features and benefits

• 8 channels for 4...20 mA, single ended unipolar inputs.

• HART communication.

• 1 group of 8 channels isolated from ground.

• Power and monitor for Ex certified two-wire transmitters.

• Non energy-storing analog inputs for externally powered sources.
