Technical features：
|
|
|
|
|
|
|
|
|
|
Industry leading
|
|
High reliability
|
|
Highly compatible with UPS
|
|
AM 12-9 have maximum 36Watt @15mins , AM 12-12 & AM 12-18 have 55Watt @ 15mins & 88Watt @ 15mins power output respectively.
|
|
Using special high tin alloys having lowest calcium levels and highest tin levels in the industry-minimizing grid growth, reducing gassing & extending battery life.
|
|
Specially designed & manufactured to save installtion space while providing full & reliable power for all kinds of UPS
|
|
|
|
|
|
|
|
|
|
|
Low self-discharge rate
|
|
Complete protection
|
|
Long service life
|
Less than 3% per month discharge at 20°C (68°F)
|
|
No matter what the situation, a trustworthy UPS battery guarantees your devices stay powered through anything.
|
|
5~8 years design life @ 20°C(68°F) ambient temperature
|
|
|
|
|
|
|
|
|
|
|
Wide operating temperature range
|
|
Long warranty
|
|
Advanced technology
|
Long lasting high performance in high and low temperatures {-40°C(-40°F) ~ 70°C (-158°F )}
|
|
2 years warranty time which is 2 times higher than the other batteries in market.
|
|
AGM technology for up to 99% efficient gas recombination and freedom from electrolyte maintenance.
|
|
|
|
|
|

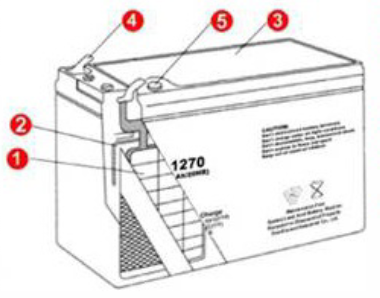

Internal structure：
|
① Plates: Calcium / tin lead alloy,optimized for high corrosion resistance;
② Separator: Highly porous glass micro-fiber separator, optimized for low internal resistance;
③ Standard housing: Reinforced ABS container and cover;
④ Terminals: Faston no.187&250, silver plated copper female insert, lead/silver plated copper flag terminal;
⑤ Valve: Release gas in case of excess pressure and protects the cell against atmosphere.
|
Applications
• Uninterrupted power supplies；• Security & fire alarm systems；• Laboratory & test equipment；• Monitoring equipment；
• Telecom equipment；• Emergency lighting；• Power tools；• Medical equipment; • Consumer electronics；• Portable equipment；• Toys and hobbies；• Marine instruments

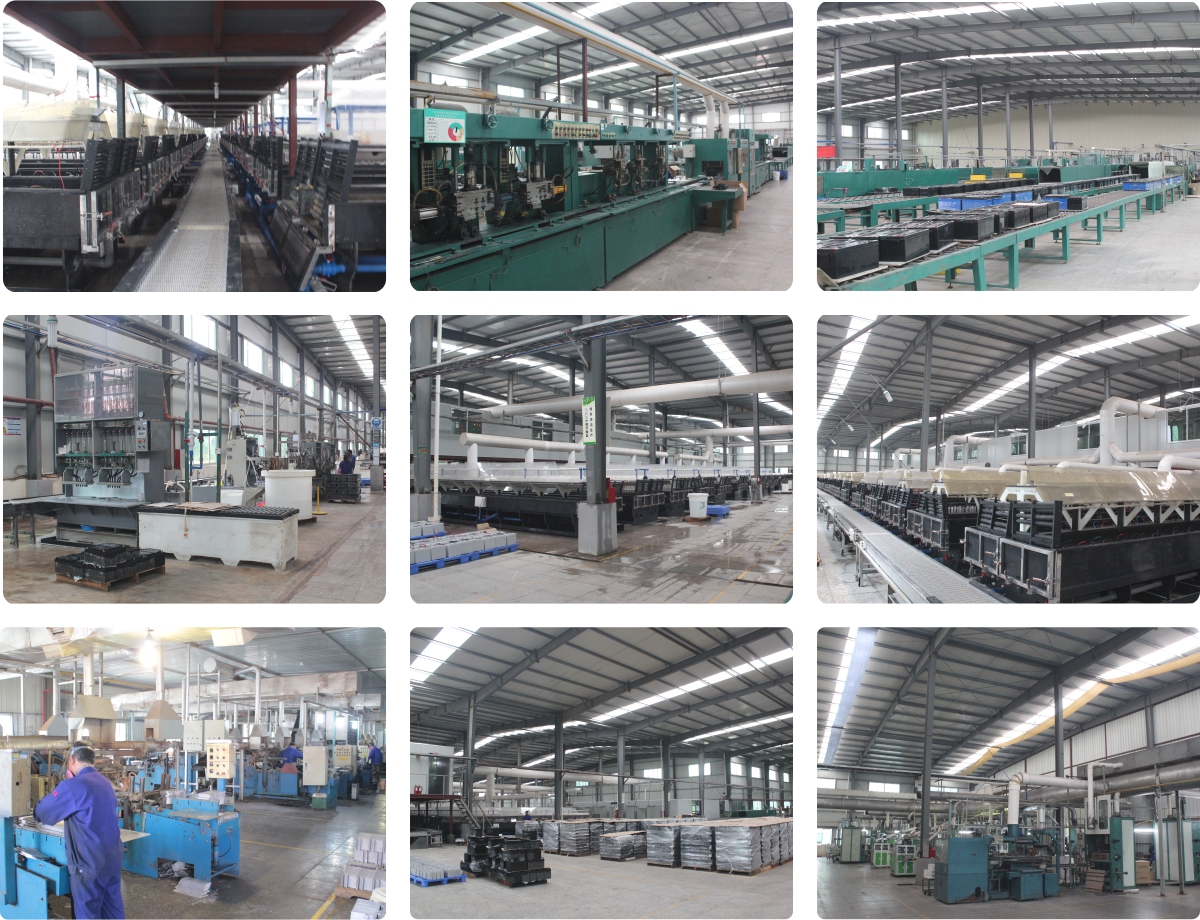

Factory
