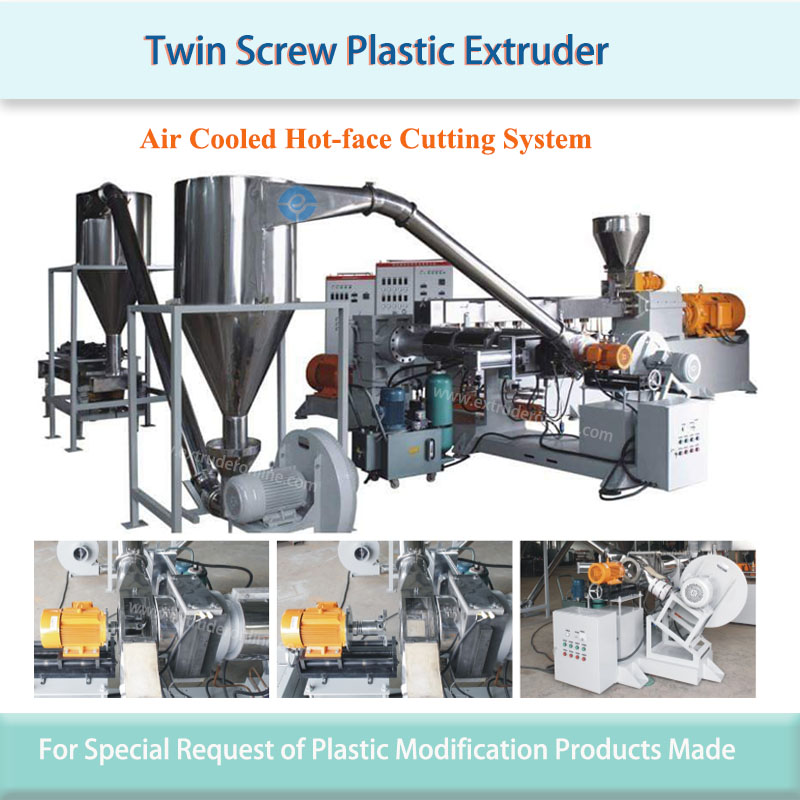

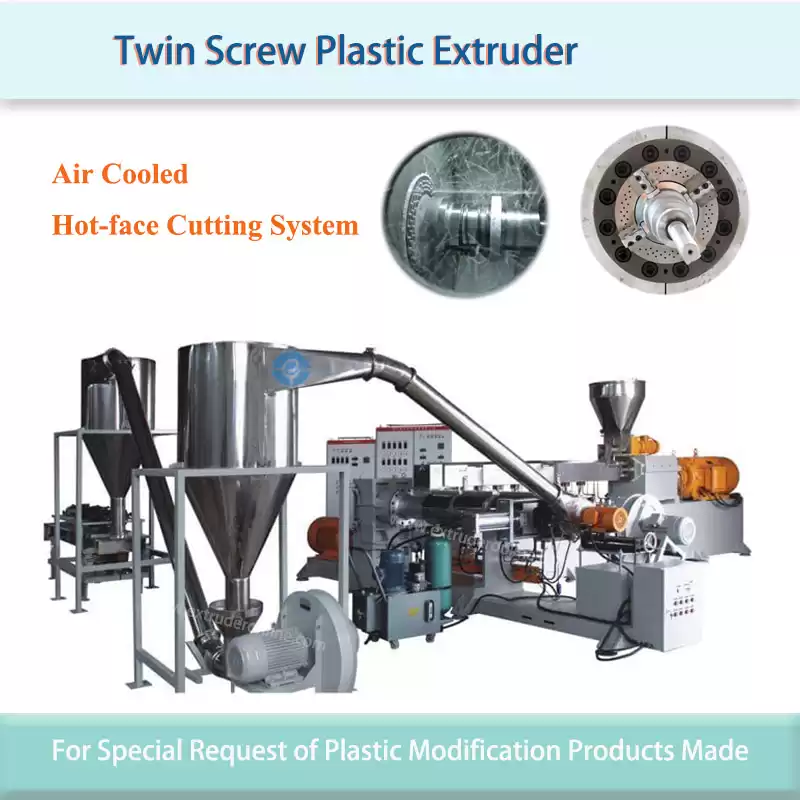

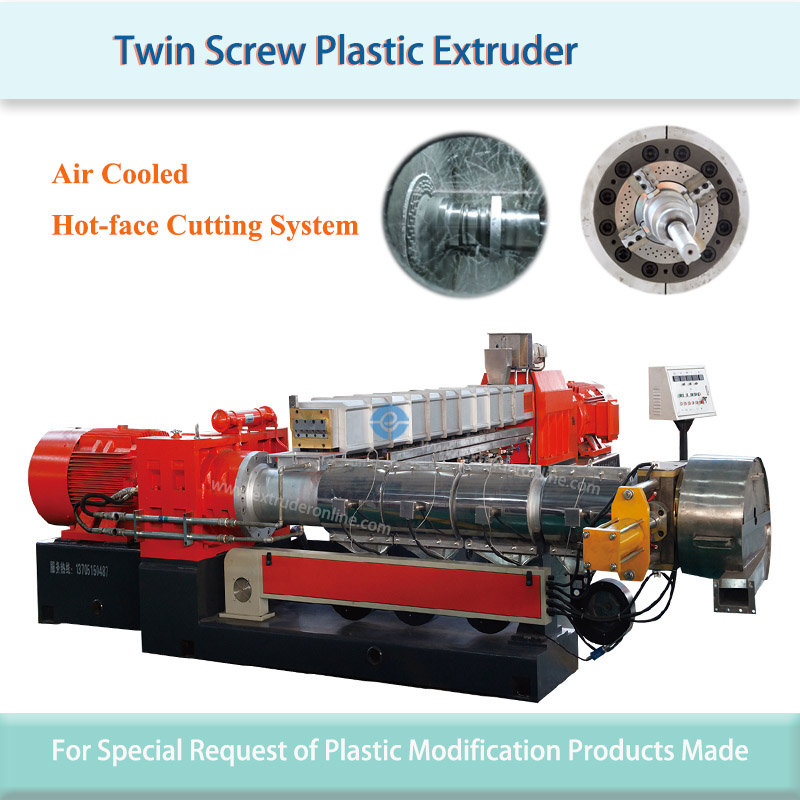

AIR COOLED HOT FACE CUTTING SYSTEM COMPOUNDING EXTRUDER
HS-CODE: 8477.8090
Air cooling hot face cutting system plastic extruder is for the plastic raw material which is not very sticky and the clients want good shape of the granules, and sometimes the granules can not use water cooling method, as the granules maybe suck the water andwill affect theperformance of product, for that purpose, we adopt this cut method, like CaCo3 filler, BaSO4 filler and so on.
Single screw extruder as equipped less poles , low speed and high torque motor, so such machine line can make special request products, like, pipe, sheet, recycle material regranules and Etc..
such equipments have two kinds matches to meet the customers' request, single stage or both two stages of single screw extruders to make pipes, sheets, panels, film casting and so on.
| SJ SERIES SINGLE SCREW EXTRUDER PARAMETER |
| Model |
Screw Dia.
Mm |
L/D |
Motor Power
KW |
screen change |
Output
Kgs/h |
| SJ-65 |
Φ65 |
20-32 |
30 |
Manual |
50-100 |
| SJ-90 |
Φ90 |
20-32 |
45 |
Manual/Hydraulic |
150-300 |
| SJ-100 |
Φ100 |
20-32 |
45/55 |
Manual/Hydraulic |
150-300 |
| SJ-120 |
Φ120 |
20-32 |
55/75 |
Manual/Hydraulic |
150-400 |
| SJ-150 |
Φ150 |
20-32 |
75/90 |
Hydraulic |
200-500 |
| SJ-170 |
Φ170 |
20-32 |
90/110 |
Hydraulic |
250-550 |
| SJ-180 |
Φ180 |
20-32 |
90/132 |
Hydraulic |
300-600 |
| SJ-200 |
Φ200 |
20-32 |
160/280 |
Hydraulic |
500-1000 |
