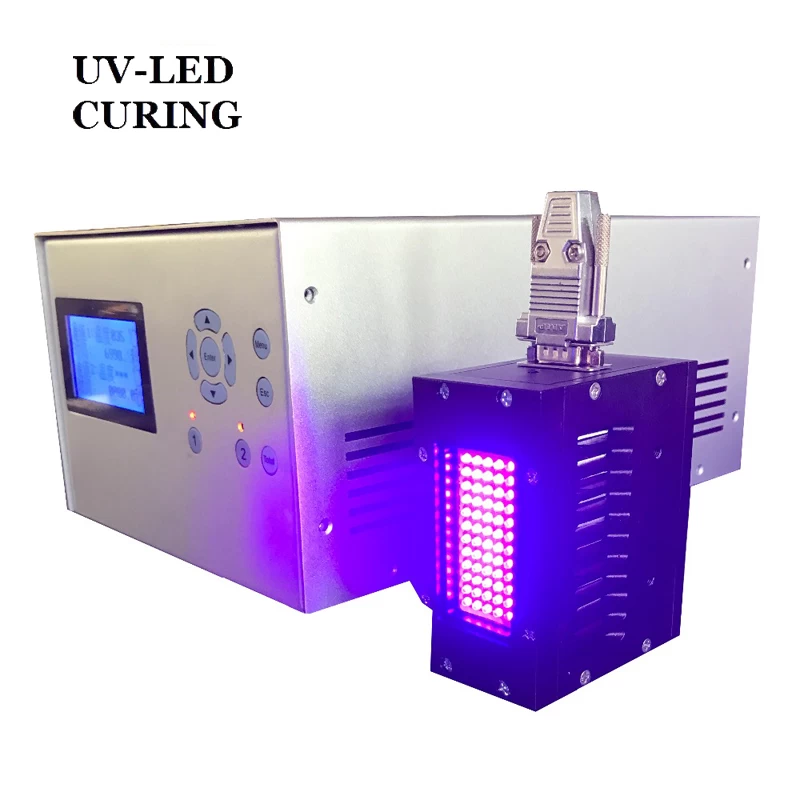

Automatic LED UV Curing Equipment Curing UV Adhesive contain two parts: Controller and Irradiation Head. So it need to be made up high quality and good facility. But, our company did it.
Product Parameters of High Power LED UV Curing System Printing Machine :
|
Type
|
UV LED
|
Model Number
|
SZUV-II
|
|
Chip Material
|
AlGaInP
|
Emitting Color
|
Blue
|
|
Luminous Intensity
|
6w /cm2
|
Luminous Flux(lm)
|
30-40lm
|
|
Optical Attenuation(%)
|
10
|
Power
|
0.1W
|
|
Power Dissipation
|
200
|
Viewing Angle(°)
|
140
|
|
Color Rendering Index(Ra)
|
12
|
Wavelength
|
365 - 405nm
|
|
Operating Temperature(℃)
|
10 - 50
|
Storage Temperature(℃)
|
10 - 50
|
|
Place of Origin
|
Guangdong, China (Mainland)
|
Brand Name
|
UV-LED CURING
|
|
Certification
|
CE, RoHS
|
Wavelength
|
365nm/375nm/385nm/395nm/405nm/415nm
|
|
Technical Data of Air Cooling LED Ultraviolet Curing Machine Controller：
|
|
Type
|
XYUV - Ⅱ
|
|
Channel
|
1
|
|
The size of controller
|
L304*W254*H135mm
|
|
Terminal I/O
|
Input
|
Pedal switch & serial RS-232 communication signals
|
|
Output
|
Serial RS-232 communication signals
|
|
Cooling method of controller
|
Air cooling
|
|
Power supply voltage
|
AC100~240V±10%(50/60HZ)
|
|
Operation mode
|
Touch Panel
|
|
Ambient temperature and humidity
|
Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH
|
|
Dimming/Exposure control
|
Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)
|
|
Setting operation
|
Using the operating switch is set, Power key parameter switch, RS-232
|
|
External Control
|
External input
|
Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch
|
|
External output
|
REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)
|
|

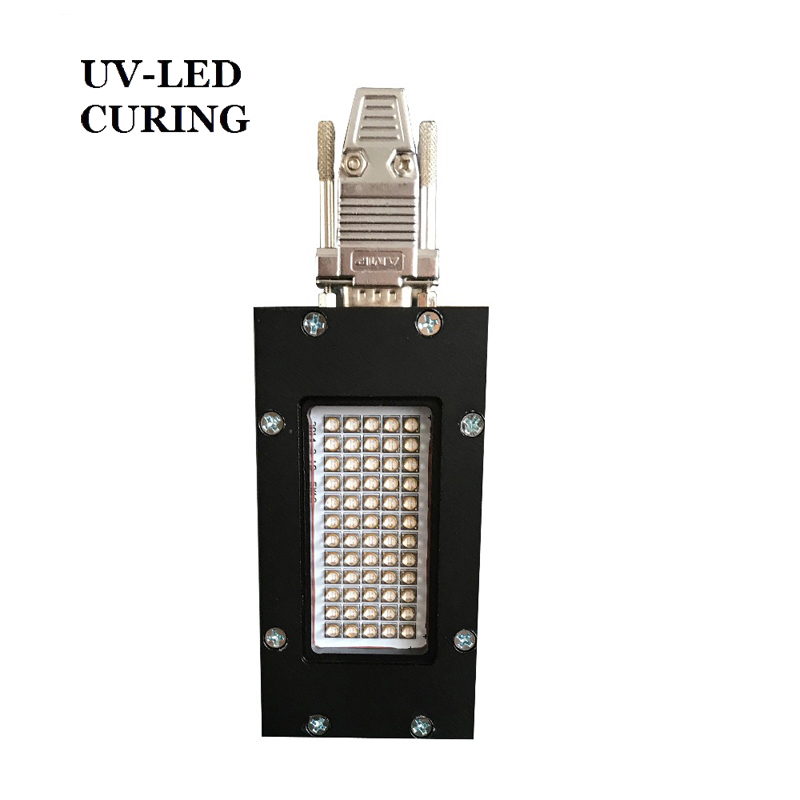

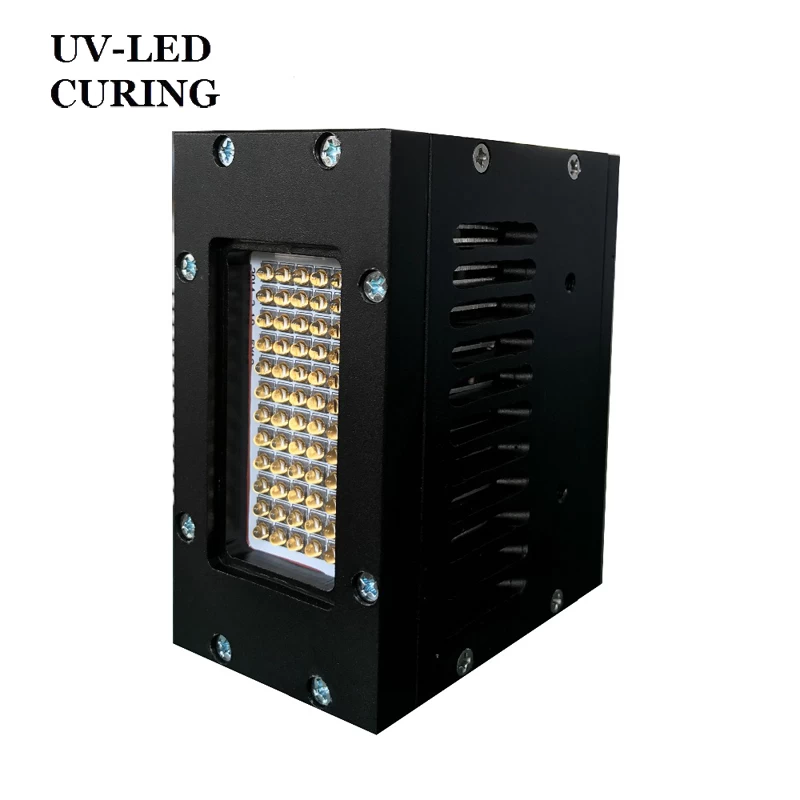

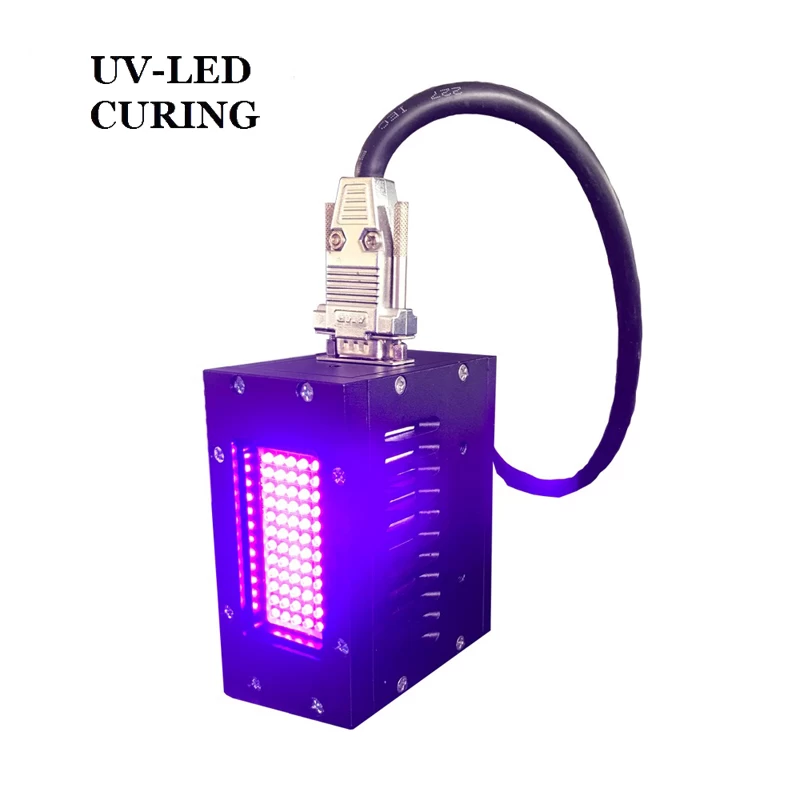

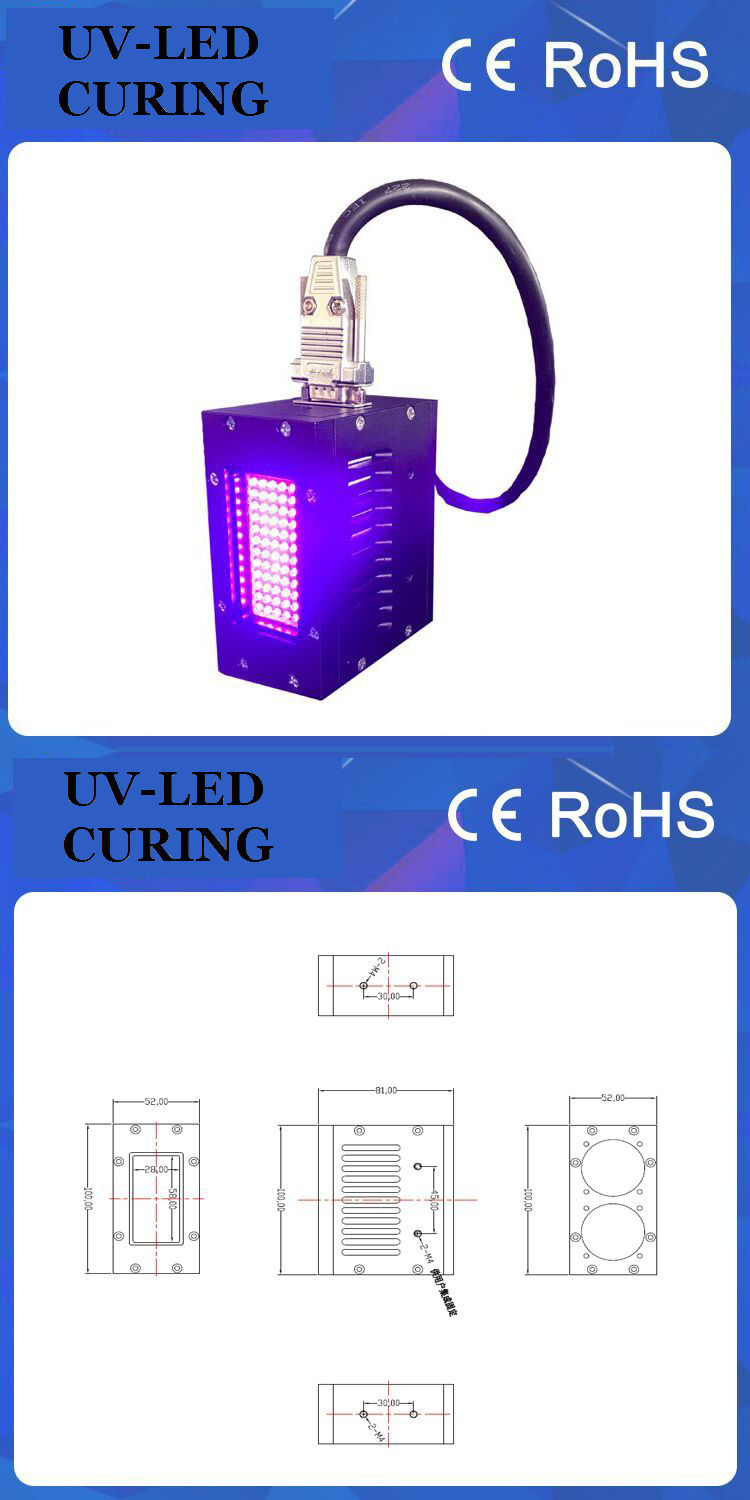

Technical data of Low Cost LED UV Curing Lamp for UV Glue :
|
|
Product Model
|
Emitting Window Size
|
Wavelength
|
Cooling Method
|
Peak Irradiation
|
Irradiation Distance
|
|
UV-LED CURING
S60-25*60
|
25*60mm
|
395nm
|
Air Cooling
|
6000mw/cm2
|
10-20mm
|
