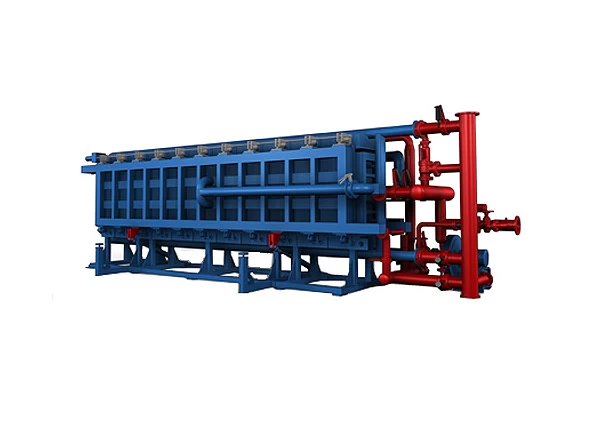

Air cooling type EPS block molding machine
Features
1. Touch Screen Panel –MCGS ,ISO STANDARD, MADE IN CHINA
2. PLC System –LG,SOUTH KOREA
3. Pressure Gauges – FROM TAIWAN
4. Butter Fly Valves – ISO STANDARD ,CHINA
5. With material level sensor to control material hopper. so that the machine can fill automatically.(Optional )
6 Block move out conveyer and weighing scale
7 Heatingrelay--- French schneider
8 Intermediate relay--- Omron Japan
9. Hopper with level senor
10. All frame are done by heat treatment for less deform
11. All machine are done by sand -blasting treatment for lasting painting
12.Teflon coating for the aluminum board .
13.Unique design of piping layout, combination of steam inlets ensures sufficient, even, stable steam pressure, thus resulting in shorter cycle time.
14. The new developed hydraulic drive concept ensures the opening and closing of the moulding machine in a total and even way, fast, strong, and energy saving.
15. Highly efficient material filling system, faster and sufficient.
16. Low moisture contents, better energy saving, shorted cycle time, perfect stabilization of performance.
17. Modern communication interface/Machine control.
18. Multiple safety protection.19.The mold cavity surface is coated with Teflon, ensuring easy de-mold and good finish of the block.
Technical data：
|
Subjects
|
Unit
|
HS-ⅢC-2000
|
HS-ⅢC-3000
|
HS-ⅢC-4000
|
HS-ⅢC-6000
|
HS-Ⅲ
C-8000
|
|
Mould size
|
mm
|
2040×1030×
520
|
3050×1240×
640
|
4070×1240×
640
|
6110×1240×
640
|
8120×1240×
640
|
|
Product size
|
mm
|
2000×1000×
500
|
3000×1200×
600
|
4000×1200×
600
|
6000×1200×
600
|
8000×1200×
600
|
|
Steam
|
Inlet size
|
mm
|
φ100
|
φ100
|
φ150
|
φ150
|
φ150
|
|
Consumption
|
Kg/
cycle
|
20-30
|
30-40
|
40-55
|
50-70
|
60-90
|
|
Inlet pressure
|
Mpa
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
|
Compressed air
|
Inlet size
|
mm
|
φ40
|
φ40
|
φ50
|
φ50
|
φ50
|
|
Consumption
|
Kg/
cycle
|
1-1.5
|
1.5-1.8
|
1.8-2
|
2-2.3
|
2.2-2.5
|
|
Inlet pressure
|
Mpa
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
|
Injector
|
Entry number
|
pc
|
4
|
6
|
8
|
12
|
16
|
|
Entry size
|
mm
|
60
|
60
|
60
|
60
|
60
|
|
Drainage size
|
|
φ80
|
φ80
|
φ100
|
φ100
|
φ100
|
|
Main drainage size
|
|
φ150
|
φ150
|
φ200
|
φ200
|
φ200
|
|
Cycle time
|
15g/L
|
Min/ cycle
|
6
|
7
|
8
|
9
|
9
|
|
Blower power
|
KW
|
4
|
4
|
5.5
|
7.5
|
11
|
|
Power
|
Capacity
|
KW
|
9.5
|
9.5
|
13
|
13
|
13
|
|
Consumption
|
KW/h
|
5
|
5
|
6.5
|
6.5
|
6.5
|
|
Overall dimension
|
mm
|
4300×2800×
2400
|
5300×2800×
2400
|
6800×2800×
2600
|
8800×2800×
2600
|
11000×2800×
2600
|
|
Weight
|
Ton
|
7
|
8.5
|
9.8
|
11.5
|
14.5
|
Note: this information is for reference only, further details to be confirmed with the company.
