Air Driven Pneumatic PCB Separator Machine

Air Driven Pneumatic PCB Separator Machine With Less Stress

The Pneumatic PCB Separator is suitable for cutting PCB board, aluminum substrate, copper PCB and ceramic PCB. It is especially suitable for cutting precision SMD PCBA or thin boards, so that sensitive SMD components and capacitors are not affected by stress, and the potential quality risk of products is minimized. This ;Pneumatic PCB Separator is widely used in automobile, power supply, computer, household appliances, mobile phone, connector, led and other industries.

Pneumatic PCB Separator Features:

1. Pneumatic drivenPCB separator, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.

2. Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.

3. Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.

4. Cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.

5. Blades can be re-sharpened

6. Cutting stress is less than 500 uE.

;

Pneumatic PCB Separator ;Specification:

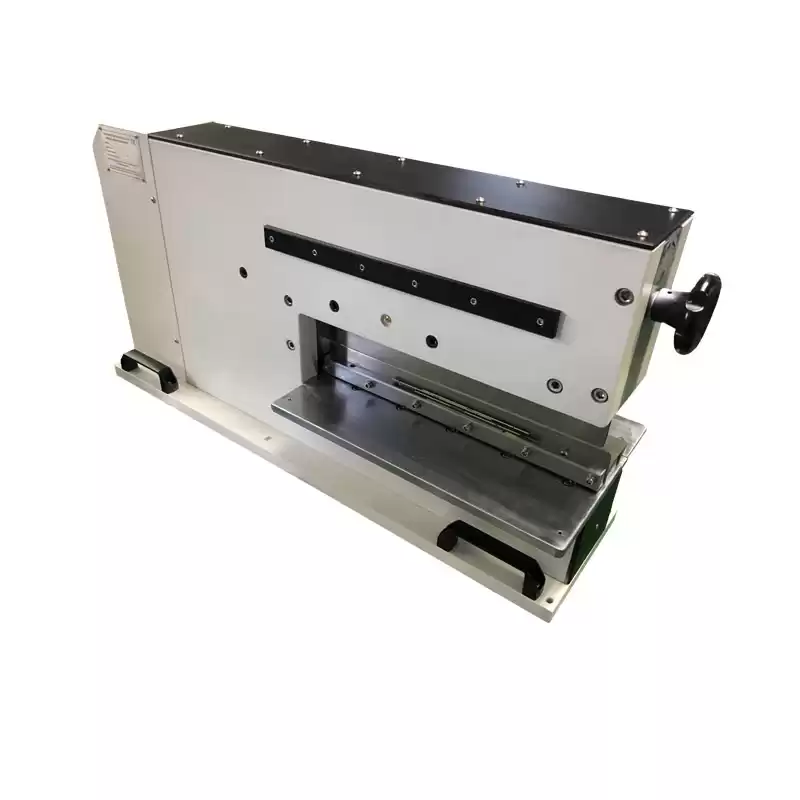

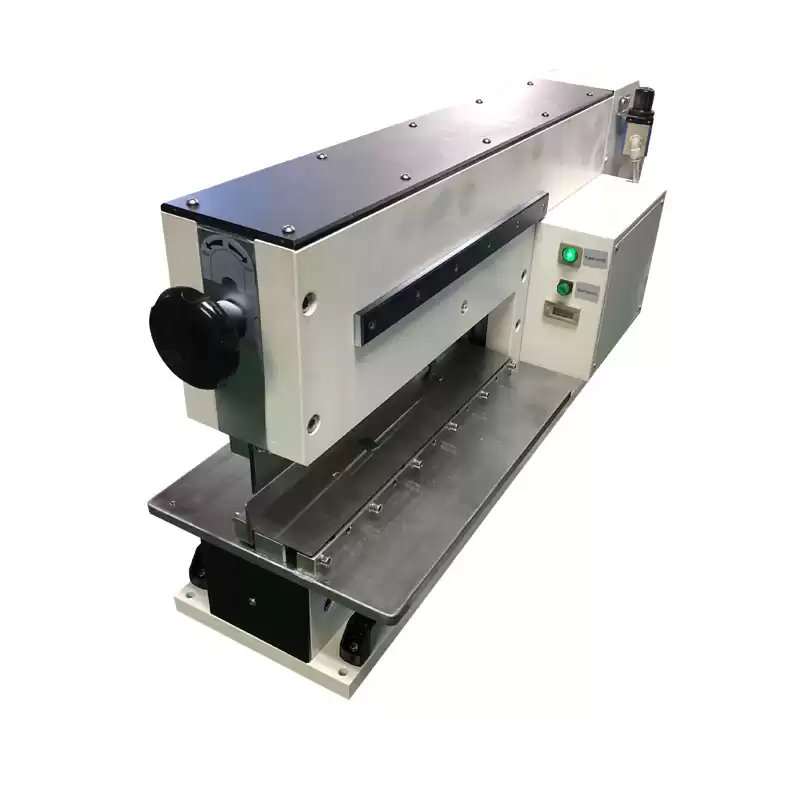

Pneumatic PCB Separator Details:

1. Two linear blade design. Lower cutting stress, meet strict requirements for precise boards less than 300 ustrian.

2. Max 2mm blade clearance, ensure that opeartor fingers cannot insert if for safe production. And it is easy to adjust blade clearance by the knob.

3. Noise and dust free. Counter function shows cutting times to remind checking blade sharpness.

4. Blades can be re-sharpened for 2-3 times.

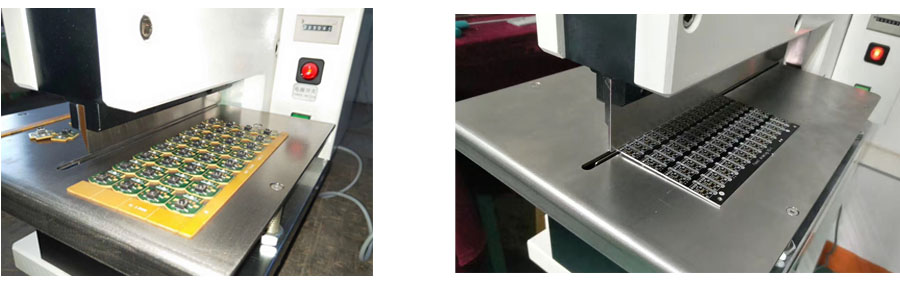

Pneumatic PCB Separator Applications:

;

Our Certificate:

Company Profile:

2008, Dongguan factory established, and start producing standard v-cut PCB separators and hot bar soldering machines.

2010, Our products are widely sold in local market.

2012, Start producing customized v-cut depaneling and PCB router.

2014, ;Expand our sales team for providing better service to more customers.

2015, Start manufacturing laser depaneling machines.

2017, Start manufacturing ;soldering robot and screwdriver machines.

2018, HK company established.
2019, Huizhou factory established, due to expansion.

2020, Business expansion again, products covering PCB depaneling, PCB soldering, screwdriver system, etc. ;

2021, Our machines cover all Chinese market and also popular in America, Europe, South Asia, East Asia, etc.

Our Service:

1. Guarantee for 12 months.

2. Maintenance for whole life.

3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.

4. 24 ;hours x 7days online ;service, ;free ;technical ;support.

5. Machine ;has ;been tested before ;delivery.

6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.

7. Oversea on-site installation and trainning is available.

8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
