Lighter weight, Lower roof load,Higher eficiency, lower shipping cost!

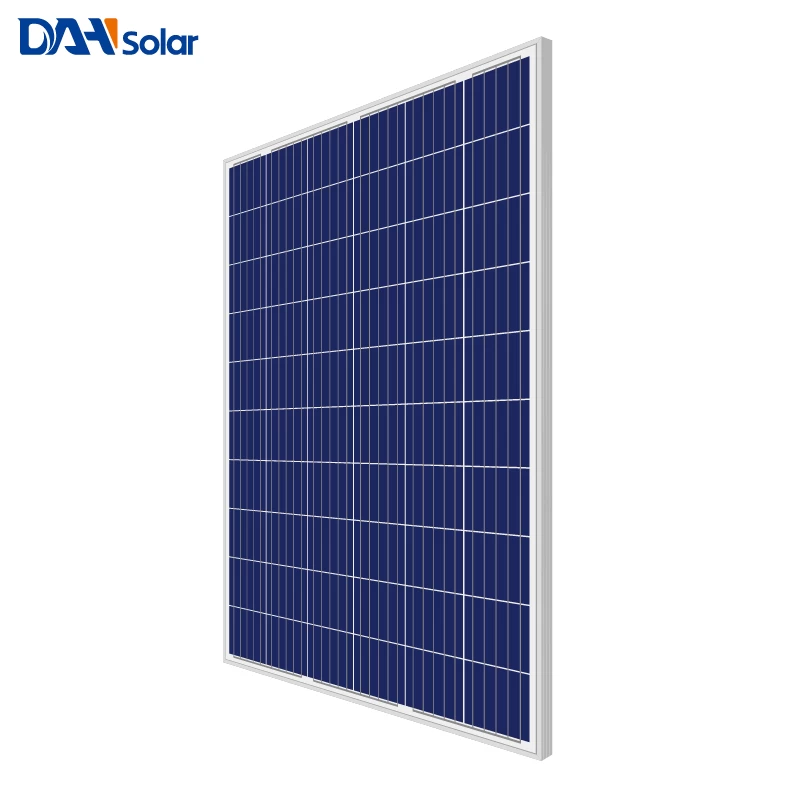

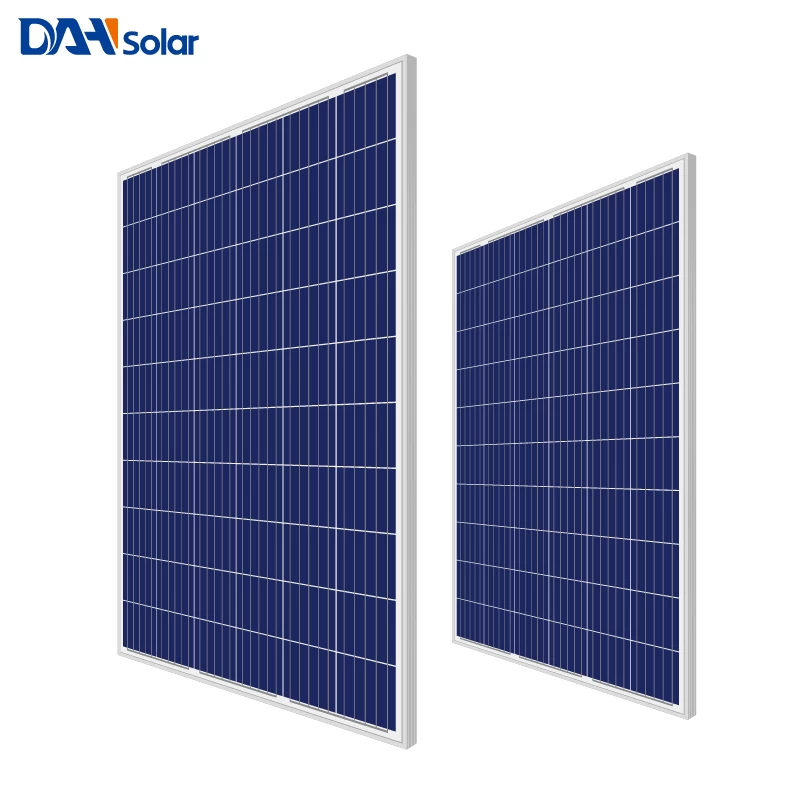

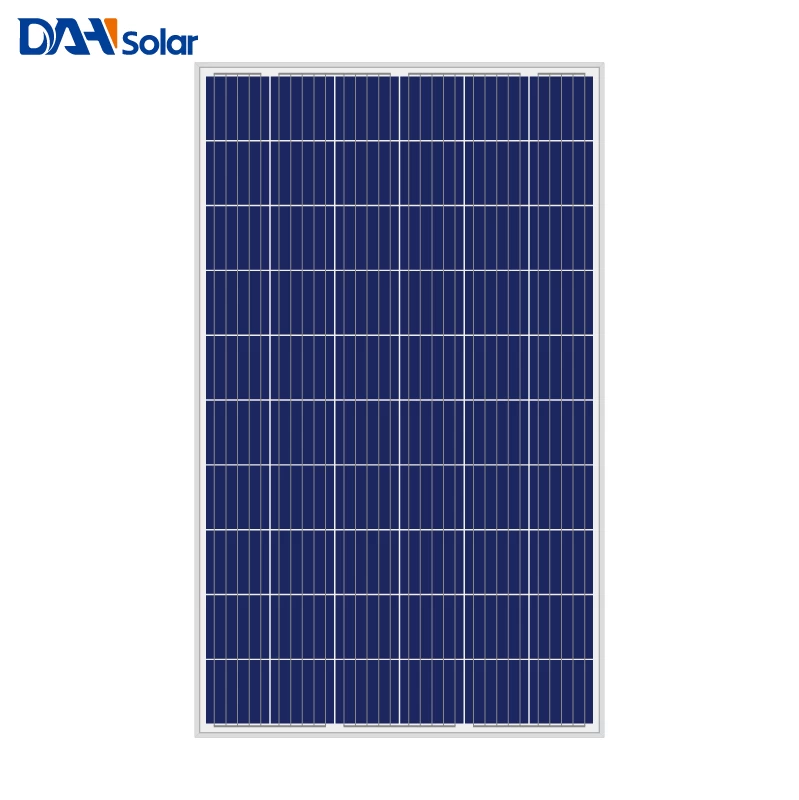

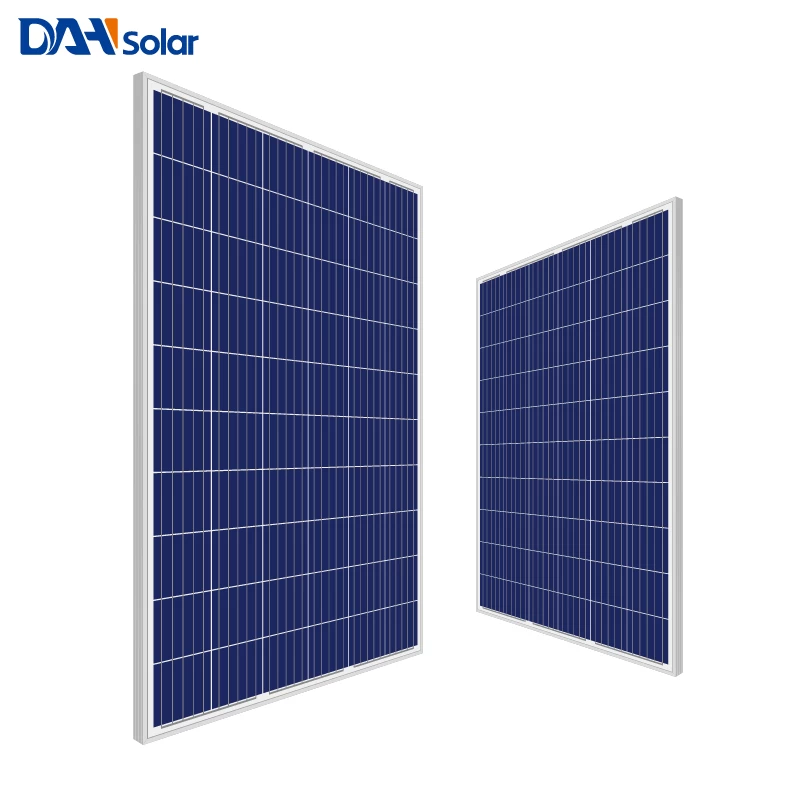

60 cells 5BB poly solar panel 265w-295w all with A Grade for on-grid & off-grid use for residential and public rooftop & ground mounting PV Power Station
Electrical Characteristics (STC)
|
Module Type
|
DHP60-
260
|
DHP60-
265
|
DHP60-
270
|
DHP60-
275
|
DHP60-
280
|
DHP60-
285
|
DHP60-
290
|
DHP60-
295
|
|
Maximum Power (Pmax)
|
260W
|
265W
|
270W
|
275W
|
280W
|
285W
|
290W
|
295W
|
|
Open-circuit Voltage (Voc)
|
38.1V
|
38.3V
|
37.9V
|
38.5V
|
38.7V
|
38.8V
|
39.0V
|
39.2V
|
|
Maximum Power Voltage (Vmp)
|
30.6V
|
30.8V
|
30.9V
|
31.1V
|
31.4V
|
31.6V
|
31.8V
|
32.1V
|
|
Short-circuit Current (Isc)
|
9.01A
|
9.10A
|
9.22A
|
9.25A
|
9.34A
|
9.48A
|
9.63A
|
9.77A
|
|
Maximum Power Current (Imp)
|
8.57A
|
8.70A
|
8.83A
|
8.92A
|
8.96A
|
9.02A
|
9.19A
|
9.20A
|
|
Module Efficiency(%)
|
16.01%
|
16.32%
|
16.63%
|
16.94%
|
17.25%
|
17.55%
|
17.86%
|
18.17%
|
|
Power Tolerance
|
0~+5W
|
|
Standard Test Environment
|
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5
|
60 cells packing details
|
Container
|
20GP
|
40GP
|
40HC
|
|
Pcs/pallet
|
40
|
40
|
40
|
|
Pallet/container
|
14
|
28
|
28
|
|
Pcs/container
|
530
|
1120
|
1232
|
First-class solar panel warranty Reliable quality
1.10 years material & technology guarantee
2. 25 years linear power output guarantee
3. 100% Double full EL inspection
4. 0-+5W Positive power output guarantee
Product Characteristics

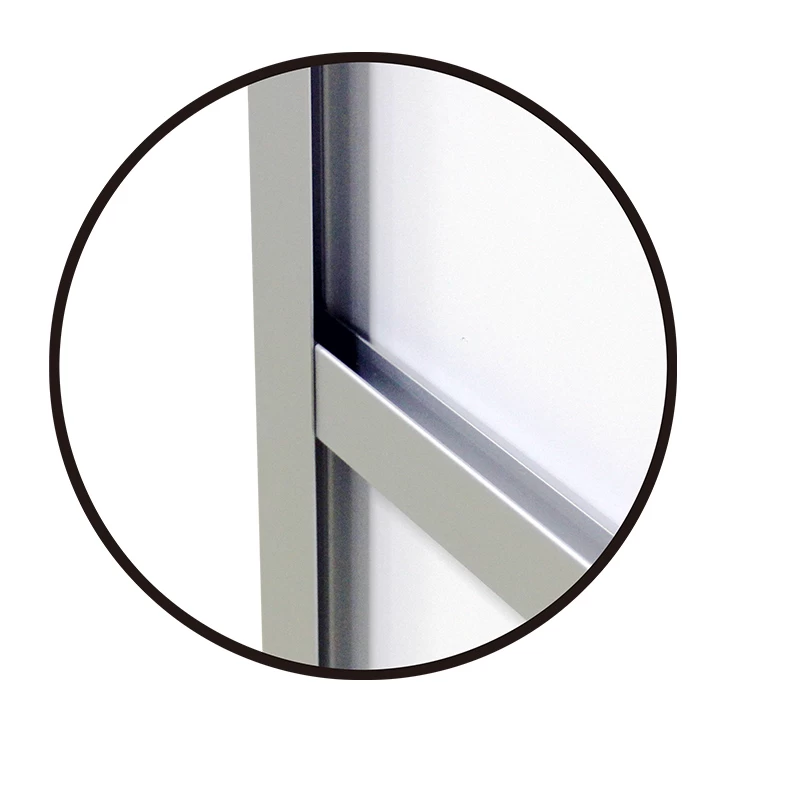

· Lighter weight,lower roof load
· Easy to operate, roof load-bearing reduced by 17%
· Higher eficiency, lower shipping cost
· More compact size, increase module efficiency and the packing density, reduce transportation cost by 25%-30%
· Excellent PID free performance.
· Certified anti Salt-mist, anti ammonia corrosion performance, sand and storm test by TUV Rheinland and TUV Nord.
