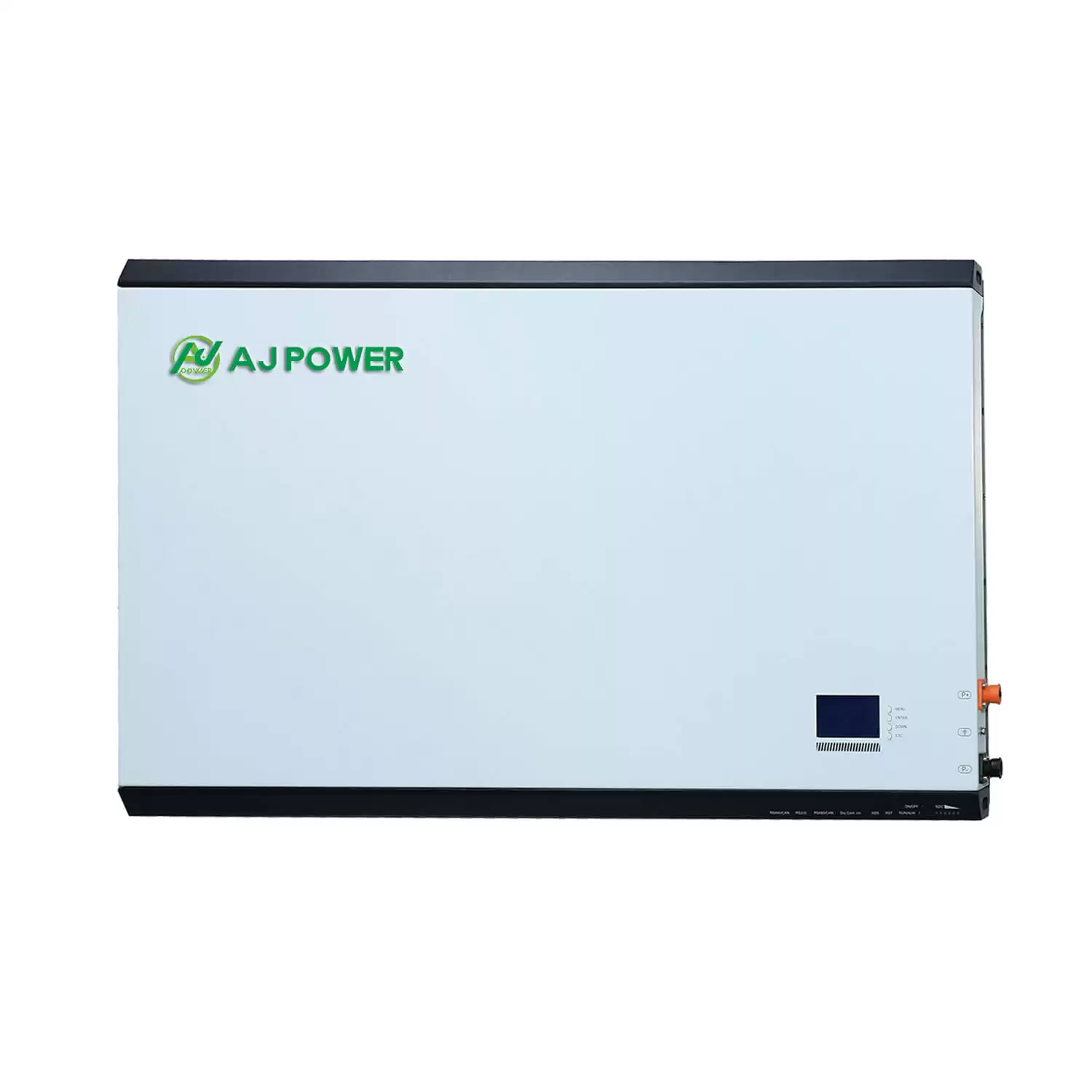

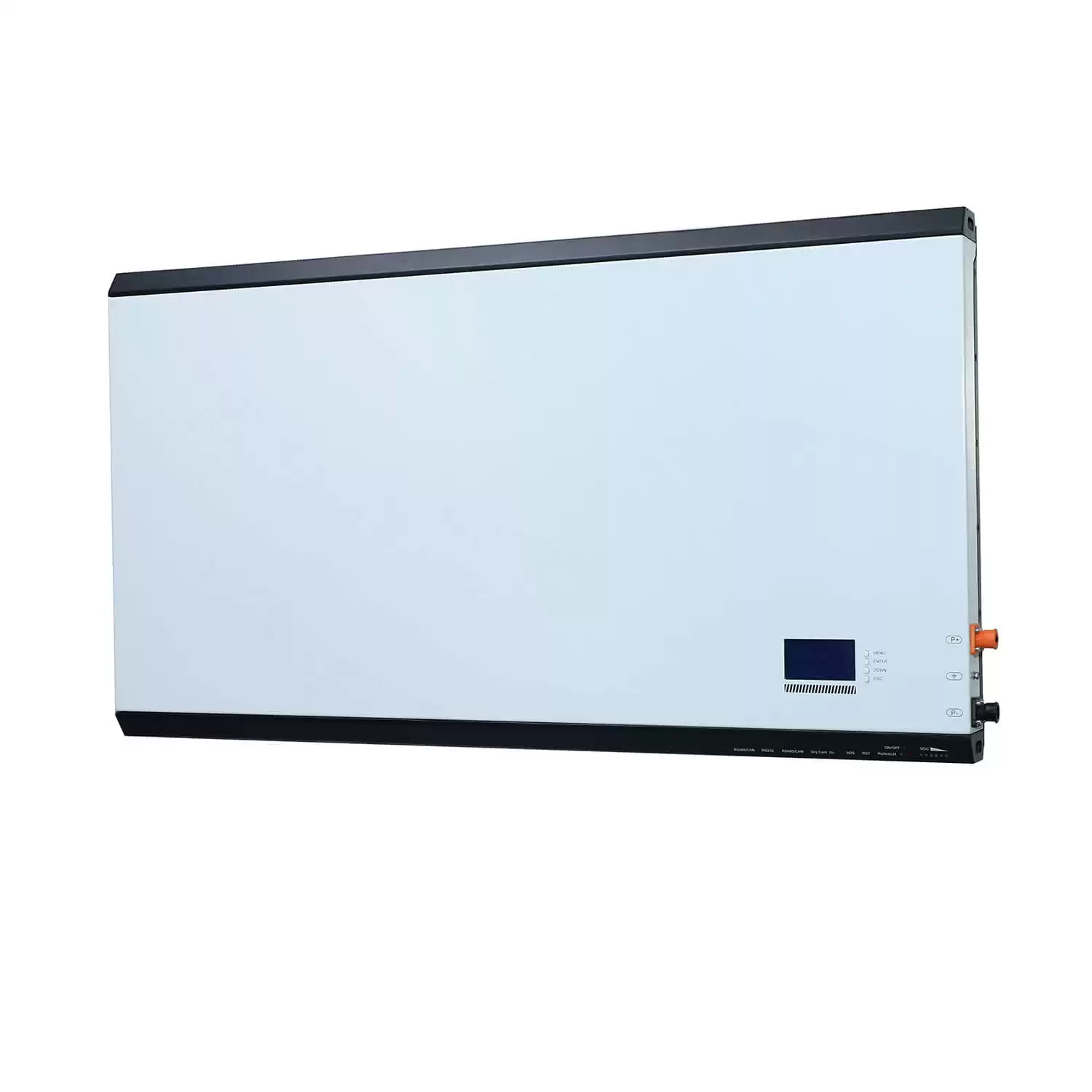

AJP7A 7kwh 135AH Wall-mounted home energy storage LiFePO4 battery

The AJP7A 51.2V 135AH Wall-mounted Home Energy Storage LiFePO4 Battery welcomes you to the future of home energy storage. This cutting-edge battery offers improved performance and longevity and was created to fulfill your power needs. Because of its wall-mounted appearance, it blends in perfectly with your living area. AJP7A battery offers the highest level of efficiency and dependability right now.

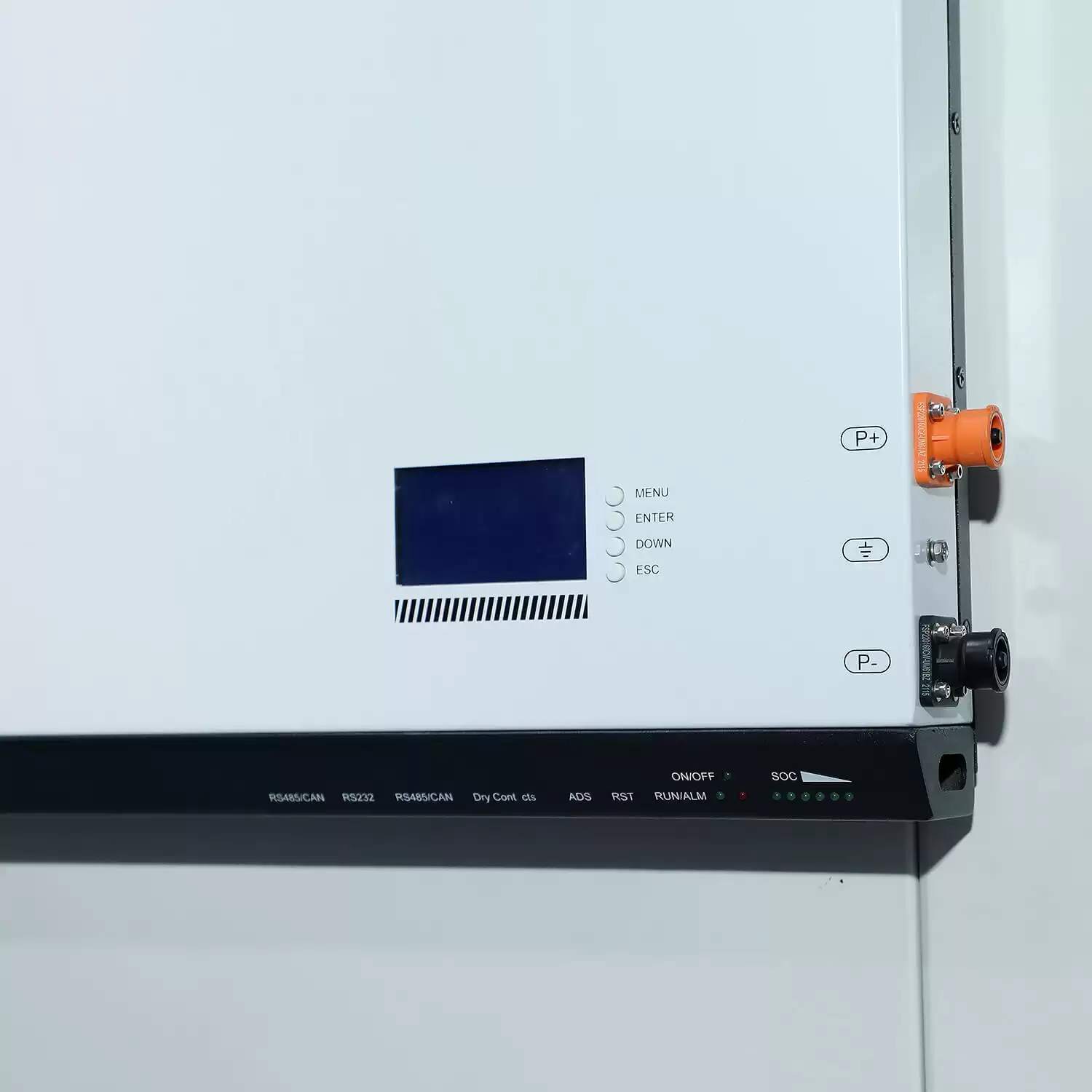

AJP7A 51.2V 135AH Wall-mounted home energy storage LiFePO4 battery

Product advantages









High Energy Capacity: The AJP7A 51.2V 135AH 7kWh Wall-mounted home energy storage LiFePO4 battery boasts a substantial energy capacity, providing ample power storage for residential use.

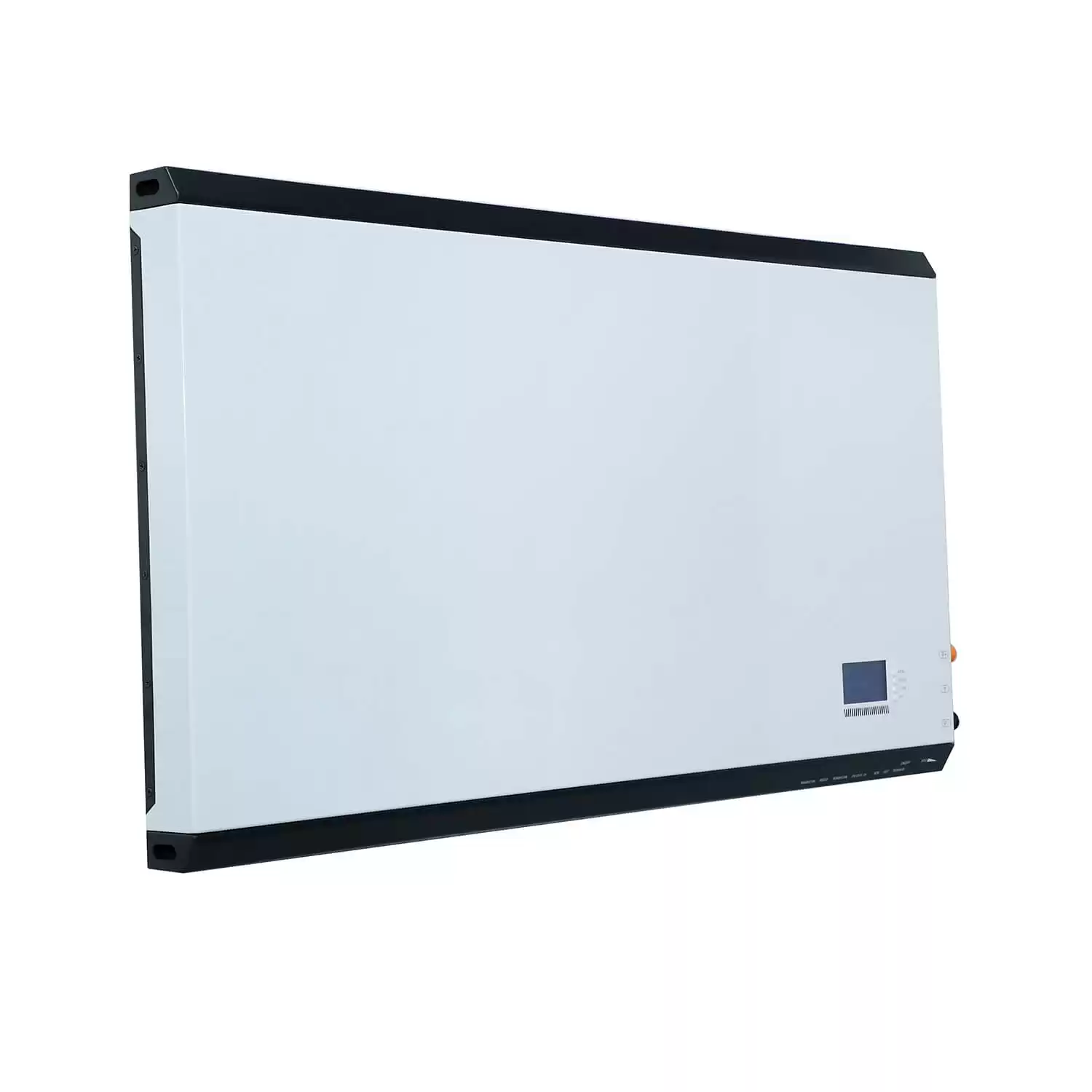

Space-efficient Design: With its wall-mounted configuration, this battery optimizes space utilization within homes, allowing for convenient installation and efficient use of available space.

Long-lasting Performance: Built with LiFePO4 technology, the AJP7A battery offers excellent cycle life and durability, ensuring prolonged performance and minimizing the need for frequent replacements.

Reliable Backup Power: This home energy storage battery provides reliable backup power during outages, enabling homeowners to maintain essential appliances and devices when the grid is down.

Safety and Stability: LiFePO4 chemistry provides inherent safety features, making the AJP7A battery stable, resistant to thermal runaway, and ensuring the overall safety of the home energy storage system.

Production information

Technical Parameters
Model Energy Battery Type Capacity
AJP7A 6912Wh LiFePO4 135AH
Rated Voltage Max Charge Current Working Voltage Range Max Discharge Current
51.2V 100A 40~58.4V 100A
Standard Charge Current DOD Standard Discharge Current Max Parallel Quantity
50A 100% 100A 15
Designed Life-span[1]  Operation Humidity Operating Temperature[2] Nominal Operation Altitude
6000 cycles 5~95% Charge:0~60℃ Discharge:-10~60℃ <3000m
IP Rating Communication Installation Method Certification
IP65 RS485/CAN Wall-Mount MSDS UN38.3
Net Weight Dimension(L*W*H) [1] Test conditions:100%DOD,0.2C charge&discharge at +25 ℃
63.3kg 1028*78*545 mm [2] -10 ℃ to 10 ℃ will be derating

Product Features

SafetySafety: The excellent safety features and trustworthy protective systems of the AJP7A Wall-mounted Home Energy Storage LiFePO4 Battery put safety first and guarantee secure operation for home energy storage.


Energy Storage CapacityEnergy Storage Capacity: This battery has a storage capacity of 135AH and 7kWh, which is more than enough to power your house when there is little or no electricity available.


Power OutputPower Output: The battery has a strong power output and can supply enough energy to run a variety of electronics and home appliances.


EfficiencyEfficiency: High energy efficiency is demonstrated by the AJP7A battery during storage and discharge, which maximizes energy use and reduces waste.


Integration with Solar SystemsIntegration with Solar Systems: By seamlessly integrating with solar panels, this battery enables households to store extra solar energy produced during the day and use it at night or at times when there is little solar output.

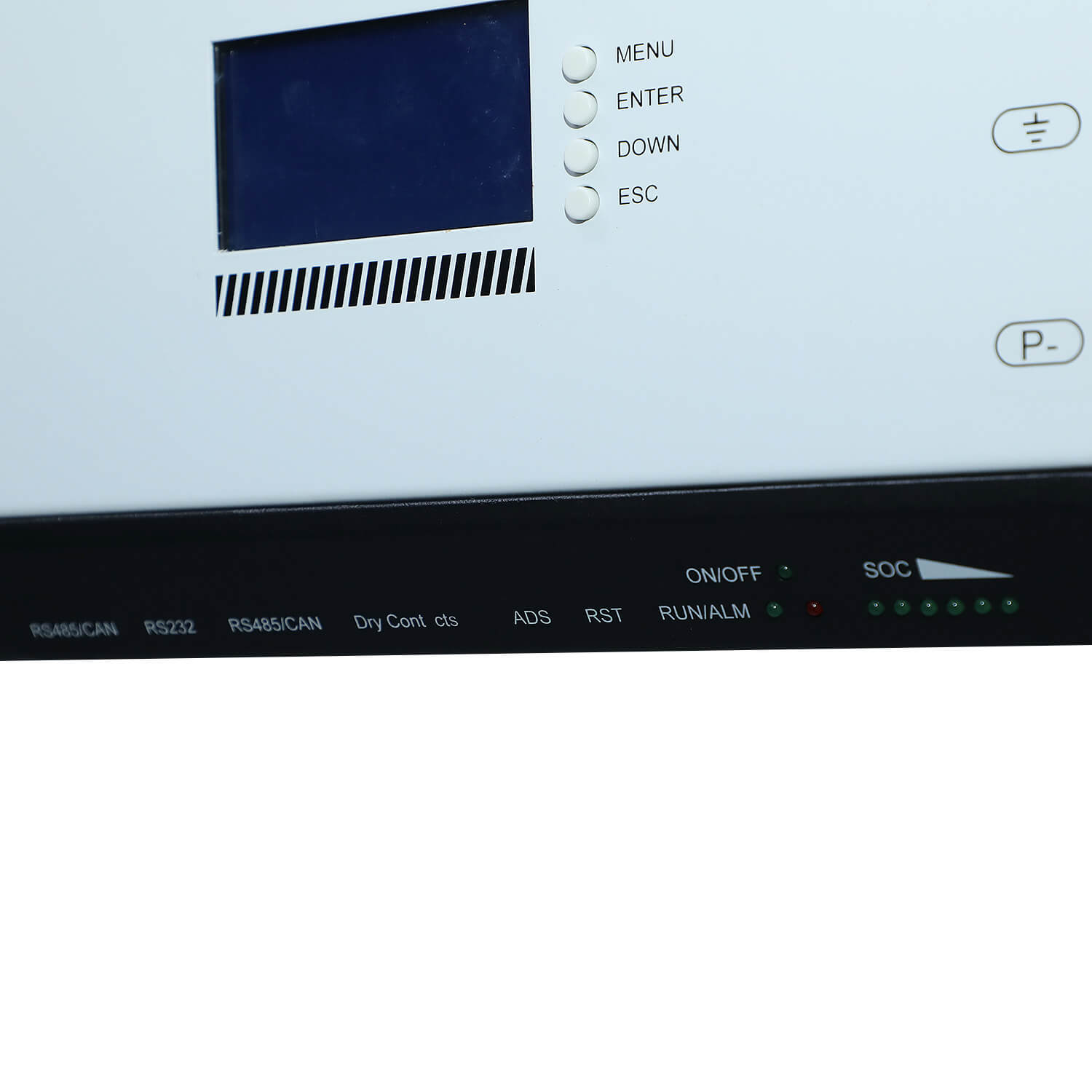

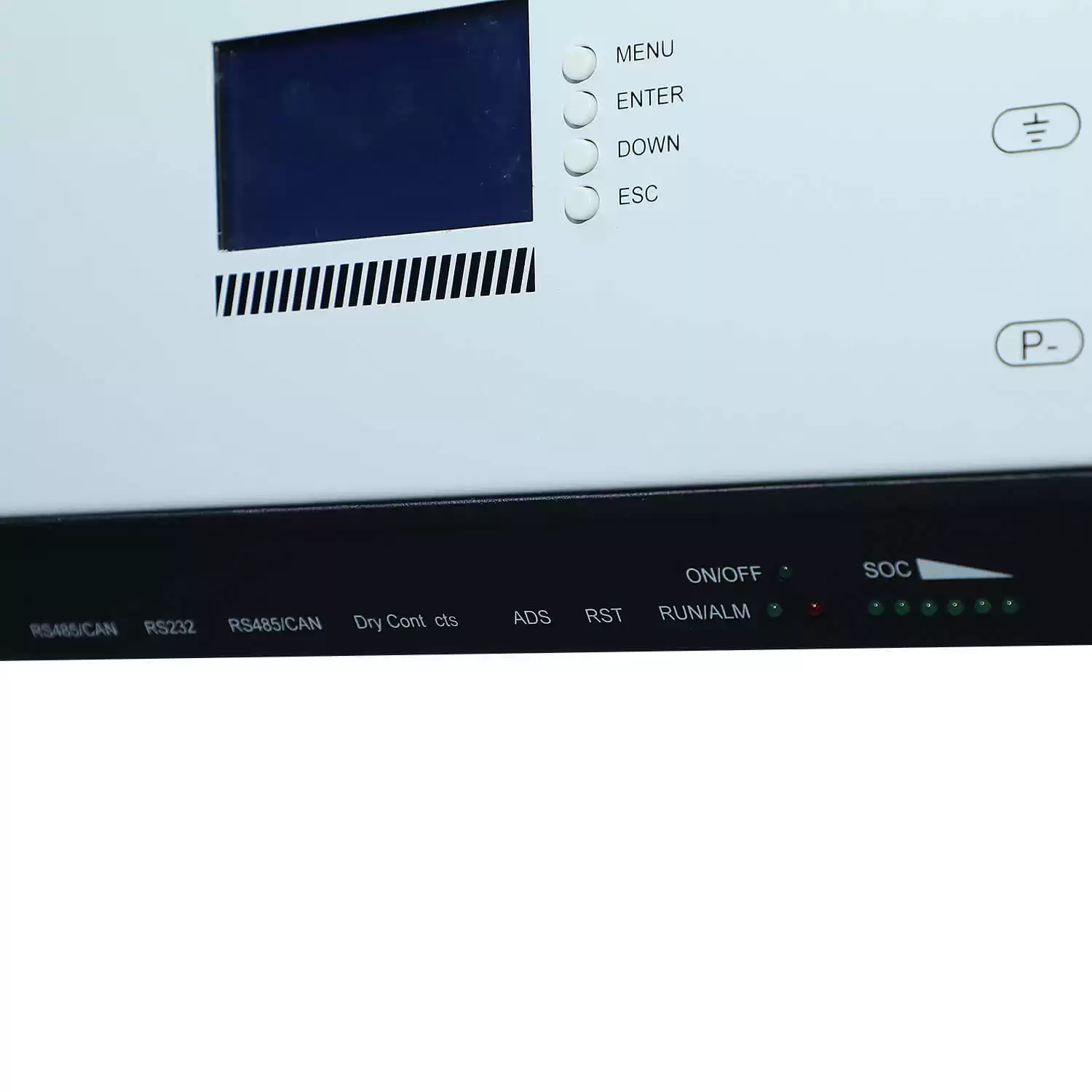

Monitoring and ControlMonitoring and Control: Homeowners can monitor energy use, check the battery's state, and regulate the charging and discharging procedures thanks to the battery's monitoring and management functions.


Cost savingsSavings: Homeowners may be able to save money on their power costs by reducing their dependency on the grid by using the AJP7A Wall-mounted Home Energy Storage LiFePO4 Battery.


Sustainable Energy SolutionSustainable Energy Solution: By enabling homes to capture and store renewable energy, lowering their reliance on non-renewable sources, and contributing to a more sustainable energy future, this battery encourages sustainable energy practices.


More information

Adaptable Solar Controller Brands

Company Information

Since its inception, TUV Rheinland has granted ISO9001 certification to AJ POWER, a provider of complete energy solutions.



Our broad range of products includes power battery systems, energy storage systems for homes and RVs, portable power stations, and a number of accessories. Thanks to our strong and dedicated R&D team, we are able to provide both conventional goods and solutions that are especially tailored to your needs.



Whether you need conventional or specialized solutions, AJ POWER is your trustworthy partner for all of your energy demands.
