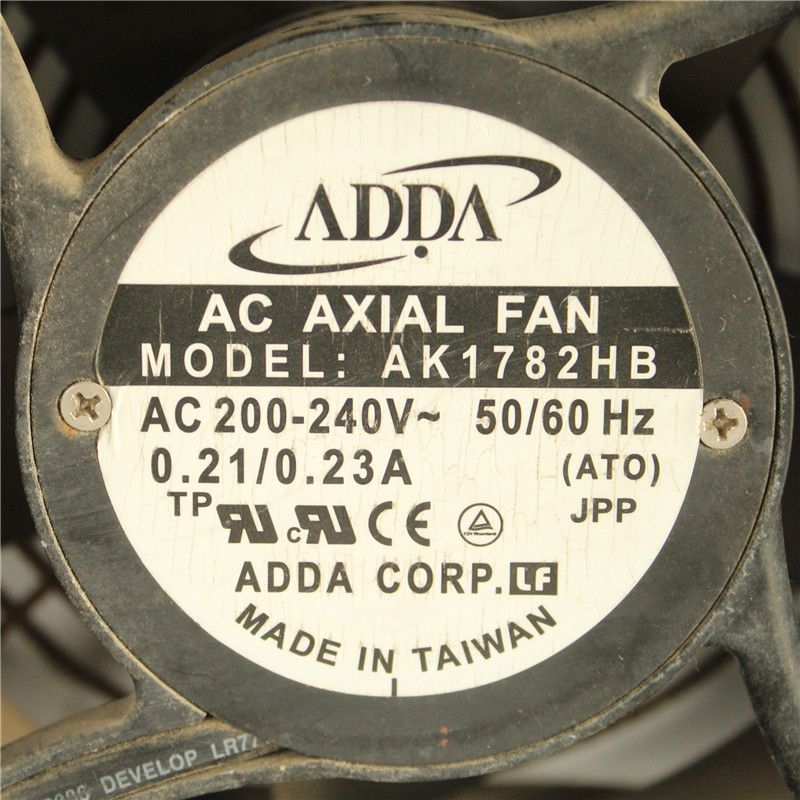

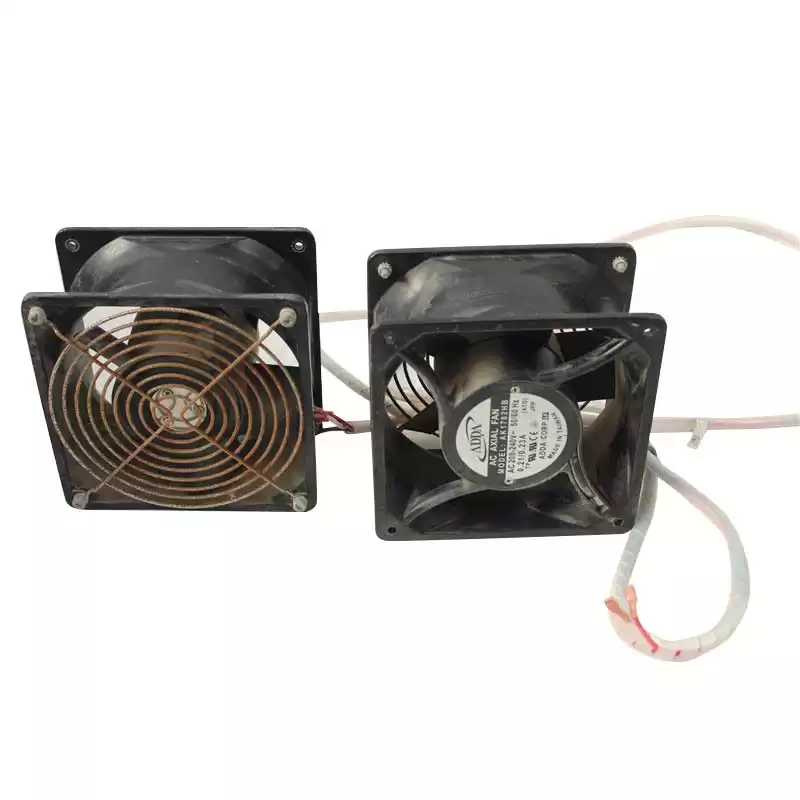

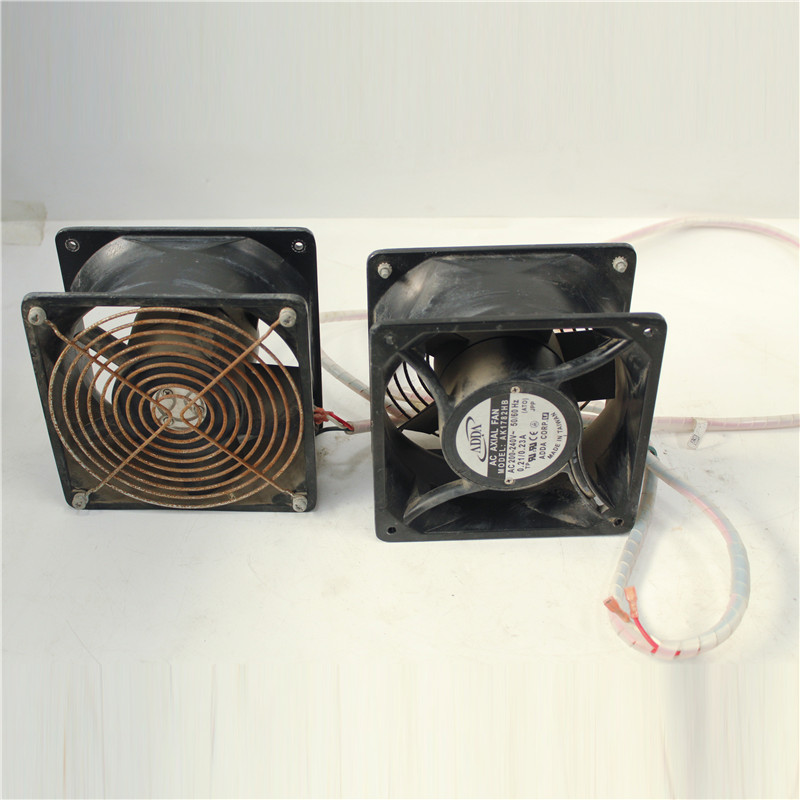

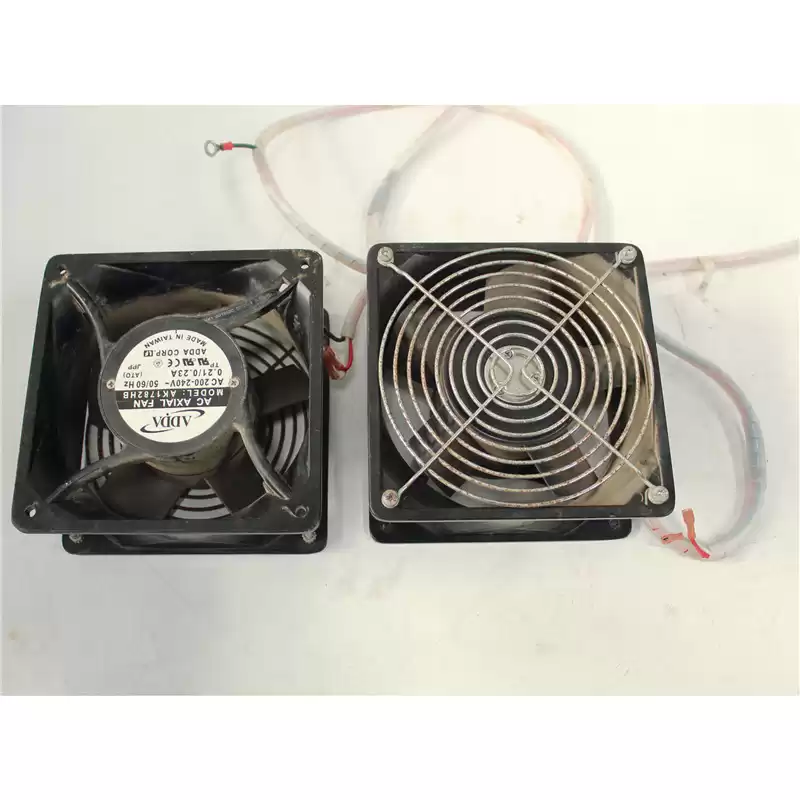

The AK1782HB-AT is a 230VAC high speed Axial Fan with 2-ball bearing and terminal power connection. High quality aluminum die casting frame flatted with black paint and black PBT plastic with glass fiber impeller. Counter-clockwise direction of rotation looking at rotor, shaded pole induction motor structure.
UL94V-0 Flammability rating
3200RPM Speed rating
-10 to 70°C Operating temperature range
49.5W Rated power
0.81" Aq Maximum pressure
100MΩ or more at 500VDC (between lead wire and frame) Insulation resistance
1500VAC for one minute to base on UL507 Dielectric strength
