Overview
Brand Name： Alcatel
Ptoduct Number: 3HE06485AA

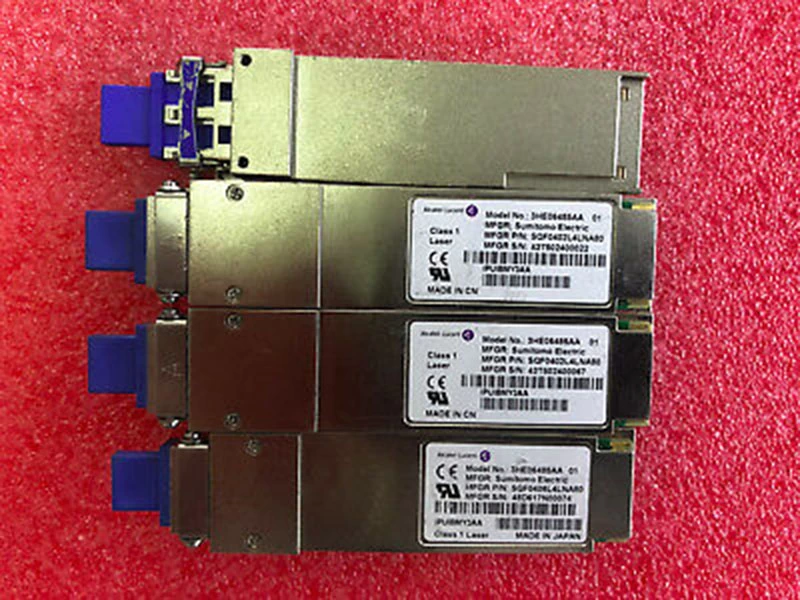

Discription: 3HE06485AA is Alcatel 40GBASE-LR4 Double Fiber Transceiver supporting 39.81-44.8 Gbps data rate in 10km distance over Single-ModeFiber (SMF); Alcatel 3HE06485AA 4x10Gb/s 40GBASE-LR4 Single Mode 1310nm Duplex LC 10km QSFP+ Transceiver;
Specification
|
Media Type:
|
Single-Mode Fiber (SMF)
|
|
TX Wavelength:
|
1310 nm
|
|
Transceiver Type:
|
QSFP
|
|
RX Wavelenght:
|
1310 nm.
|
|
Minimum Optical Budget:
|
9.7 dB
|
|
Maximum Distance:
|
10km
|
|
Supported Data Rate:
|
39.81 – 44.8 Gbps
|
|
Supported Applications:
|
40G Ethernet (41.25Gbps), STM-256 (39.81 Gbps), OTU3 (43.01Gbps), OTU3e2 (44.58Gbps)
|
|
DDM/DOM:
|
Supported
|
|
Temperature Range:
|
Standard 0°-70°C
|
|
Connectors:
|
Double LC
|
|
Tx Wavelength Bandwidth:
|
4 WDM Seperated 1310nm Lanes (13 nm (1271, 1291, 1311, 1331))
|
|
Rx Wavelength Bandwidth:
|
4 WDM Seperated 1310nm Lanes (13nm (1271, 1291, 1311, 1331))
|
|
Minimum Transmitting Power:
|
Each Lane -4 dB
|
|
Maximum Transmitting Power:
|
Each Lane 2.3 dB
|
|
Receiver Sensitivity:
|
Each Lane -13.7 dBm
|
|
Receiver Overload:
|
Each Lane 2.3 dBm
|
|
Transmitter Type:
|
DFB Laser
|
|
Receiver Type:
|
PIN photodiode
|
|
Chipset:
|
MAXIM, MINDSPEED, SEMTECH, UX
|
|
Power:
|
+3.3V single power supply
|
|
Compliance:
|
802.3ba 40GBASE-LR4, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8438i, QSFP+ MSA, RoHS, SFF-8436
|
