Overview
Brand Name: Alcatel - Lucent
Product Number: 3HE10551AA

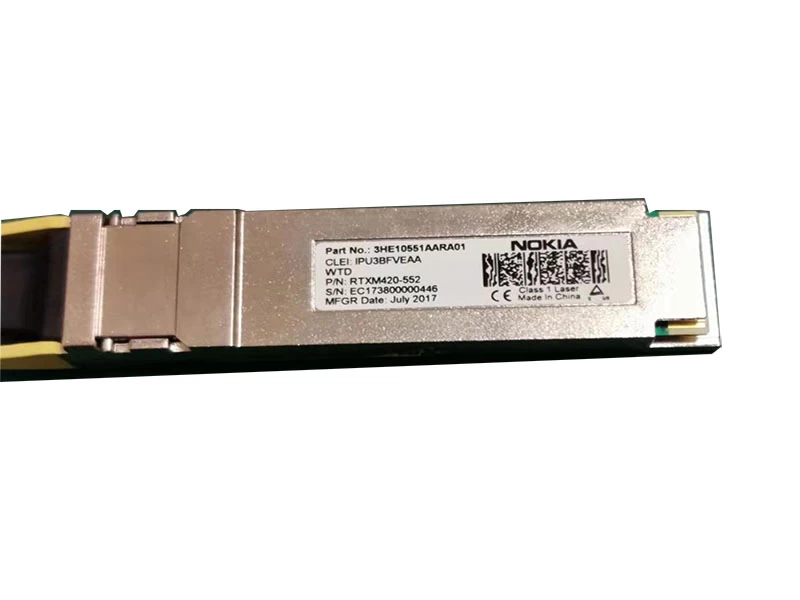

Discription: Alcatel 3HE10551AA 100GBASE-SR4 QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver designed for operation over multi-mode optical fiber. Module has minimum guaranteed optical budget of 1.9 dB, which in most cases is enough to reach 100 m over OM4 multi-mode fiber, or 70 m over OM3 multi-mode fiber.
Specification
|
Media Type:
|
4 Lanes of MMF
|
|
Connectors:
|
MTP/MPO
|
|
TX Wavelength:
|
850 nm.
|
|
RX Wavelenght:
|
850 nm.
|
|
Minimum Optical Budget:
|
1.9 dB
|
|
Maximum Distance:
|
100m
|
|
Supported Data Rate:
|
103.125 Gbps
|
|
Supported Applications:
|
100G Ethernet (103.125Gbps)
|
|
DDM/DOM:
|
Supported
|
|
CDR (Clock and Data Recovery) chip
|
Supported
|
|
Forward Error Correction (FEC):
|
Not Supported
|
|
Transmitter Type:
|
VSCEL Laser
|
|
Minimum Transmitting Power:
|
Each Lane -8.4 dBm
|
|
Tx Wavelength Bandwidth:
|
20 nm (840-860 nm)
|
|
Maximum Transmitting Power:
|
Each Lane 2.4 dBm
|
|
Average Launch Power (Min) Each Lane:
|
-8.4 dBm
|
|
Receiver Sensitivity:
|
Each Lane -10.3 dBm
|
|
Average Launch Power (Max) Each Lane:
|
2.4 dBm
|
|
Extinction Ratio (Min):
|
3 dB
|
|
Receiver Type:
|
PIN photodiode
|
|
Rx Wavelength Bandwidth:
|
20 nm (840-860 nm)
|
|
Average Receiver Sensitivity (Min) Each Lane:
|
-10.3 dBm
|
|
Average Receiver Sensitivity (Max) Each Lane:
|
2.4 dBm
|
|
Receiver Overload:
|
3.4 dBm
|
|
Temperature Range:
|
Standard 0°-70°C
|
|
Storage Temperature:
|
-40°to 85°C
|
|
Relative Humidity:
|
0 to 85%
|
|
Power Consumption:
|
≤3.5W
|
|
Power:
|
+3.3V
|
|
Chipset:
|
Macom, Sumitomo, Samtech, Oclaro, Avago, II-IV
|
|
Compliance:
|
Class 1 FDA, IEC60825-1 Laser Safety Compliant, IEEE 802.3bm, RoHS-6, 802.3bm 100GBASE-SR4, CE, QSFP28 MSA, SFF-8636, SFF-8665
|
