All-aluminum Industrial Embedded Fanless Box PC
Product Introduction
Yanyue MIS-C8U is an embedded system that comes with MXM slot for 4-CH PoE expansion for applications in machine vision,edge computing,traffic vision,deep leaning,and artificial intelligence of things.
| Specifications |
optional configurations |
| Chassis |
All aluminum case with teeth, Titanium Grey |
|

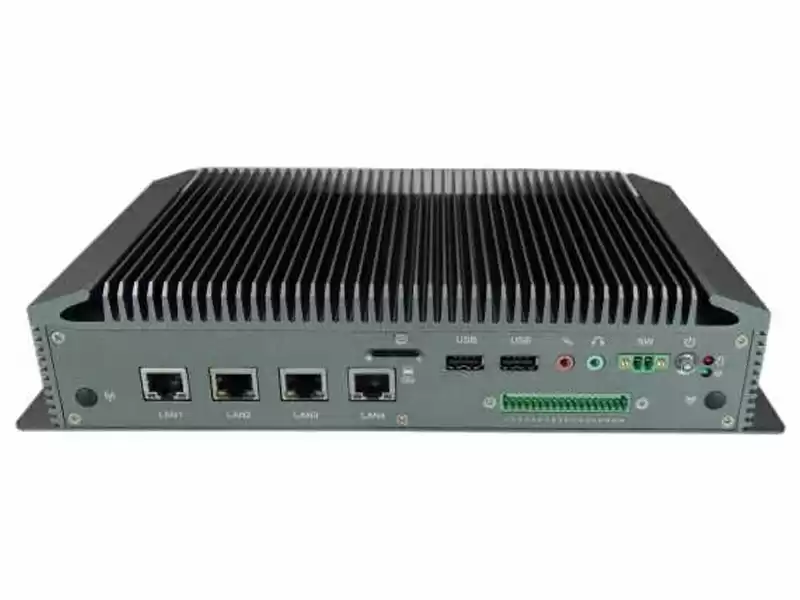

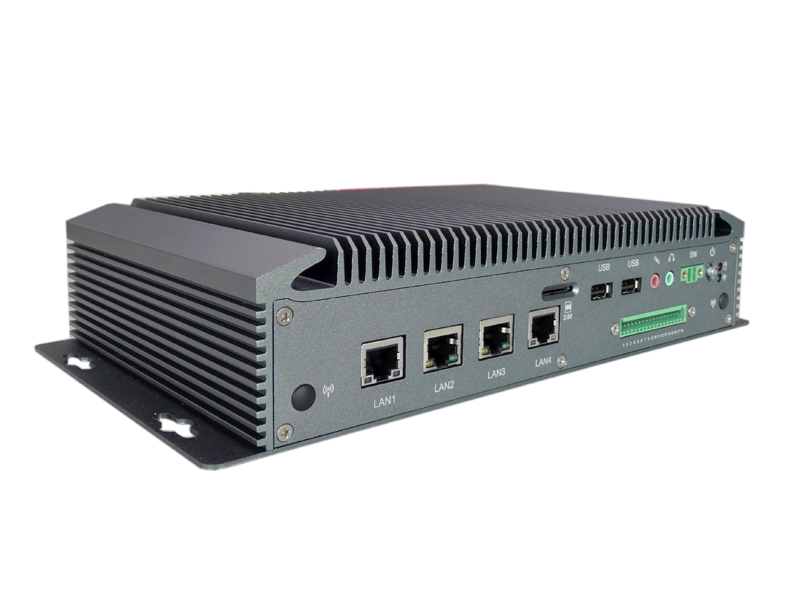

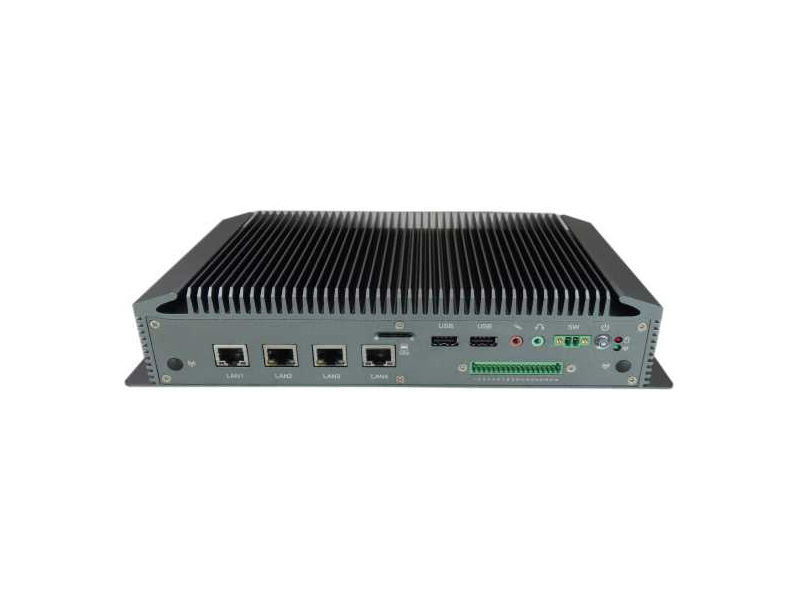

| Front |
Indicator light, switch and external switch interface, 2 Audio jacks, 2 USB2.0, SIM card holder, 2 antenna holes, GPIO (Phoenix terminal), MXM expansion module |
Optional MXM modules: 4 Intel Gigabit LAN modules; 4 POE Intel Gigabit LAN modules; 4 serial modules; 6 USB 3.0 modules |

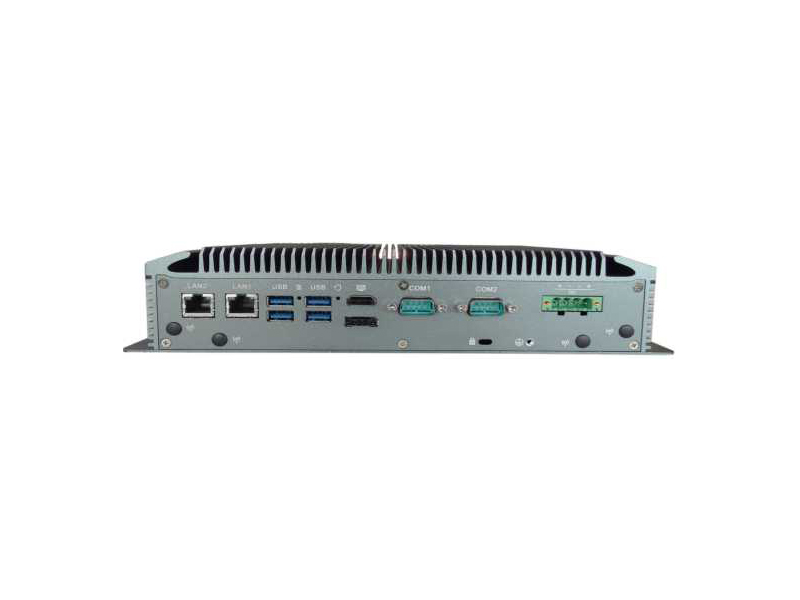

| Back |
DC IN; 2COM; DP+HDMI; 4USB3.0; 2 RJ45; 4 antenna holes |
|
| Hard disk rack |
1 hard disk rack, 1M.2 slot |
|
| Adaptive Motherboard |
Specialized motherboards |
|
| CPU/GPU |
Soldered Onboard Intel i3 8145UE/i5 8265UE/i7 8665UE |
|
| Memory |
8G DDR4 |
Optional up to 32G |
| Hard Disk |
256G M.2 |
Optional other capacity M.2 SSD; optional 2.5" hard drive |
| Ethernet |
2LAN (Intel Gigabite Network) |
Optional 6LAN(Optional 4POE LAN) |
| Display Interface |
DP + HDMI |
|
| Size |
285*156*59.4mm |
Net/Gross Weight |
1.5/2KG |
| Power Supply |
Optional DC19V or DC9~42V adapter |
|
| Installation mode |
Bracket installation |
Product Features
■ support Soldered Onboard i3/i5/i7 8th Generation U series CPU
■ Supports up to 32G DDR4 memory
■ 2LAN(Intel gigabite network chip),4USB3.0+2USB2.0
■ 2COM(Option RS232/422/485)
■ Optional 4G/5G communication module, external plug-in SIM card holder
■ 16-bit GPIO, optional with isolation
■ Support DP+HDMI dual display
■ MXM extension with the following optional extension modules:
1.4 Intel Gigabite Network Module
2.4 POE Intel Gigabit Network Modules
3.4COM Module
4.6USB3.0 Module
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

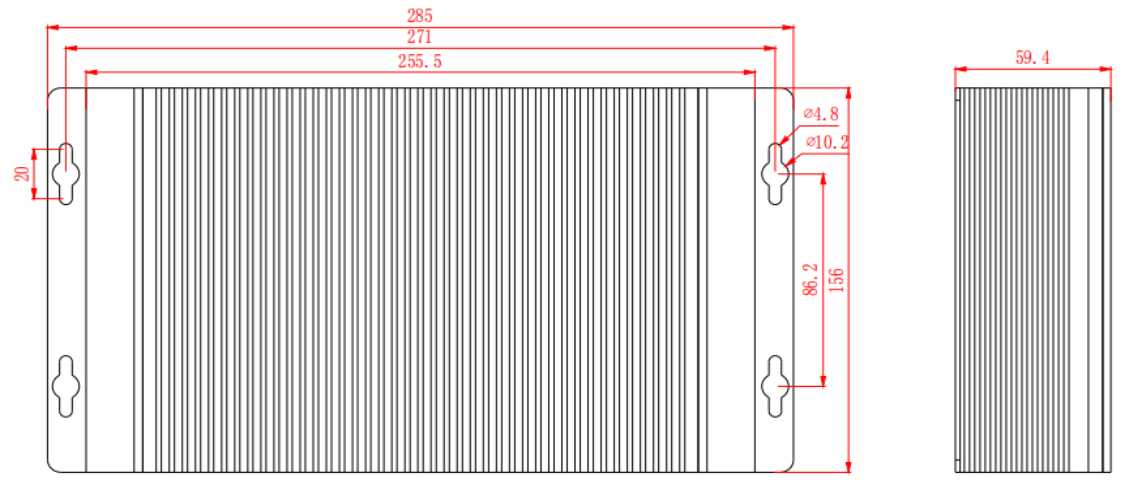

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
