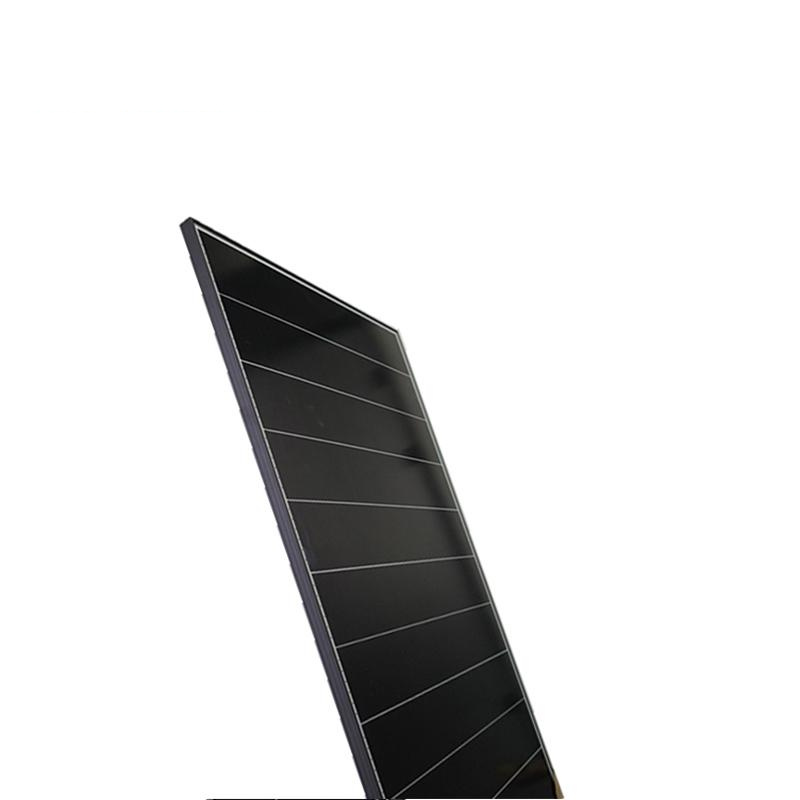

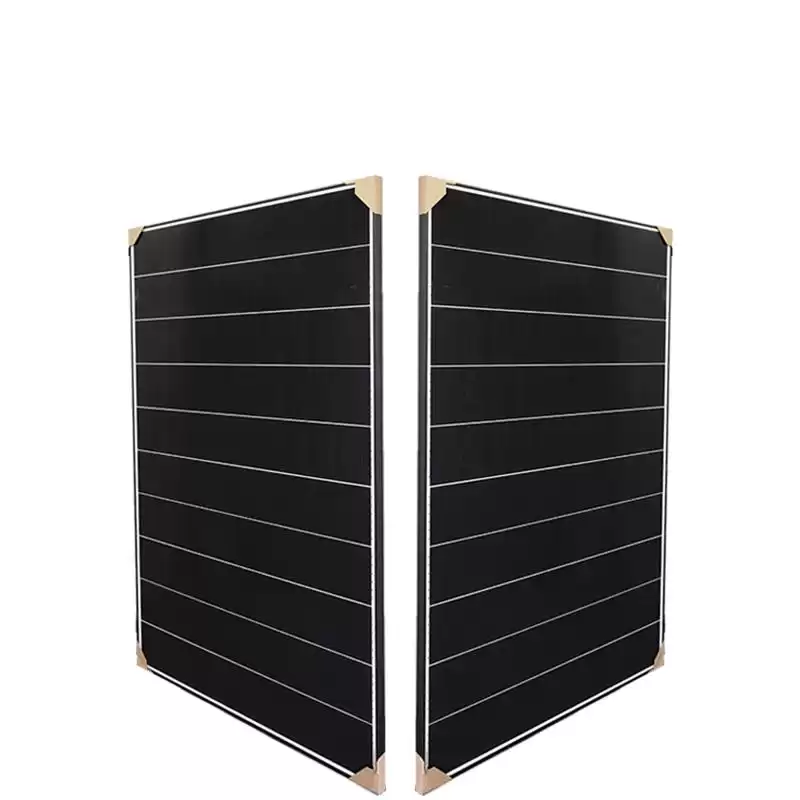

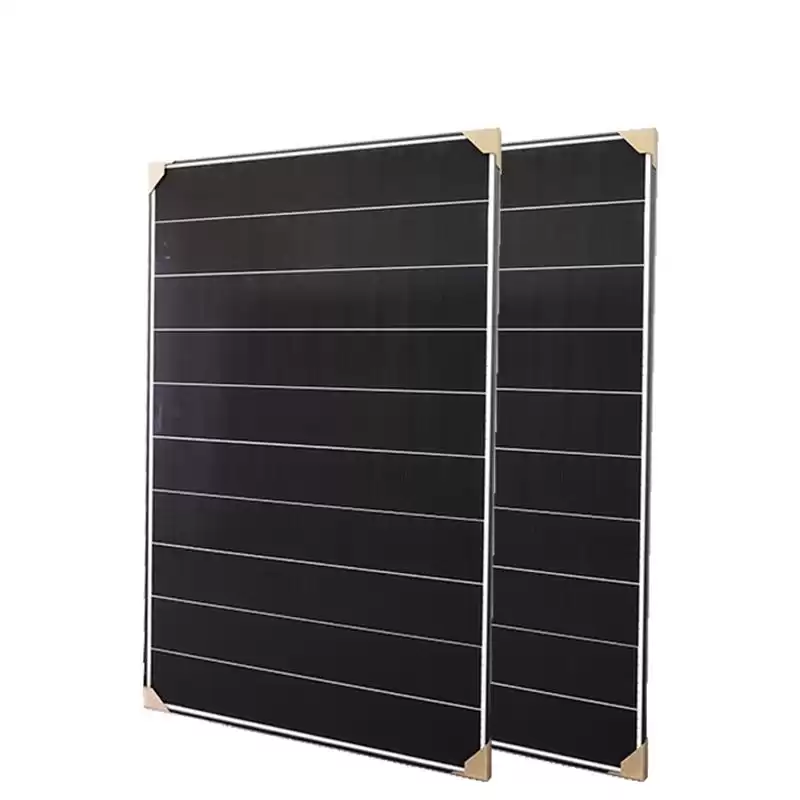

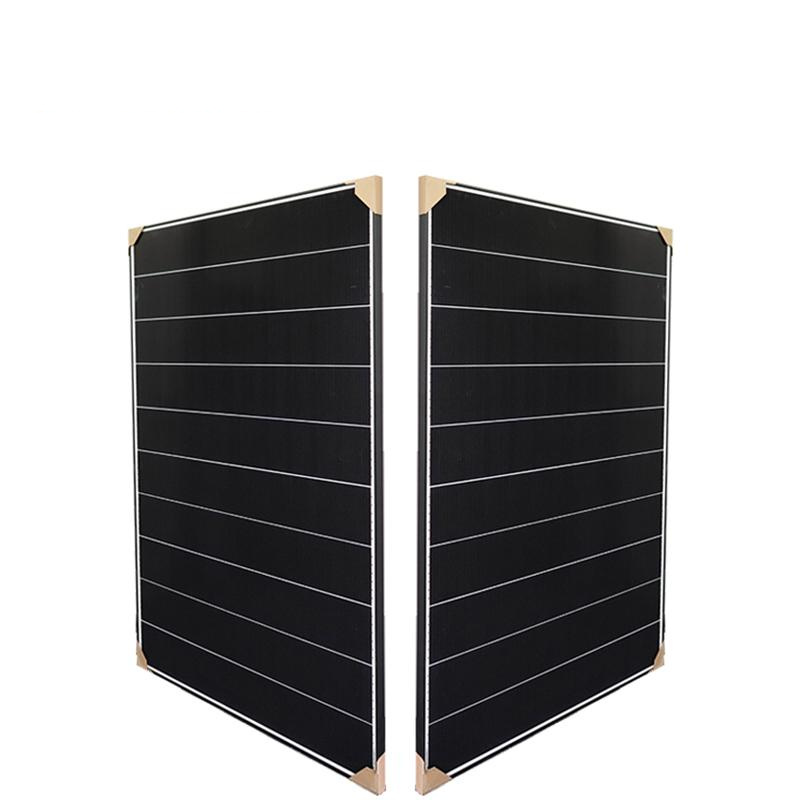

GREYSTONE Mono Solar Panel All Black 405W PERC Shingled Solar Module

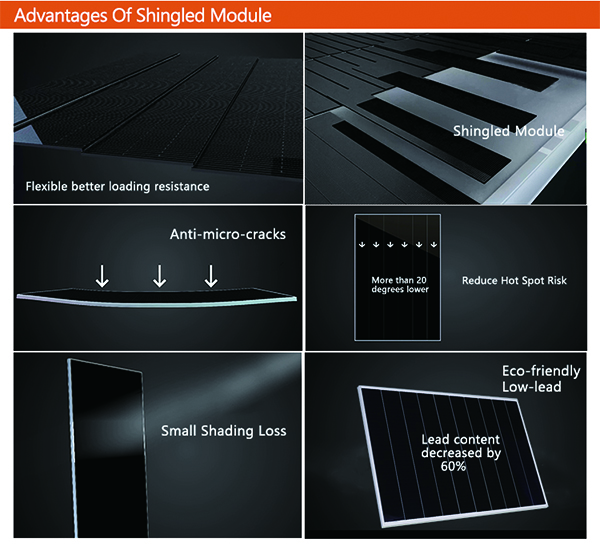

KEY features
Technology
Innovative structure; Low temperature adhesive; High density setting
Beautiful appearance
Module’s layout is homogeneous and consistent; With more aesthetic feeling of science and technology
Safety and reliability
No micro-crack caused by welding; Lower operating temperature; High pressure resistance
Lower system cost
High screen-to-body ratio which reduce system cost
Low hot spot effect
Prolong module lifetime; Reduce electricity loss during generating
Lower occlusion loss
Parallel layout brings high effective generation hours
Green and environmental friendly
Insist environmental friendly faith; Fluorine-free and low Pb in module
Product Specification
|
MECHANICAL CHARACTERISTICS
|
|
|
Solar Cells
|
Monocrystalline silicon
|
|
Cell Orientation
|
340(34*10)
|
|
Dimensions
|
2056*1140*35mm
|
|
Weight
|
24.5KG
|
|

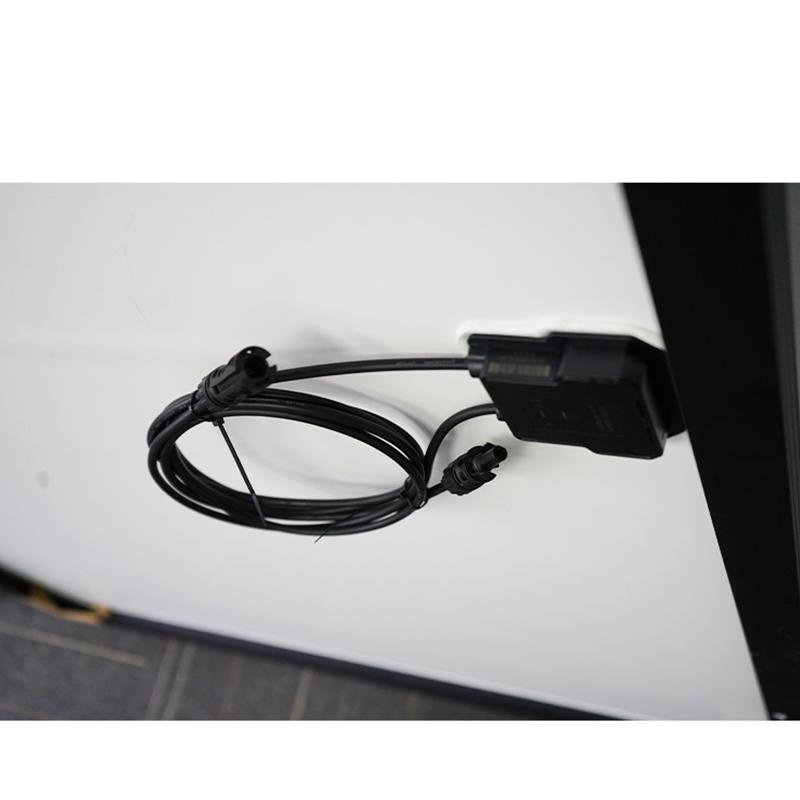

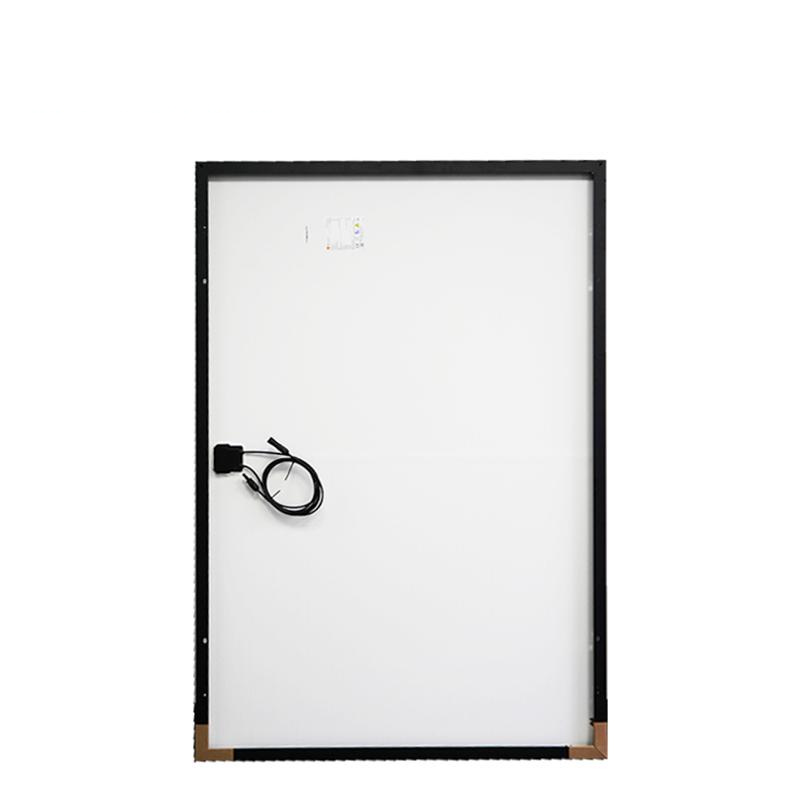

Junction Box
|
IP68, two diodes
|
|
Front Glass
|
AR coating tempered glass, 3.2mm
|
|
Frame
|
Anodized aluminum profile
|
|
Output Cables
|
4.0mm²,1000mm（Be customized by customers）
|
|
Connectors
|
|
|
ELECTRICAL PARAMETERS
|
|
|
|
|
|
|
|
410
|
405
|
400
|
395
|
390
|
385
|
|
Rated Maximum Power (Pmax) [Wp]
|
410
|
405
|
400
|
395
|
390
|
385
|
|
Open Circuit Voltage (Voc) [V]
|
46.6
|
46.5
|
46.4
|
46.3
|
46.3
|
46.2
|
|
Short Circuit Current (Isc) [A]
|
11.07
|
11.02
|
10.97
|
10.92
|
10.87
|
10.82
|
|
Maximum Power Voltage (Vmp) [V]
|
38.8
|
38.7
|
38.6
|
38.5
|
38.5
|
38.4
|
|
Maximum Power Current (Imp) [A]
|
10.57
|
10.47
|
10.36
|
10.26
|
10.13
|
10.03
|
|
Module Efficiency [%]
|
20.9
|
20.7
|
20.4
|
20.2
|
19.9
|
19.6
|
|
Working Temperature [°C]
|
-40°C ~ +85°C
|
|
Maximum System Voltage
|
DC 1500 /1000 (IEC)
|
|
Maximum Series Fuse Rating
|
20
|
|
Application Class
|
Class A
|
|
Maximum Surface Load Capacity[Pa]
|
5400
|
AQ

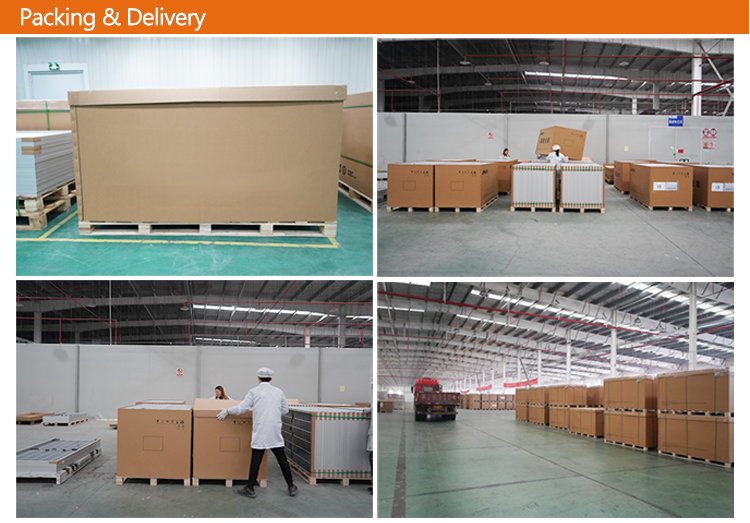

Package
|
Number of panels per pallet
|
31
|
|
Number of pallets per 40’GP container
|
26
|
|
Number of modules per container
|
806PCS
|

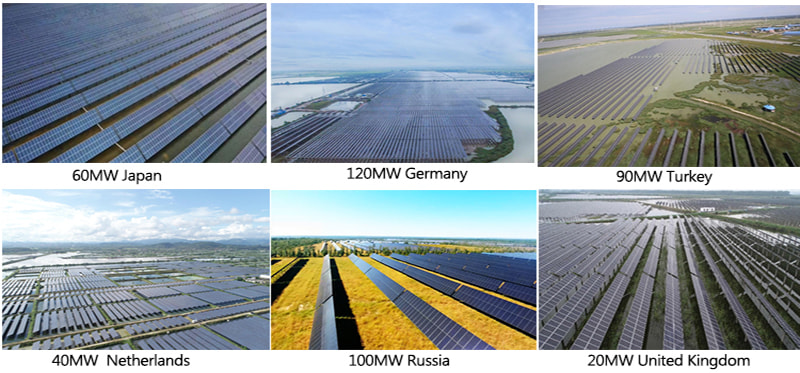

Projects
FAQ
Q1: Does your company accept LOGO customization?
A1: Sure, we could print your company LOGO on the products and package.
Q2: Do you accept customization on the size?
A2: Yea, if the size is reasonable.
Q3: What's types of solar panels do you supply?
A3: Mono-crystalline, Poly-crystalline, bifacial dual glass, shingled, flexible type, from 270W~550W.
Q4: Do you sell solar cell and glass separately?
A4: Yes, just feel free to leave a message.
Q5: Is it possible for me to get a sample before production?
A5: Of course, samples could be offered for your evaluating the quality first.
