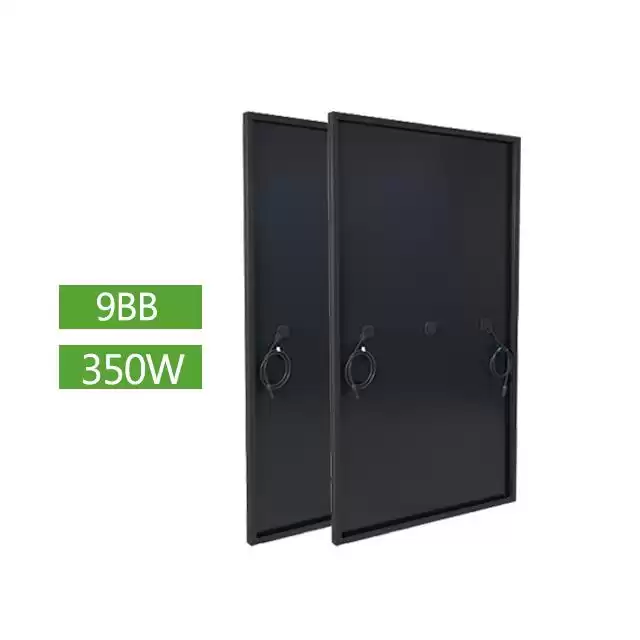

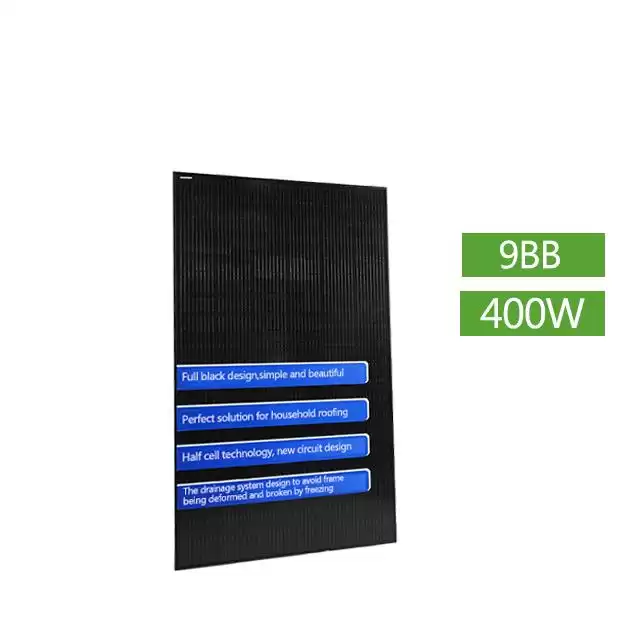

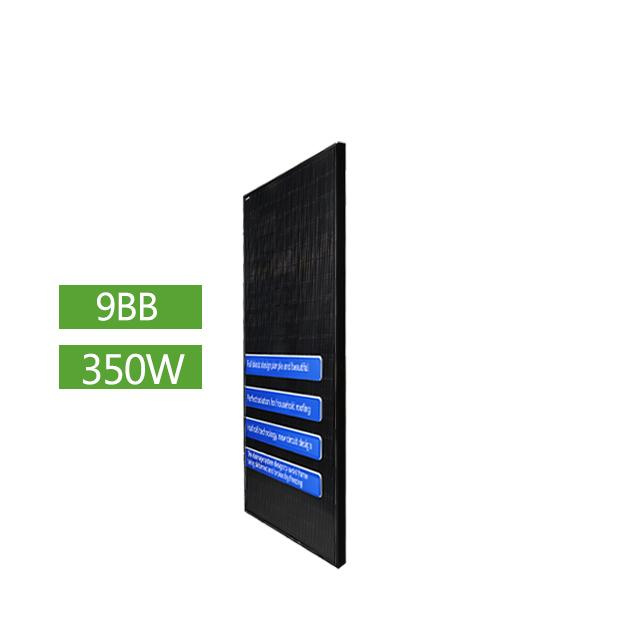

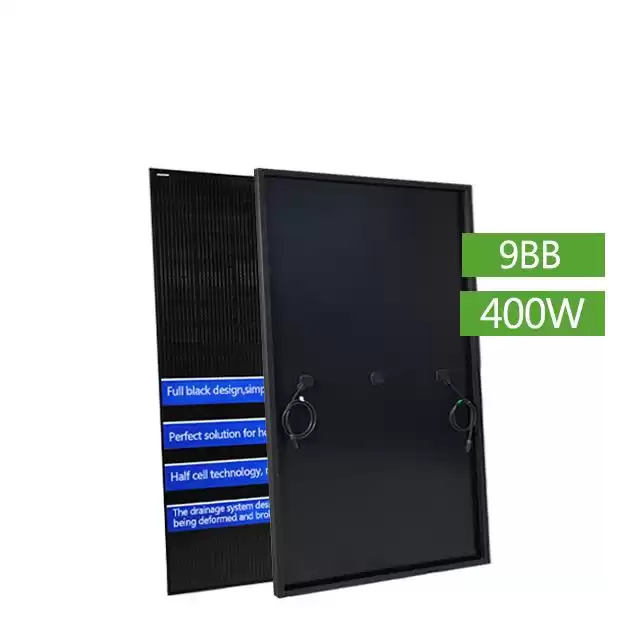

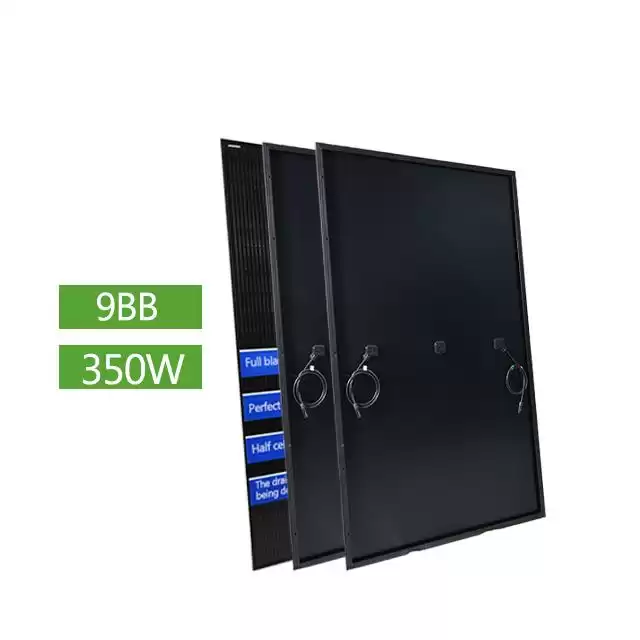

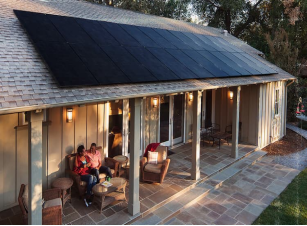

GREYSTONE All Black Solar Panel 350W 380W 400W Half Cell Monocrystalline Solar Panels
This all-black solar panel with optimizes power, performance and aesthetics. GSP-all black series uses patented cell design, superior panel architecture and innovative assembly techniques to significantly boost power generation, provide superior shading performance, and set the standard for reliability.
Product Specification
|
Mechanical Characteristics
|
|
Solar Cells
|
Mono
|
|
No. of Cells
|
144 (6x24)
|
|
Dimensions
|
2279±2mm x 1134±2mm x 35±1mm
|
|
Weight
|
27.5kg±3%
|
|
Junction Box
|
IP68 Rated(3 by pass diodes)
|
|
Front Glass
|
3.2mm coated tempered glass
|
|
Frame
|
Anodized aluminum alloy
|
|
Output Cables
|
4.0mm², 300mm(+)/400mm(-), Lengh can be customized
|
|
Connectors
|
Mc4 compatible
|
|
Mechanical load test
|
5400Pa
|
|
ELECTRICAL PARAMETERS
|
GSP-B-530
|
GSP-B-535
|
GSP-B-540
|
GSP-B-545
|
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
|
Rated Maximum Power (Pmax) [Wp]
|
530W
|
401W
|
535W
|
405W
|
540W
|
409W
|
545W
|
413W
|
|
Open Circuit Voltage (Voc) [V]
|
49.74
|
47.16
|
49.89
|
47.40
|
50.04
|
47.63
|
50.18
|
47.87
|
|
Short Circuit Current (Isc) [A]
|
13.62
|
10.91
|
13.69
|
10.95
|
13.76
|
10.99
|
13.83
|
11.03
|
|
Maximum Power Voltage (Vmp) [V]
|
41.63
|
38.97
|
41.80
|
39.21
|
41.96
|
39.44
|
42.20
|
39.67
|
|
Maximum Power Current (Imp) [A]
|
12.73
|
10.29
|
12.80
|
10.33
|
12.87
|
10.37
|
12.94
|
10.41
|
|
Module Efficiency [%]
|
20.51%
|
20.70%
|
20.89%
|
21.09%
|
|
Working Temperature [°C]
|
-40°C ~ +85°C
|
|
STC
|
Irradiance 1000W/m², cell temperature 25°C, AM1.5G
|
|
NOCT
|
Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G
|
AQ

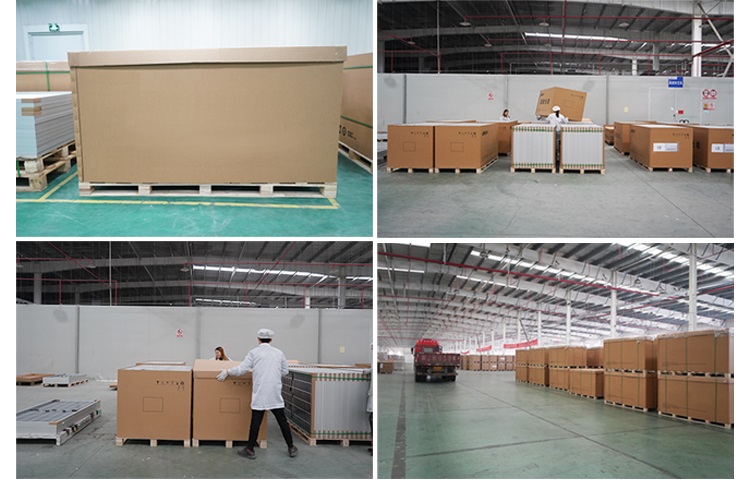

Package

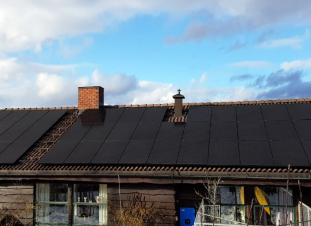

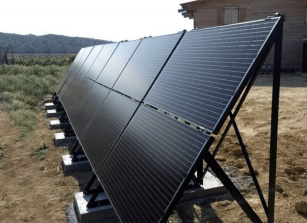

Projects
|
|
|
|
24kw on-grid solar system in US
|
15.8kw off-grid solar system in Brazil
|
18kw in Saudi Arabia
|
FAQ
Q1: Does your company accept LOGO customization?
A1: Sure, we could print your company LOGO on the products and package.
Q2: Do you accept customization on the size?
A2: Yea, if the size is reasonable.
Q3: What's types of solar panels do you supply?
A3: Mono-crystalline, Poly-crystalline, bifacial dual glass, shingled, flexible type, from 270W~550W.
Q4: Do you sell solar cell and glass separately?
A4: Yes, just feel free to leave a message.
Q5: Is it possible for me to get a sample before production?
A5: Of course, samples could be offered for your evaluating the quality first.
