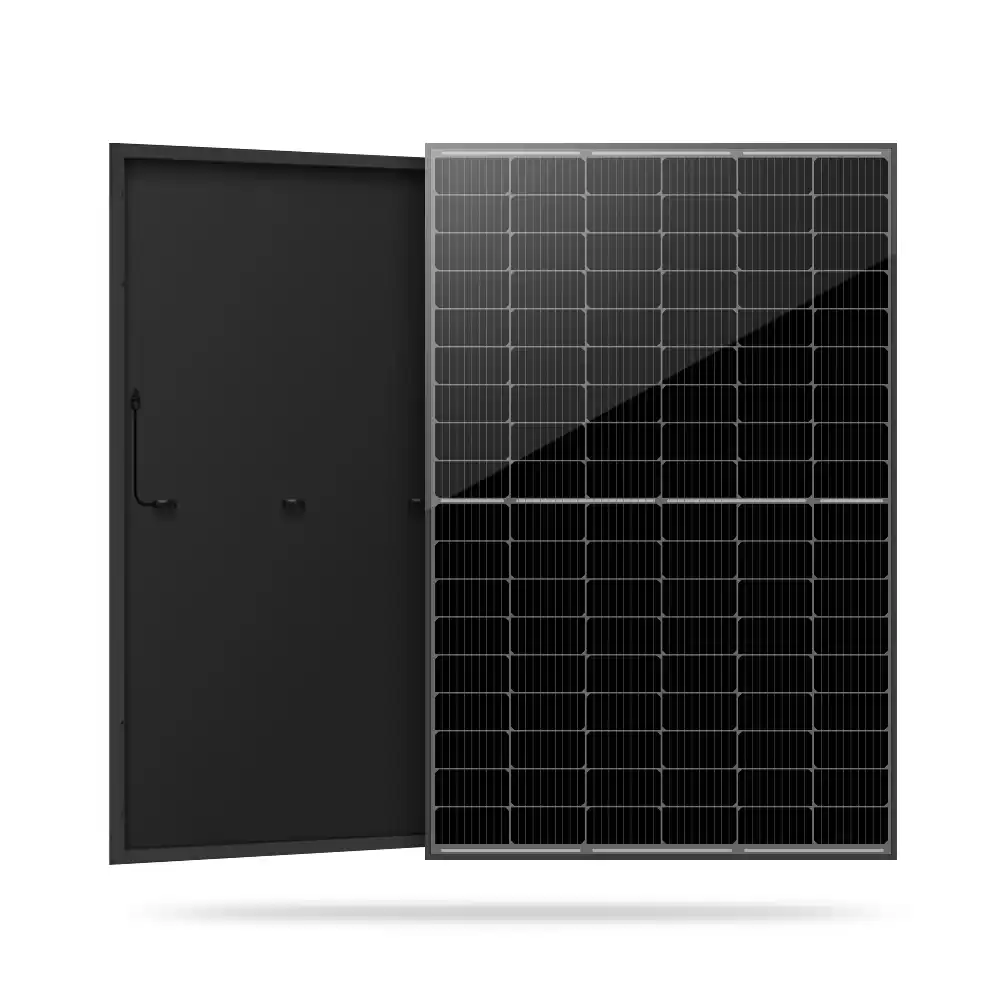

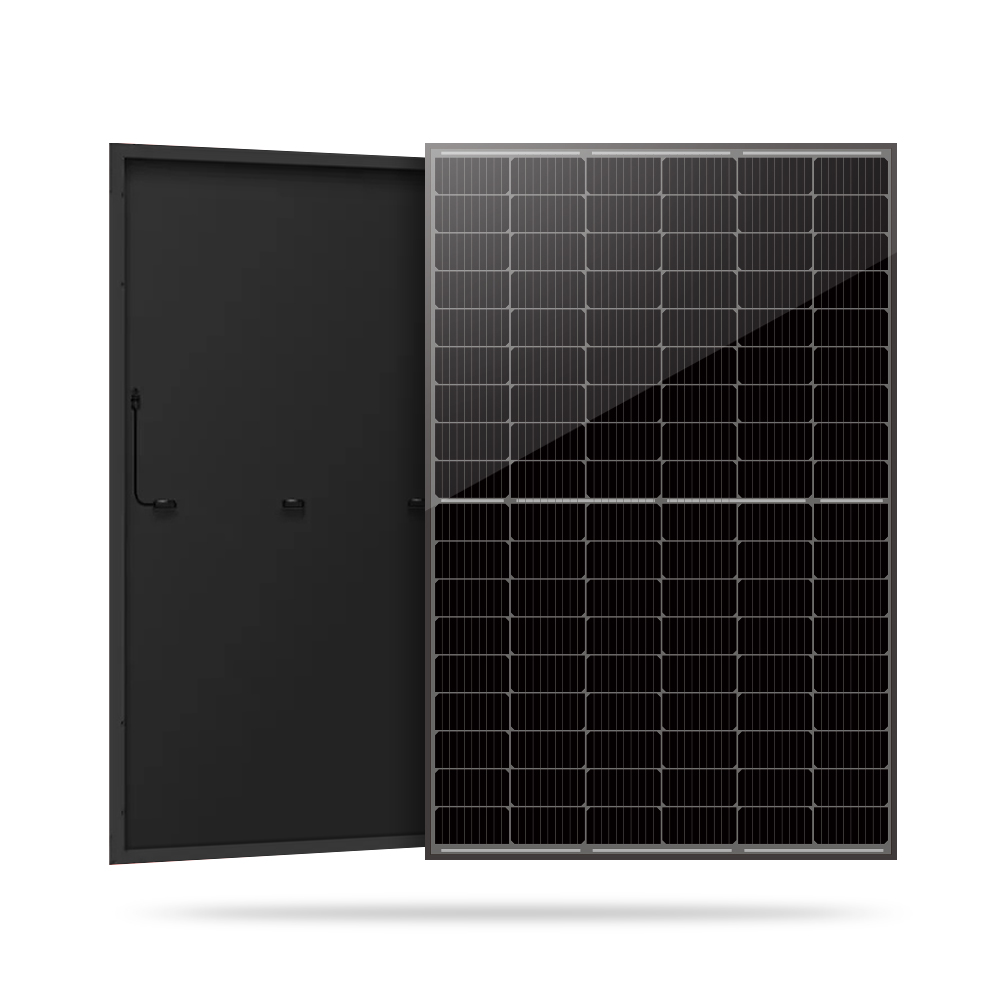

All Black Photovoltaic Solar Panels 400W 410W 420W Mono Paneles Solares

UNI 5 Series 182mm Solar Cell 108 Half Cells Multi Busbar Solar Panel 400W 410W 415 Wp 420W  425 Watt

Tier 1 Factory Direct  Grade A Monocrystalline PERC MBB Photovoltaic Solar Panel PV Module



United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.

Quality is the Company Culture of UNITED ENERGY!

1. Smart Soldering-Uniform smart soldering increases the power and efficiency of the module, and improves the power load capacity

2. Gallium-doped technology overcomes LID degradation and guarantees the long-term power generation of the module.

3. Smart Module Packaging and Logistics-Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.

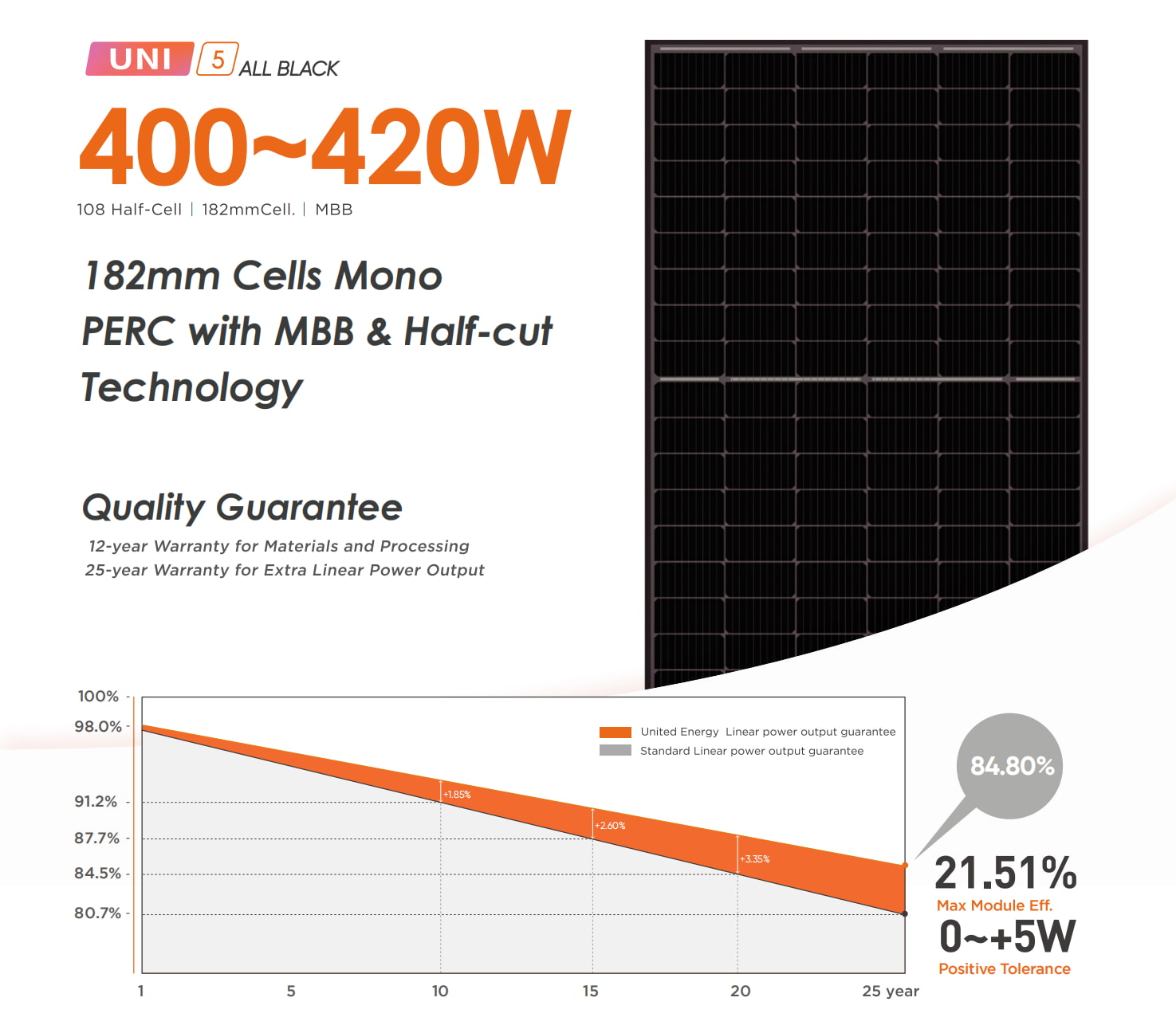

4. Superior Warranty-12 years products warranty  25 years linear power output warranty

5. Full set of safety certification and regulation, meet certificate requirements in most of the countries.



Electrical Specification

Maximum Power (Pmax/W)

400

405

410

415

420

Maximum Power Voltage (Vmp/V)

31.01

31.16

31.31

31.46

31.61

Maximum Power Current (Imp/A)

12.9

13

13.09

13.19

13.29

Open Circuit Voltage (Voc/V)

36.78

36.93

37.08

37.23

37.38

Short Circuit Current (Isc/A)

13.52

13.61

13.7

13.8

13.89

Module Efficiency (%)

20.5

20.7

21

21.3

21.5

Power Output Tolerance (W)

0~+5W

Temperature Coefficient of Isc

+0.05%/°C

Temperature Coefficient of Voc

-0.28%/°C

Temperature Coefficient of Pmax

-0.36%/°C



Advantage of United Energy Solar Panel

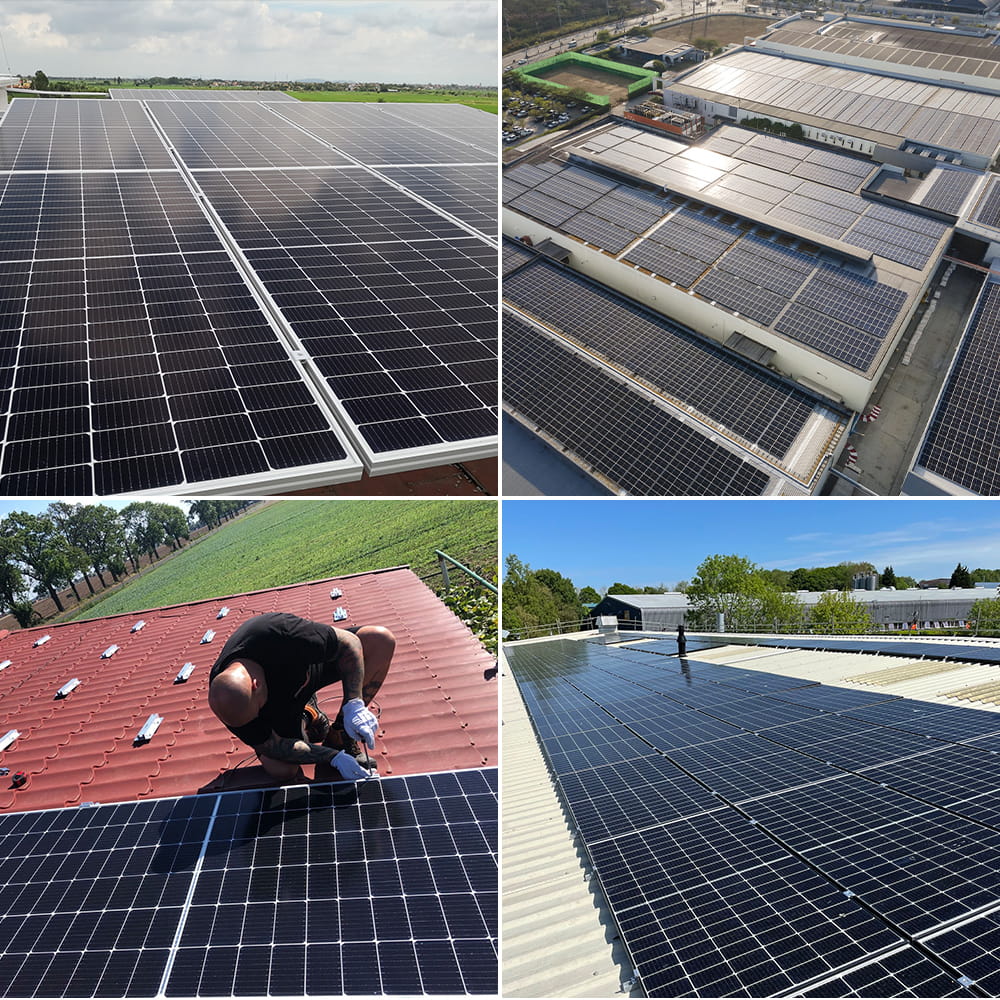

1.Great for residential rooftop application.Maximize limited space with up to 210 W/m2 power density

2.Multi-busbar cell technology with MBB PV cell technology, United Energy panels identify 10 / 11 busbar as the best solution by taking comprehensive account of solar cell efficiency, production yield and cost.

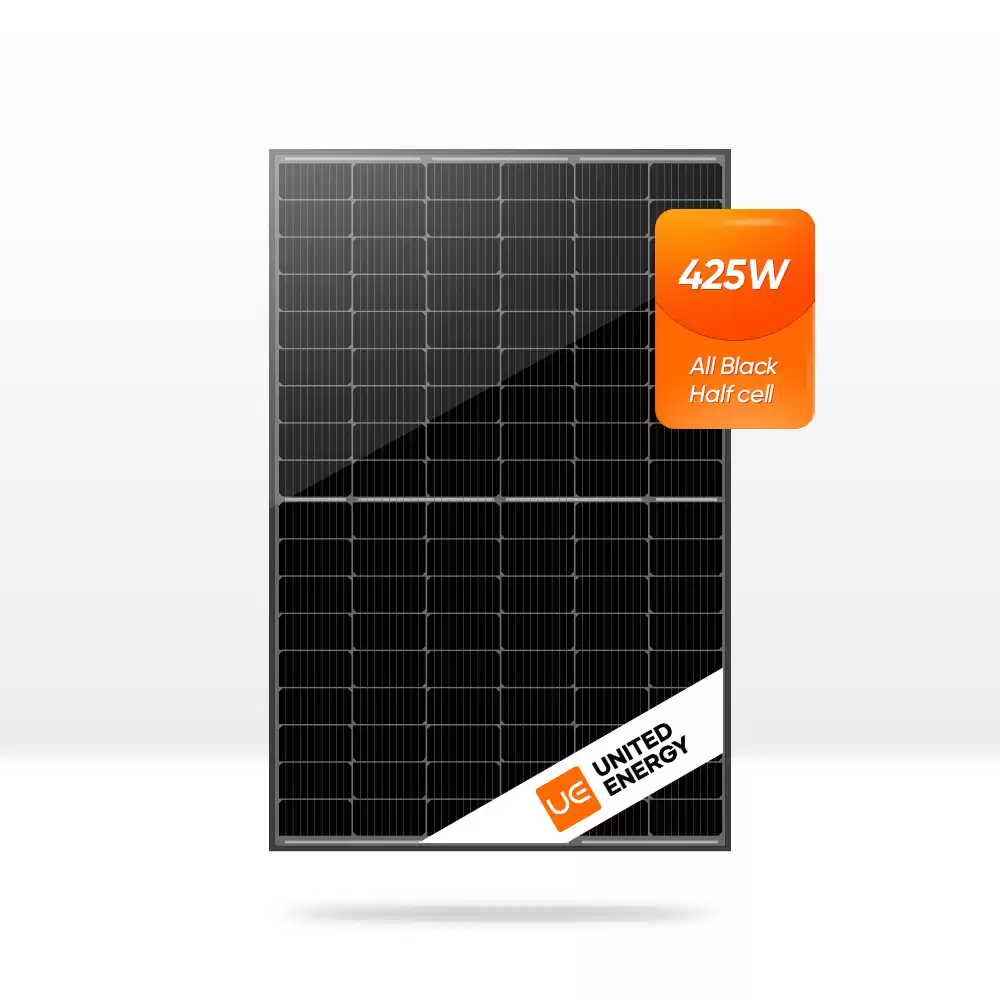

3.Max Power 425w.



FAQ:

What watts of this panel?

Mono 410w 415w 420w 425w solar panel.



What dimension of this panel?

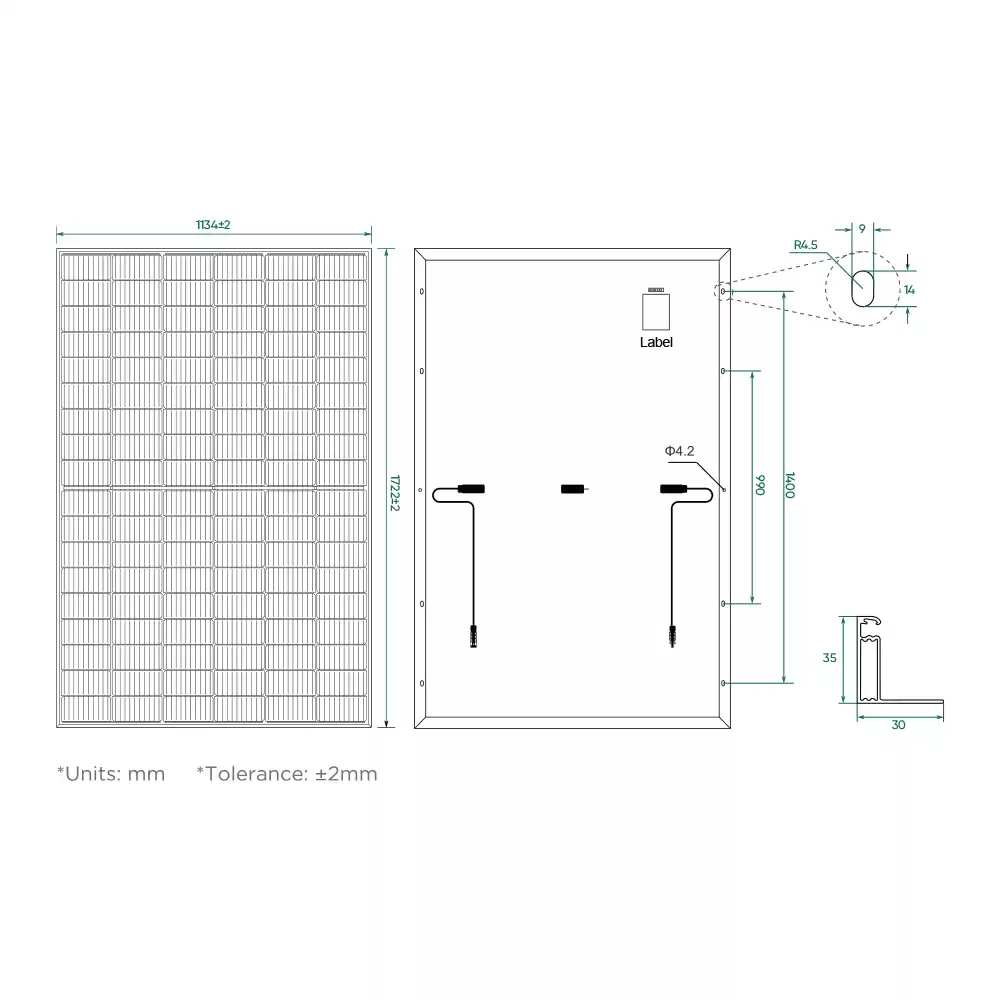

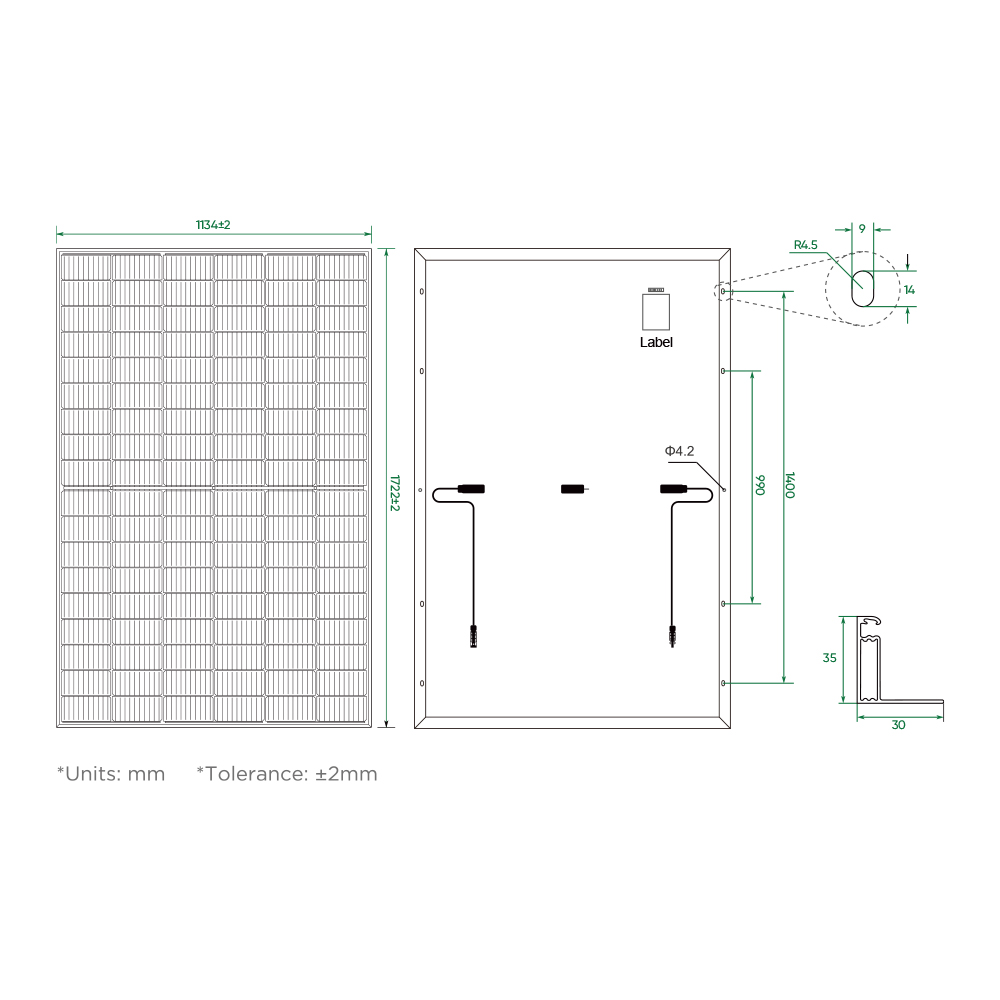

1722×1134×30mm



How much is the loading quantity and shipping method?

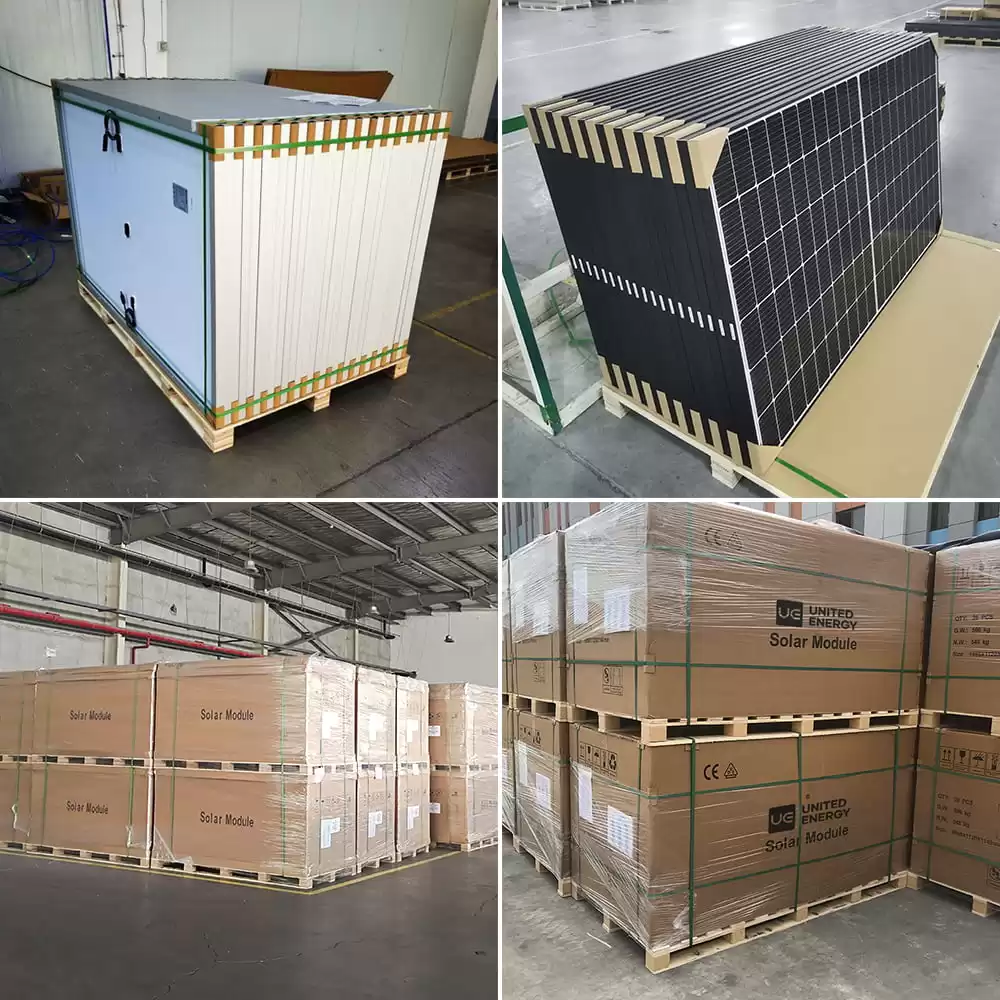

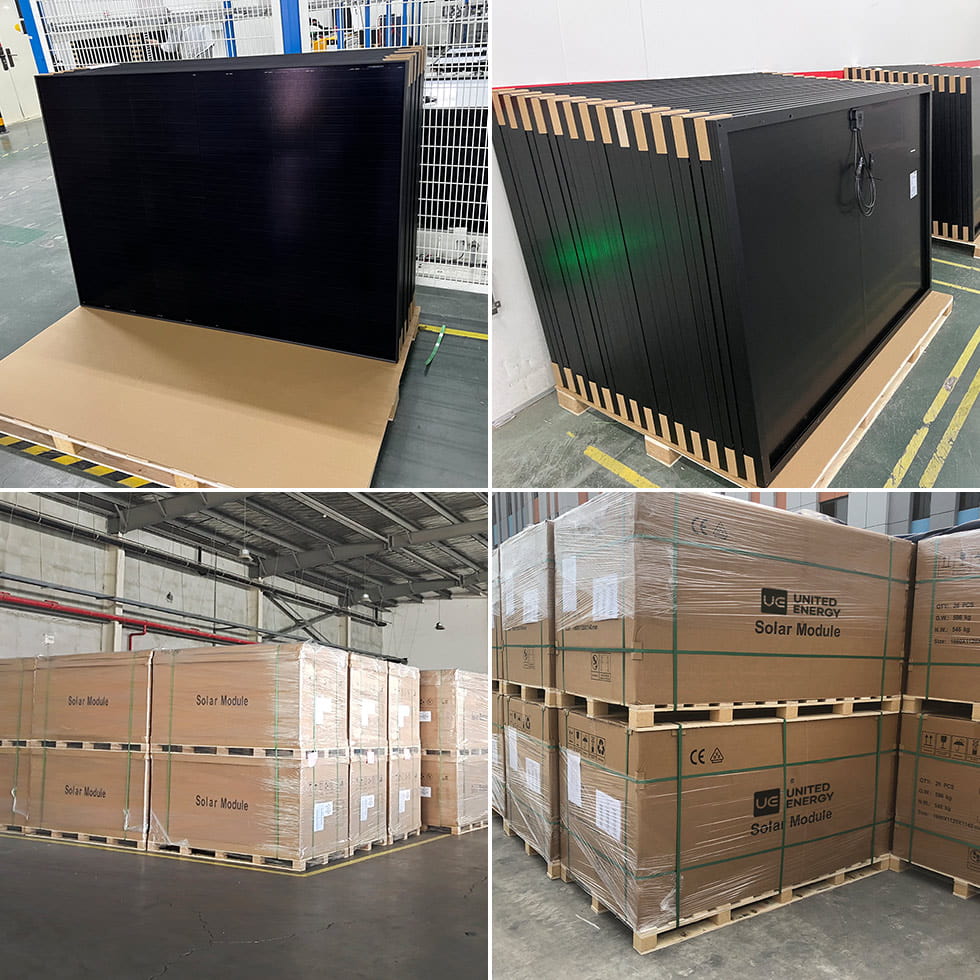

36pcs/pallet; 216pcs/20ft; 936pcs/40HQ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.



How long is the Delivery time?

Normally production will takes around 10 workings days, depends on the order quantity.
