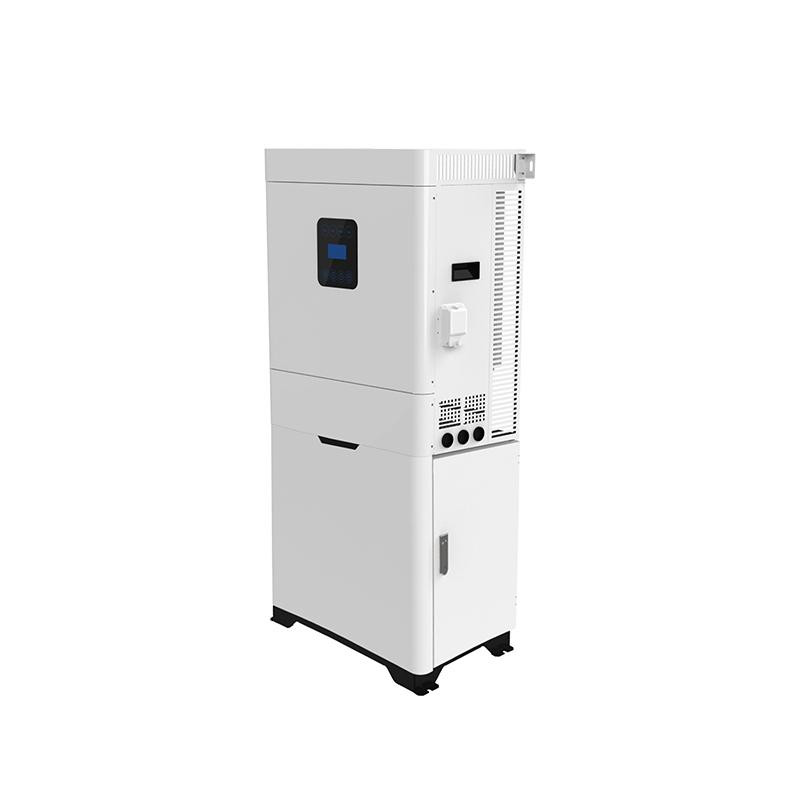

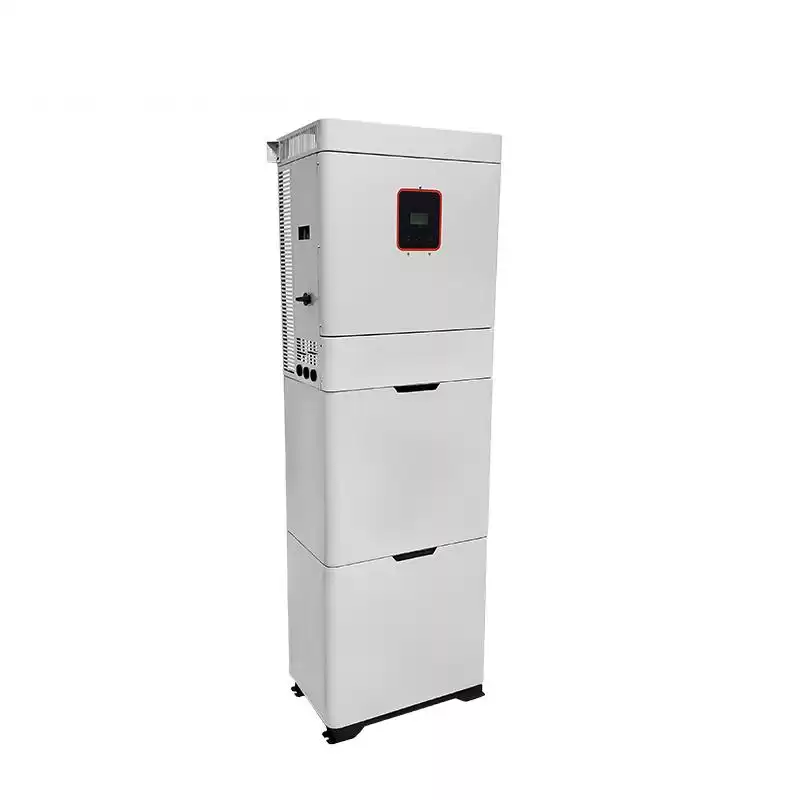

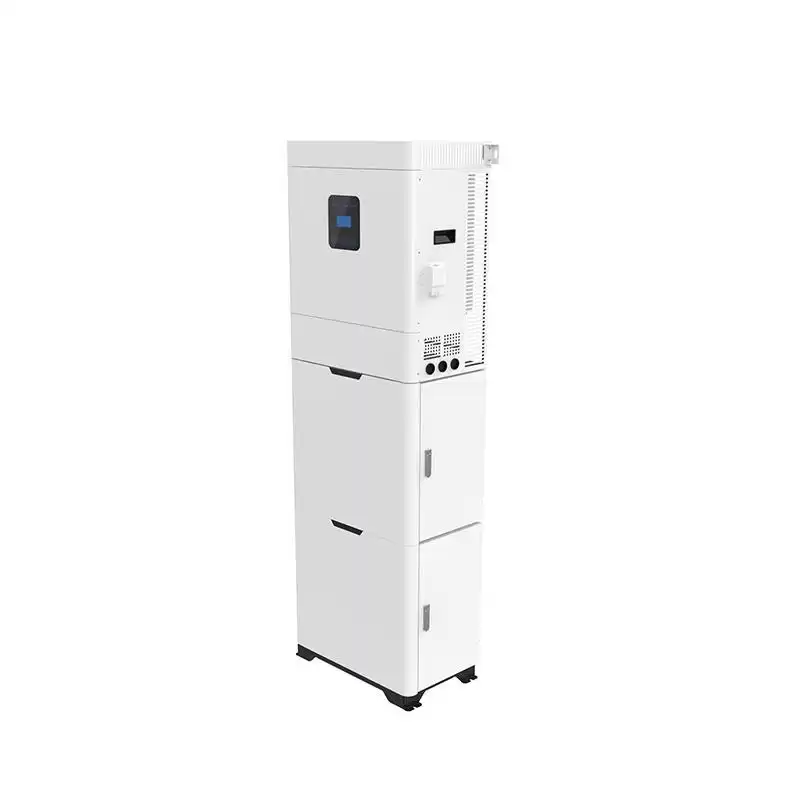

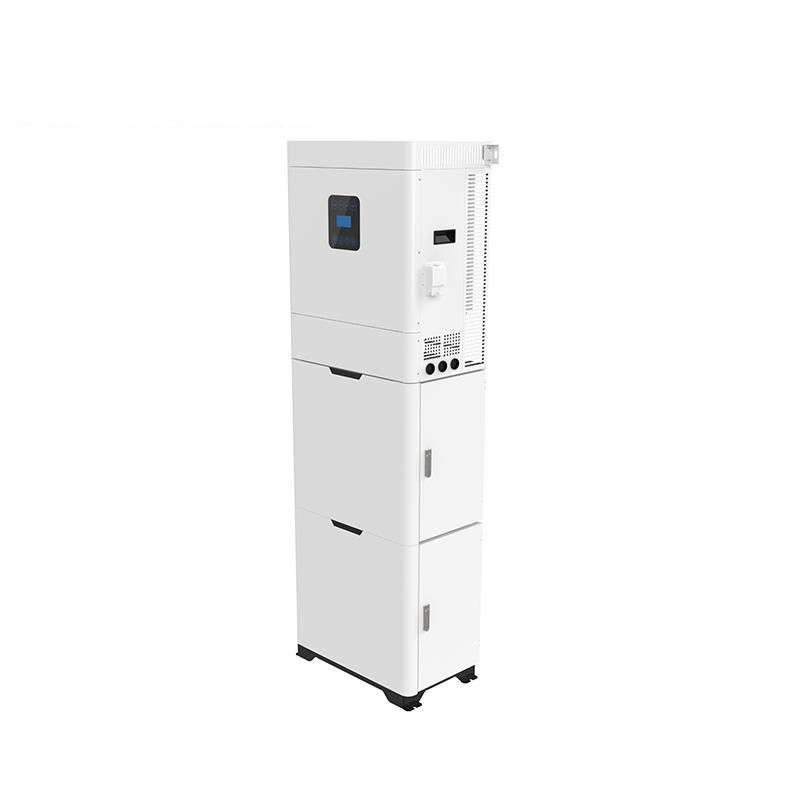

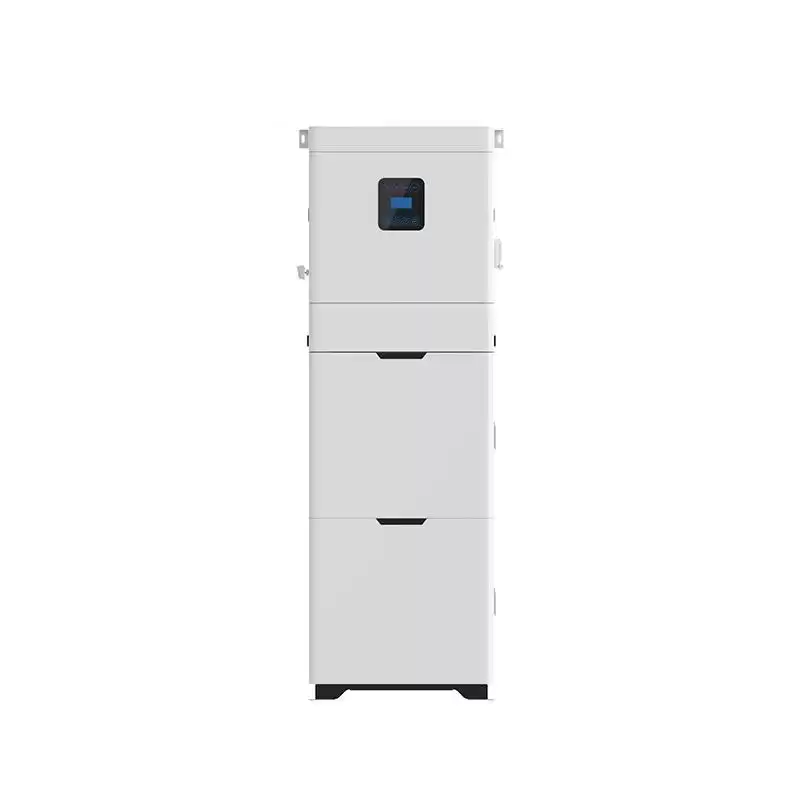

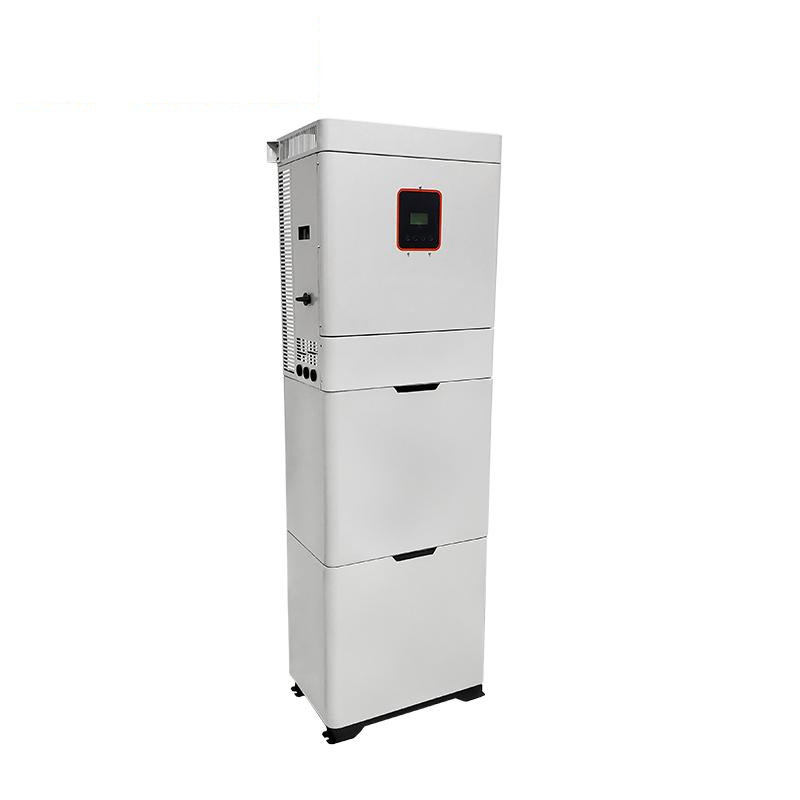

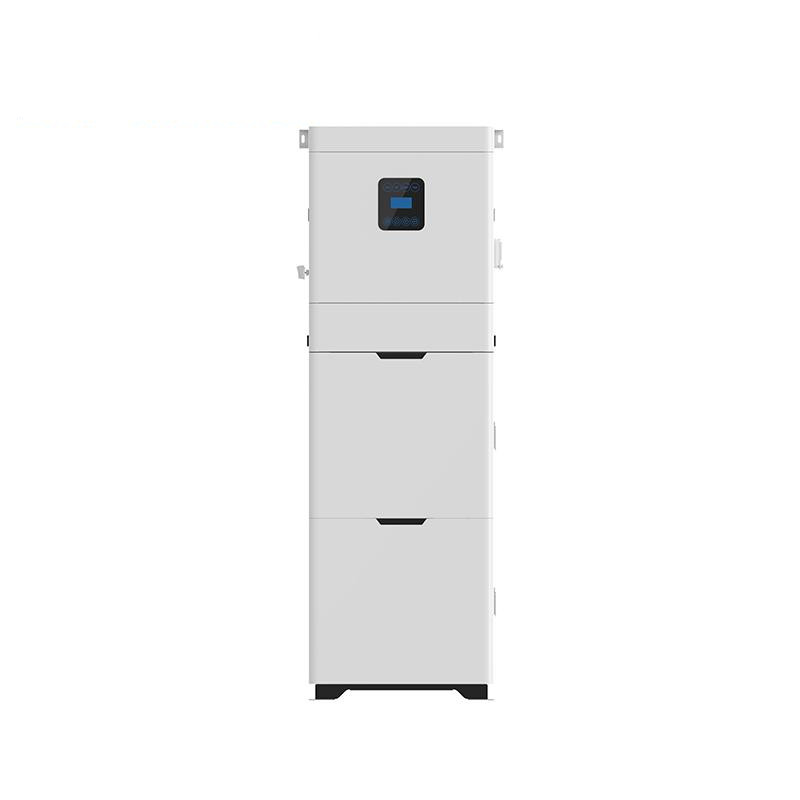

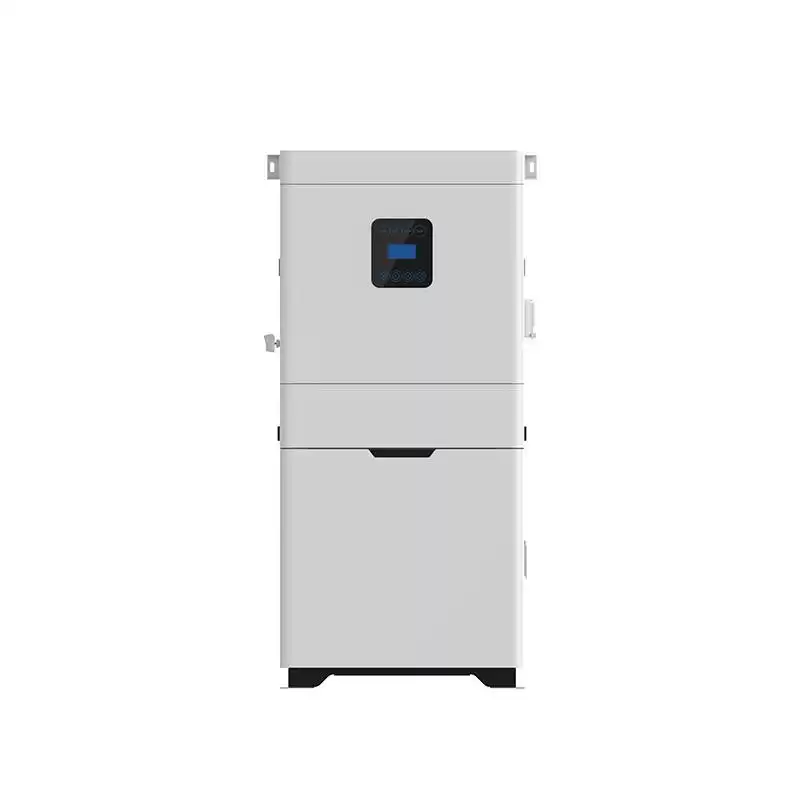

FOTOVO 220v Single-phase All In One Solar Energy Storage System
Product Detail

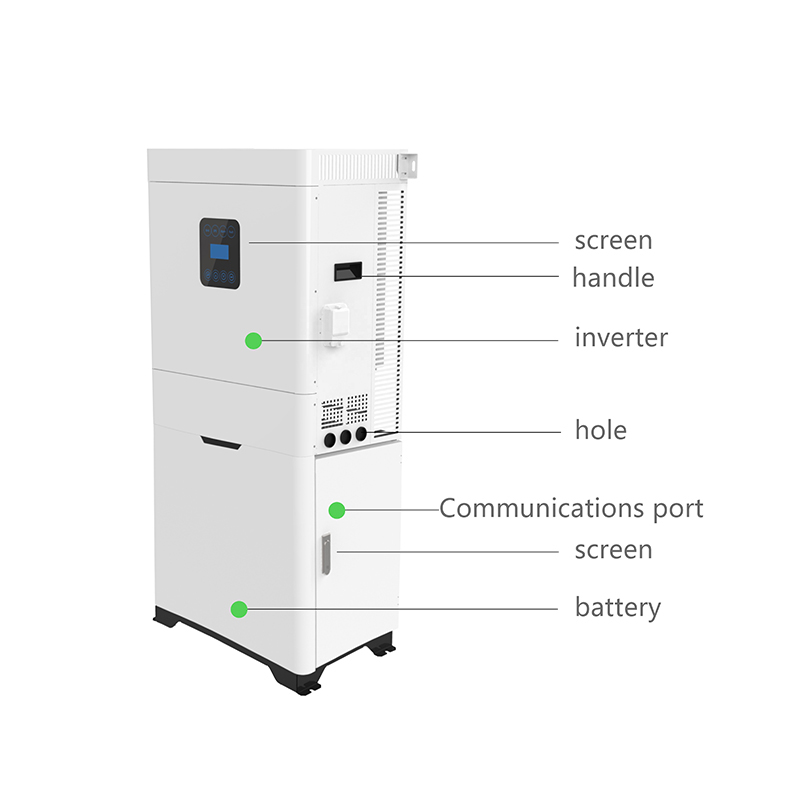

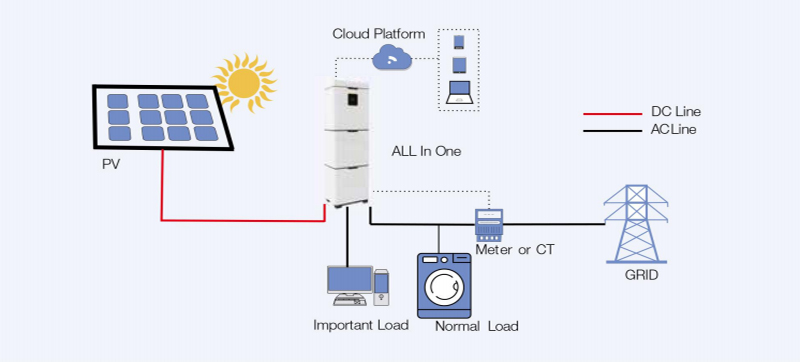

Working Diagram
-
Simple connection and installation,saving installation time and cost .
-
Expandable system design,convenient for capacity expansion.
-
Overall solution of home smart energy.
|
Technical Details
Inverter Parameters
|
|
Max.Input Power
|
7000w
|
|
Max.Input Current
|
2*14A
|
|
Max.PV Voltage
|
550V
|
|
MPPT Tracker/strings
|
2/1
|
|
MPPT Range
|
125-500V
|
|
AC Output
|
|
Rated output power
|
5000w
|
|
Rated output Current
|
21.7A
|
|
Type of grid connection
|
L+N+PE
|
|
Rated output voltage
|
230V
|
|
Grid voltage range
|
180-270V
|
|
Rated output frequency
|
50hZ/60hz
|
|
PF
|
0.99lagging-0.99leading
|
|
EPS Output
|
|
Rated output power
|
5000w
|
Rated output Current
|
21.7A
|
|
Rated output voltage
|
230V
|
|
Rated output frequency
|
50HZ/60HZ
|
|
THDU
|
<2%
|
|
Overload capacity
|
110%,60S/120%,30S/150%,10S
|
|
Battery Technical Parameters
|
|
battery type
|
Lithium iron phosphate
|
|
Battery capacity
|
2.4--14.4KWH
|
|
MAX.parallel batteries
|
6
|
|
Life
|
>10years(25℃/77F)F
|
|
Charge/Discharge Current
|
95/110A
|
System parameters
|
|
Protection class
|
IP20
|
|
MPPT efficiency
|
99.9%
|
|
Max.efficiency
|
97.6%
|
|
Iverter topology
|
Without transformer
|
|
Self-consumption
|
<3W
|
|
Interface:rs485/wifi/can/drm
|
yes/opt/yes/yes
|
|
display
|
LCD
|
|
Operating temperature
|
-10℃~60℃
|
|
Relative Humidity
|
15%-85%（non-condensing）
|
|
Altitude
|
2000m
|
|
Dimensions(W/D/H)mm
|
580/350/1800mm
|
|
Weight
|
70kg
|
|
Safety regulations
|
IEC 62109-1&-2，IEC 62477,CE-EMC
|

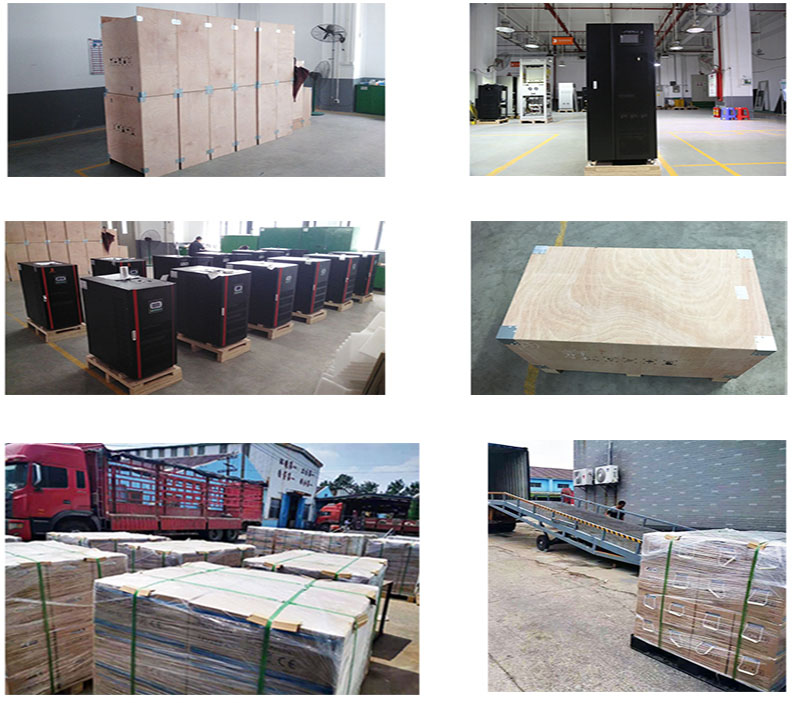

Packing&Delivery

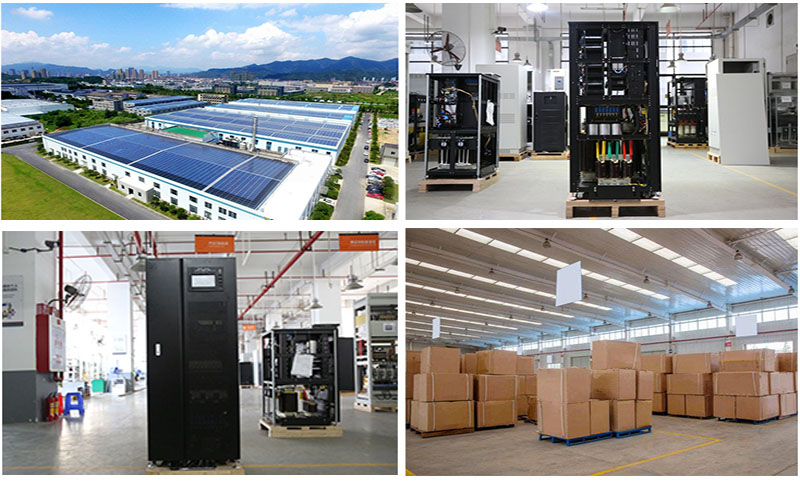

Factory
