Feature
1. Integrated design and source, high capacity LiFePO4 lithium battery, high energy, and long life,
light weights, green and environmental protection, do not produce any harmful substances.
2. Philips LED chip with high light efficiency which can reach 180LM/W，and whole lamp light
efficiency can reach 160LM/W at least
3. All series use MPPT controller which can increase 15%-30% charge efficiency
4. Design with high efficiency solar cell (＞22%)
5. Convenient installation and maintenance, no need of cable installation or special light pole,
functional components modular design, installation and maintenance, convenient and
quick replacement.
Data Sheet
|
|
Model
|
FL-A2-30W
|
FL-A2-40W
|
FL-A2-60W
|
FL-A2-80W
|
FL-A2-100W
|
|
|
Solar Panel
|
55w
|
65w
|
105w
|
140w
|
145w
|
|
|
High capacity lithium battery
|
260wh
|
350wh
|
532wh
|
710wh
|
888wh
|
|
|
Luminous flux(All light pattern)
|
4800lm
|
6400lm
|
9600lm
|
12800lm
|
16000lm
|
|
|
Mounting Height
|
4-5M
|
4-5M
|
5-6M
|
6-8M
|
6-8M
|
|
|
Solar panel charge time(with strong sunlight)
|
8 hours by bright sunlight
|
|
|
Rainy days support
|
3-5days with full charging
|
|
|
Working time(per day)
|
≥12hours
|
|
|
Color Temperature
|
3000-7000k(optional
|
|
|
Light Pole diameter
|
70-114MM
|
|
|
Storage temperature
|
0-55℃
|
|
|
Operating Humidity
|
90RH%≤
|
|
|
Waterproof level
|
IP65
|
|
|
Package Dimensions
|
1015*375*155mm
|
1155*385*155mm
|
1315*535*145mm
|
1585*535*150mm
|
1585*535*150mm
|

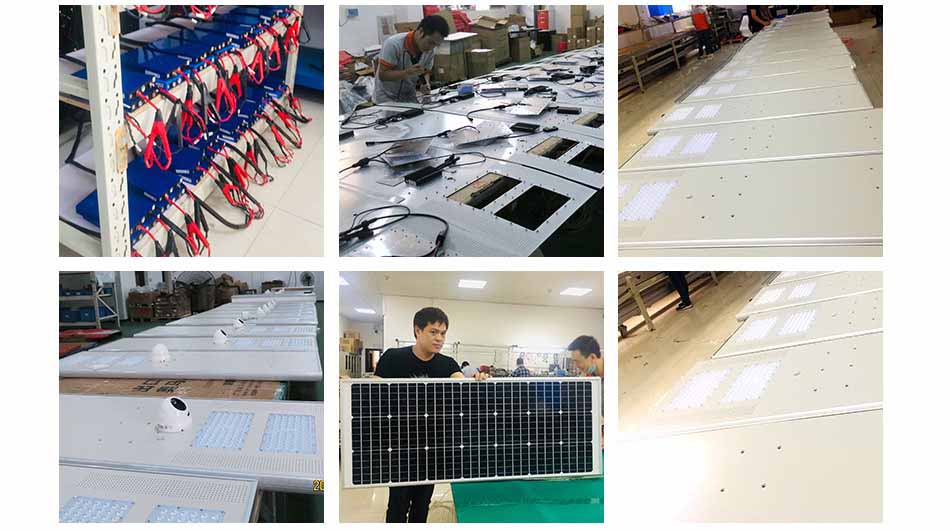

Producttion Line

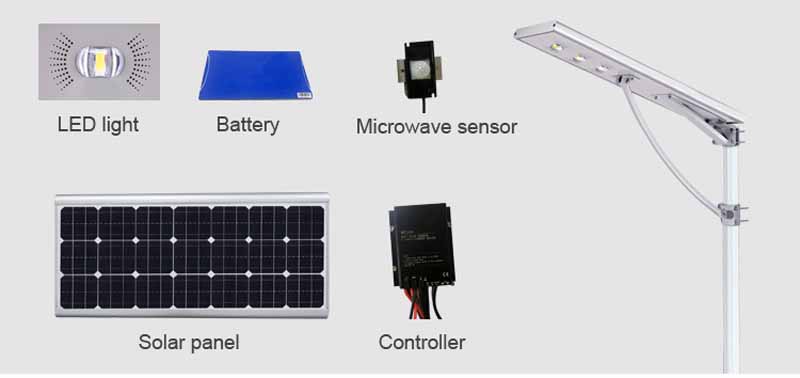

Product Details
--LED light : 40W / 50W
--Solar panel: MONO 80W 24V
--Controller: MPPT
--Microwave sensor: Body induction
--Lithium ternary battery: 40W 36AH 11.1V / 50W 40AH 11.1V
--Lifepo4 battery: 40W 32AH 12.8V / 50W 36AH 12.8V
Our Advantage
1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design
2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution
4. Experienced R&D team, be customer's professinonal power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
FAQ
Q1:Which kind of battery used for solar street light.
A1:Lifepo4 lithium battery.
Q2:How is the lifespan of solar street light ？
A2:It depend on the lifespan of lithium battery, statistical data is over 3 years.
Q3:How many years warranty period？
A3:We provide 2 years warranty for solar street light.
Q4:What's the lead time?
A4:Sample lead time:2 days.Order lead time:25-30 days
Q5:Where is your factory located? How can I visit there?
A5:Our factory is located in Guangzhou City, Guangdong Province, China,All our clients from home or abroad, are warmly welcome to visit us!
