All in One Waterproof 20W Solar Street LED Light
Product Description
Solar First Integrated solar street light has lower consumption, high-brightness, long service time, maintenance-free, and good water-proof and heat radiation performance. In addition, it is not the same with the ordinary solar street light that should install the light and solar panel separately, the light and the solar panel of integrated solar street light are integrated into one structure, which is easy to install.

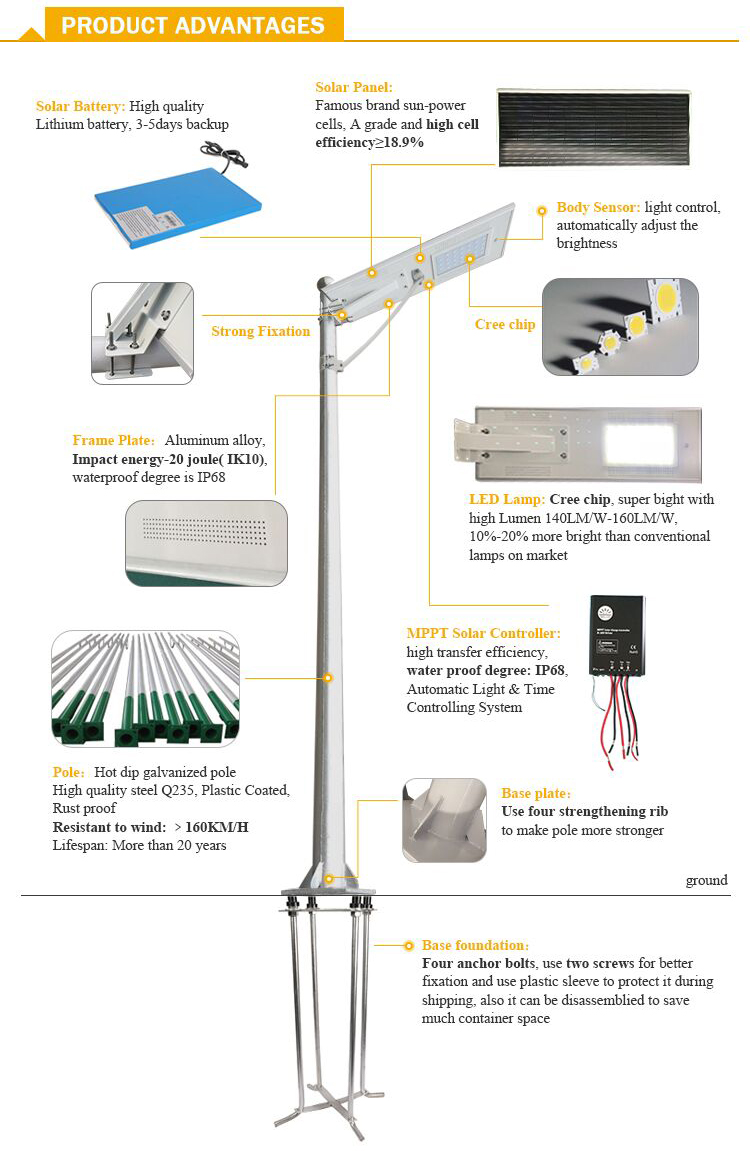

Advantages
1.All-in-one design simple but practical.
2.High quality die-casting aluminum structure.
3.Surface anti-aging electrostatic painting strong corrosion resistance.
4.Independent convection heat dissipation, reduce the thermal resistance, improve radiation efficiency.
5.Adjustable installation angle.
|

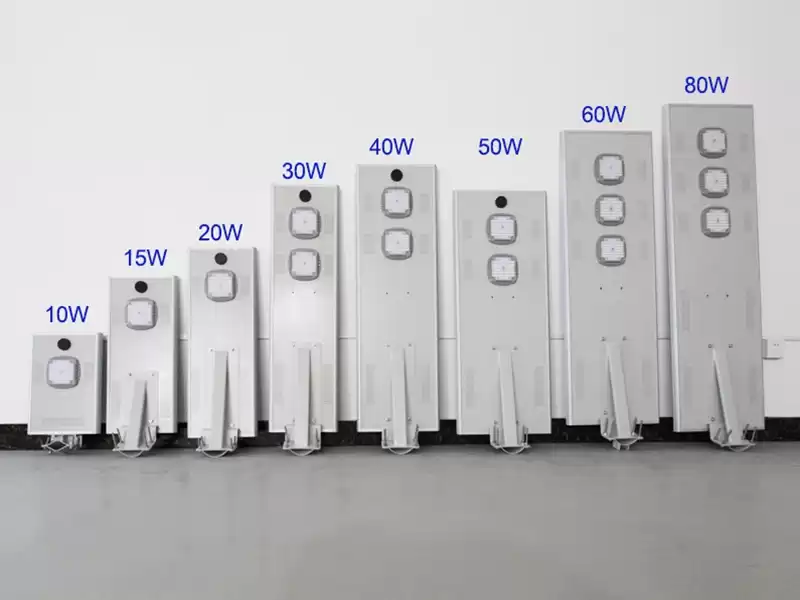

Model
|
SF-10W
|
SF-15W
|
SF-20W
|
SF-30W
|
SF-40W
|
SF-50W
|
SF-60W
|
SF-80W
|
|
Input Voltage
|
12V AC
|
|
Power
|
10W
|
15W
|
20W
|
30W
|
40W
|
50W
|
60W
|
80W
|
|
Luminous Flux
|
1000-1100
|
1500-1650
|
2000-2200
|
3000-3300
|
4000-4400
|
5000-5500
|
6000-6600
|
8000-8800
|
|
size(mm)
|
438*300*43
|
688*300*43
|
828*300*43
|
1078*300*43
|
1172*343*43
|
1078*426*43
|
1306*426*43
|
1470*426*43
|
|
Lamp pole height
|
3~4m
|
3~4m
|
3~5m
|
4~6m
|
4~8m
|
5~8m
|
6~8m
|
8~10m
|
|
Solar Module
|
17W
|
26W
|
35W
|
45W
|
60W
|
70W
|
90W
|
95W
|
|
Solar panel life
|
25 years
|
|
Lithium battery
|
12V 8.8AH
|
12V 15.4AH
|
12V 20AH
|
12V 24.2AH
|
12V 33AH
|
12V 38AH
|
24V 50AH
|
24V 60AH
|
Operation mode
|
1.It has five periods of light adjustment and morning light design, working time is 0 to 15 hours, power 0% to100% can be set.
2.It has microwave human induction, time delay human induction function. Dimming function, output different power at each time period. The output power of the battery can be adjusted intelligently according to the capacity of the battery.
|

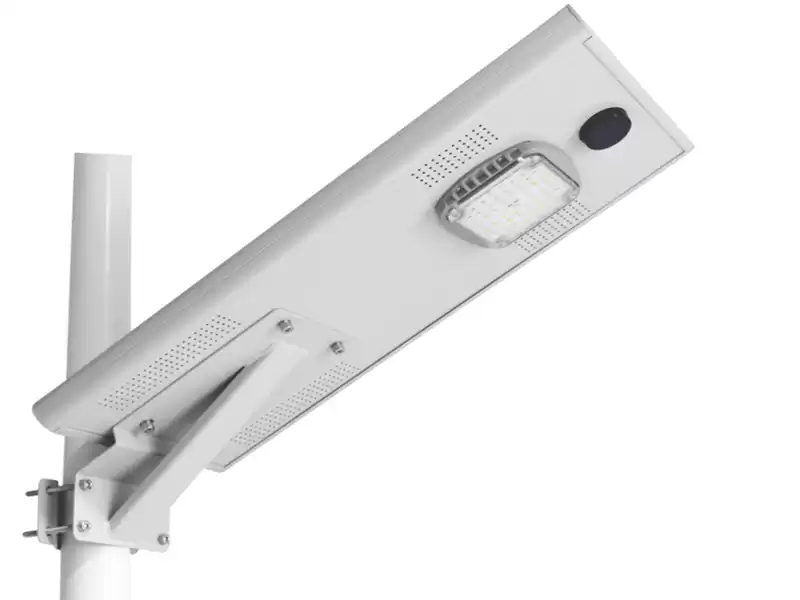

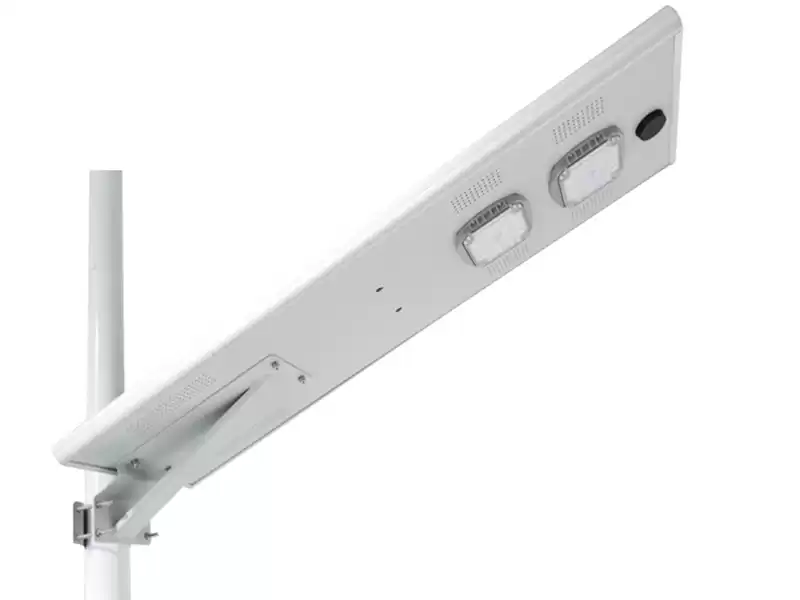

Product Details

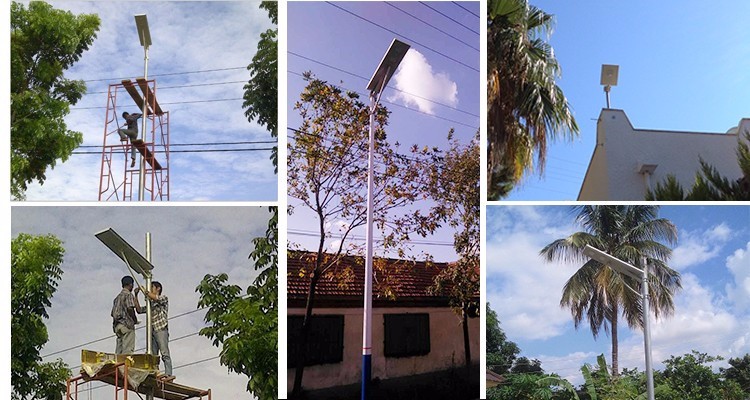

Applications
