Unit No.
|
Shaft Dia
|

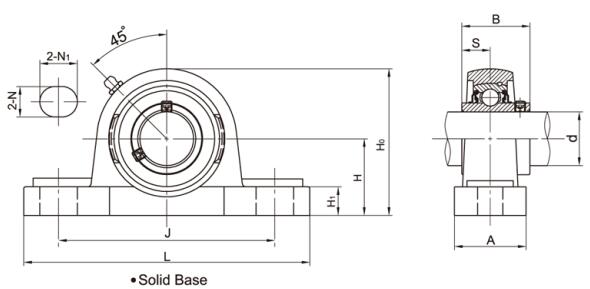

Dimensions(mm)
|
Bolt Size (mm)
|
Weight
|
|
d
|
H
|
L
|
J
|
A
|
N
|
N1
|
H1
|
Ho
|
B
|
S
|
(kg)
|
|
(in)
|
(mm)
|
|
SSUCP204ESB
|
|
20
|
33.3
|
127
|
95
|
38
|
13
|
19
|
15
|
64
|
31
|
12.7
|
M10
|
0.79
|
|
SSUCP204-12ESB
|
3/4
|
|
33.3
|
127
|
95
|
38
|
13
|
19
|
15
|
64
|
31
|
12.7
|
M10
|
0.79
|
|
SSUCP205ESB
|
|
25
|
36.5
|
140
|
105
|
38
|
13
|
19
|
16.5
|
70
|
34.1
|
14.3
|
M10
|
0.95
|
|
SSUCP205-14ESB
|
7/8
|
|
36.5
|
140
|
105
|
38
|
13
|
19
|
16.5
|
70
|
34.1
|
14.3
|
M10
|
0.95
|
|
SSUCP205-15ESB
|
15/16
|
|
36.5
|
140
|
105
|
38
|
13
|
19
|
16.5
|
70
|
34.1
|
14.3
|
M10
|
0.95
|
|
SSUCP205-16ESB
|
1
|
|
36.5
|
140
|
105
|
38
|
13
|
19
|
16.5
|
70
|
34.1
|
14.3
|
M10
|
0.95
|
|
SSUCP206ESB
|
|
30
|
42.9
|
165
|
121
|
48
|
17
|
21
|
18
|
82
|
38.1
|
15.9
|
M12
|
1.49
|
|
SSUCP206-17ESB
|
1-1/16
|
|
42.9
|
165
|
121
|
48
|
17
|
21
|
18
|
82
|
38.1
|
15.9
|
M12
|
1.49
|
|
SSUCP206-18ESB
|
1-1/8
|
|
42.9
|
165
|
121
|
48
|
17
|
21
|
18
|
82
|
38.1
|
15.9
|
M12
|
1.49
|
|
SSUCP206-19ESB
|
1-3/16
|
|
42.9
|
165
|
121
|
48
|
17
|
21
|
18
|
82
|
38.1
|
15.9
|
M12
|
1.49
|
|
SSUCP206-20ESB
|
1-1/4
|
|
42.9
|
165
|
121
|
48
|
17
|
21
|
18
|
82
|
38.1
|
15.9
|
M12
|
1.49
|
|
SSUCP207ESB
|
|
35
|
47.6
|
167
|
127
|
48
|
17
|
21
|
19
|
92
|
42.9
|
17.5
|
M12
|
1.93
|
|
SSUCP207-20ESB
|
1-1/4
|
|
47.6
|
167
|
127
|
48
|
17
|
21
|
19
|
92
|
42.9
|
17.5
|
M12
|
1.93
|
|
SSUCP207-21ESB
|
1-5/16
|
|
47.6
|
167
|
127
|
48
|
17
|
21
|
19
|
92
|
42.9
|
17.5
|
M12
|
1.93
|
|
SSUCP207-22ESB
|
1-3/8
|
|
47.6
|
167
|
127
|
48
|
17
|
21
|
19
|
92
|
42.9
|
17.5
|
M12
|
1.93
|
|
SSUCP207-23ESB
|
1-7/16
|
|
47.6
|
167
|
127
|
48
|
17
|
21
|
19
|
92
|
42.9
|
17.5
|
M12
|
1.93
|
|
SSUCP208ESB
|
|
40
|
49.2
|
184
|
137
|
54
|
17
|
22
|
19
|
99
|
49.2
|
19
|
M12
|
2.26
|
|
SSUCP208-24ESB
|
1-1/2
|
|
49.2
|
184
|
137
|
54
|
17
|
22
|
19
|
99
|
49.2
|
19
|
M12
|
2.26
|
|
SSUCP208-25ESB
|
1-9/16
|
|
49.2
|
184
|
137
|
54
|
17
|
22
|
19
|
99
|
49.2
|
19
|
M12
|
2.26
|
|
SSUCP209ESB
|
|
45
|
54
|
190
|
146
|
54
|
17
|
22
|
20
|
108
|
49.2
|
19
|
M12
|
2.76
|
|
SSUCP209-26ESB
|
1-5/8
|
|
54
|
190
|
146
|
54
|
17
|
22
|
20
|
108
|
49.2
|
19
|
M12
|
2.76
|
|
SSUCP209-27ESB
|
1-11/16
|
|
54
|
190
|
146
|
54
|
17
|
22
|
20
|
108
|
49.2
|
19
|
M12
|
2.76
|
|
SSUCP209-28ESB
|
1-3/4
|
|
54
|
190
|
146
|
54
|
17
|
22
|
20
|
108
|
49.2
|
19
|
M12
|
2.76
|
|
SSUCP210ESB
|
|
50
|
57.2
|
206
|
159
|
60
|
20
|
25
|
22
|
112
|
51.6
|
19
|
M16
|
3.31
|
|
SSUCP210-30ESB
|
1-7/8
|
|
57.2
|
206
|
159
|
60
|
20
|
25
|
22
|
112
|
51.6
|
19
|
M16
|
3.31
|
|
SSUCP210-31ESB
|
1-15/16
|
|
57.2
|
206
|
159
|
60
|
20
|
25
|
22
|
112
|
51.6
|
19
|
M16
|
3.31
|
|
SSUCP210-32ESB
|
2
|
|
57.2
|
206
|
159
|
60
|
20
|
25
|
22
|
112
|
51.6
|
19
|
M16
|
3.31
|
|
SSUCP211ESB
|
|
55
|
63.5
|
219
|
171
|
60
|
20
|
25
|
23
|
124
|
55.6
|
22.2
|
M16
|
3.98
|
|
SSUCP211-32ESB
|
2
|
|
63.5
|
219
|
171
|
60
|
20
|
25
|
23
|
124
|
55.6
|
22.2
|
M16
|
3.98
|
|
SSUCP211-34ESB
|
2-1/8
|
|
63.5
|
219
|
171
|
60
|
20
|
25
|
23
|
124
|
55.6
|
22.2
|
M16
|
3.98
|
|
SSUCP211-35ESB
|
2-3/16
|
|
63.5
|
219
|
171
|
60
|
20
|
25
|
23
|
124
|
55.6
|
22.2
|
M16
|
3.98
|
|
SSUCP212ESB
|
|
60
|
69.9
|
238
|
184
|
70
|
20
|
25
|
25
|
137
|
65.1
|
25.4
|
M16
|
5.42
|
|
SSUCP212-36ESB
|
2-1/4
|
|
69.9
|
238
|
184
|
70
|
20
|
25
|
25
|
137
|
65.1
|
25.4
|
M16
|
5.42
|
|
SSUCP212-38ESB
|
2-3/8
|
|
69.9
|
238
|
184
|
70
|
20
|
25
|
25
|
137
|
65.1
|
25.4
|
M16
|
5.42
|
|
SSUCP212-39ESB
|
2-7/16
|
|
69.9
|
238
|
184
|
70
|
20
|
25
|
25
|
137
|
65.1
|
25.4
|
M16
|
5.42
|
Notes:1. Grease fittings also available at 90° positions.
2. Upon request,available with plastic close cap(CC) or open cap(OC) at one end. Ordering example: SSUCP204-12 CC.
3.Lubricated with food grade grease.
