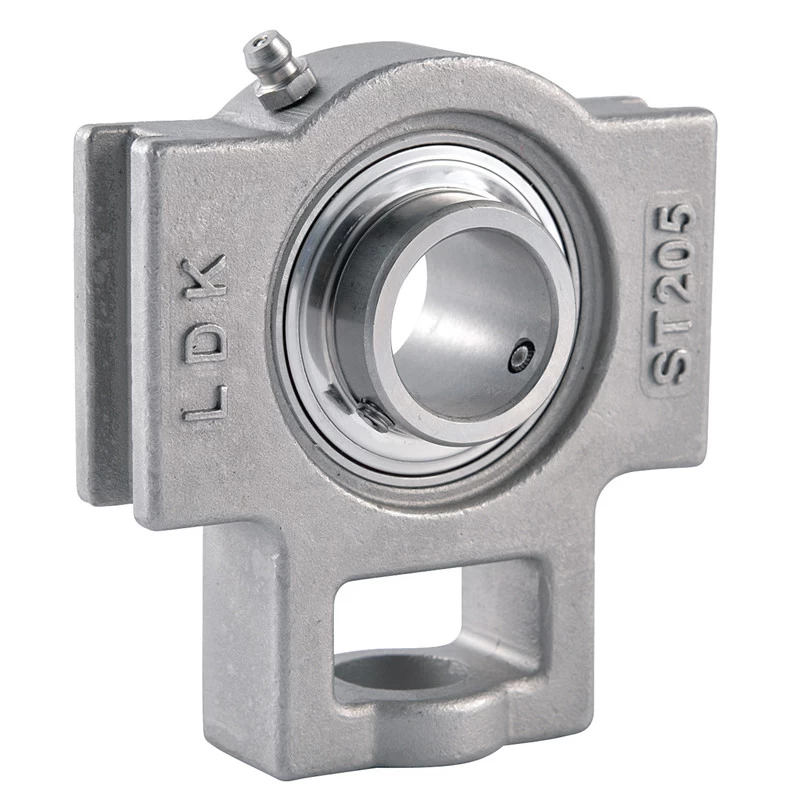

All Stainless Steel Bearing Units SSUCT2



SSUCT  All stainless steel take up units,Setscrew locking


Facebook Twitter Pinterest LinkedIn 分享

Stamped Steel Housing SSUCT206

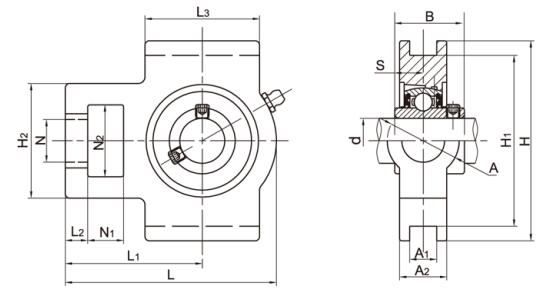

Unit No. Shaft Dia Dimensions(mm) Weight
d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B s (kg)
(in) (mm)
SSUCT204  20 16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 0.79
SSUCT204-12 3/4   16 10 51 32 19 51 12 76 89 94 32 21 61 31 12.7 0.79
SSUCT205   25 16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 0.84
SSUCT205-14 7/8   16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 0.84
SSUCT205-15 15/16   16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 0.84
SSUCT205-16 1   16 10 51 32 19 51 12 76 89 97 32 24 62 34.1 14.3 0.84
SSUCT206   30 16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 1.32
SSUCT206-17 1-1/16   16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 1.32
SSUCT206-18 1-1/8   16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 1.32
SSUCT206-19 1-3/16   16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 1.32
SSUCT206-20 1-1/4   16 10 56 37 22 57 12 89 102 113 37 28 70 38.1 15.9 1.32
SSUCT207   35 16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 1.72
SSUCT207-20 1-1/4   16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 1.72
SSUCT207-21 1-5/16   16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 1.72
SSUCT207-22 1-3/8   16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 1.72
SSUCT207-23 1-7/16   16 13 64 37 22 64 12 89 102 129 37 30 78 42.9 17.5 1.72
SSUCT208   40 19 16 83 49 29 83 16 102 114 144 49 33 88 49.2 19 2.52
SSUCT208-24 1-1/2   19 16 83 49 29 83 16 102 114 144 49 33 88 49.2 19 2.52
SSUCT208-25 1-9/16   19 16 83 49 29 83 16 102 114 144 49 33 88 49.2 19 2.52
SSUCT209   45 19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 2.52
SSUCT209-26  1-5/8    19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 2.52
SSUCT209-27 1-11/16   19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 2.52
SSUCT209-28 1-3/4   19 16 83 49 29 83 16 102 117 144 49 35 87 49.2 19 2.52
SSUCT210   50 19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 2.69
SSUCT210-30  1-7/8    19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 2.69
SSUCT210-31 1-15/16   19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 2.69
SSUCT210-32 2   19 16 83 49 29 86 16 102 117 149 49 37 90 51.6 19 2.69
SSUCT211   55 25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 4.04
SSUCT211-32  2   25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 4.04
SSUCT211-34 2-1/8   25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 4.04
SSUCT211-35 2-3/16   25 19 102 64 35 95 22 130 146 171 64 38 106 55.6 22.2 4.04
SSUCT212   60 32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 5.00
SSUCT212-36  2-1/4    32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 5.00
SSUCT212-38 2-3/8 32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 5.00
SSUCT212-39 2-7/16   32 19 102 64 35 102 22 130 146 194 64 42 119 65.1 25.4 5.00


Notes: 1.Upon request,available with plastic close cap(CC) or open cap(OC) at one end. Ordering example SSUCT204-12 CC.

         2.Lubricated with food grade grease.
