All Stainless Steel Bearing Units SSUET2

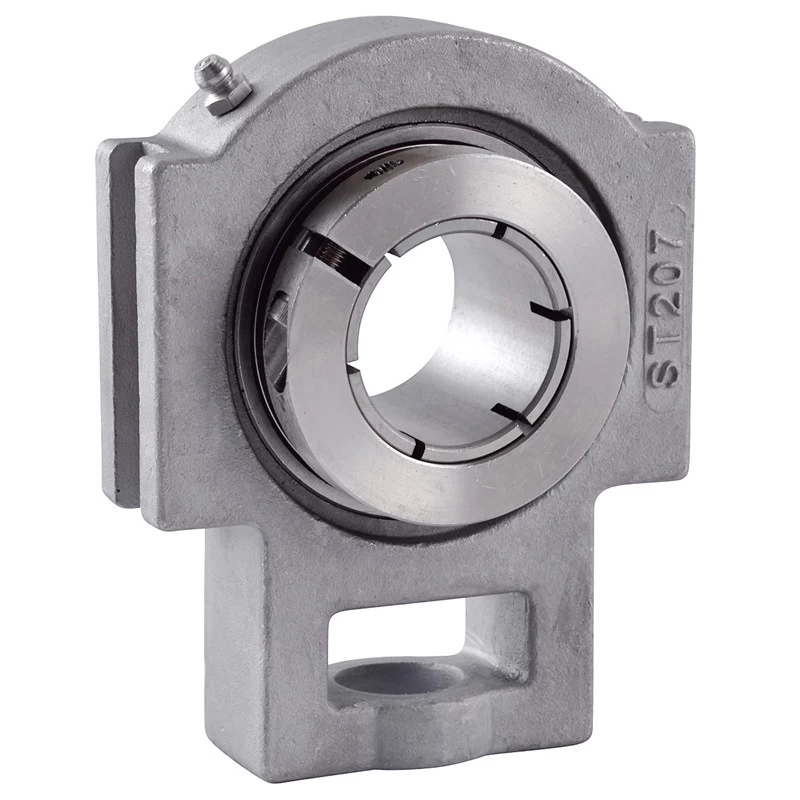

SSUET All stainless steel take up units,concerntric locking



Facebook Twitter Pinterest LinkedIn 分享

SSUET208 Stamped Steel Bearing Housing

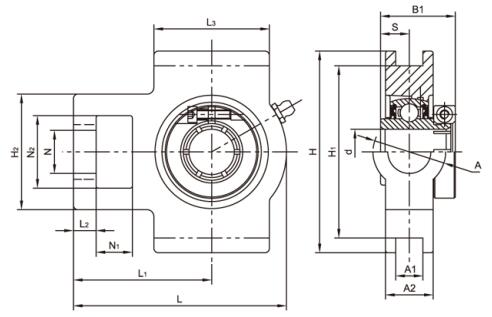

Unit No. Shaft Dia Dimensions(mm) Weight
d N1 L2 H2 N2 N L3 A1 H1 H L A A2 L1 B1 S (kg)
(in) (mm)
SSUET204    20 16 10 51 32 19 51 12 76 89 94 32 21 61 33 12.7 0.82
SSUET204-12 3/4   16 10 51 32 19 51 12 76 89 94 32 21 61 33 12.7 0.82
SSUET205   25 16 10 51 32 19 51 12 76 89 97 32 24 62 35.4 14.3 0.89
SSUET205-14 7/8   16 10 51 32 19 51 12 76 89 97 32 24 62 35.4 14.3 0.89
SSUET205-15 15/16   16 10 51 32 19 51 12 76 89 97 32 24 62 35.4 14.3 0.89
SSUET205-16 1   16 10 51 32 19 51 12 76 89 97 32 24 62 35.4 14.3 0.89
SSUET206   30 16 10 56 37 22 57 12 89 102 113 37 28 70 39.8 15.9 1.38
SSUET206-17 1-1/16   16 10 56 37 22 57 12 89 102 113 37 28 70 39.8 15.9 1.38
SSUET206-18 1-1/8   16 10 56 37 22 57 12 89 102 113 37 28 70 39.8 15.9 1.38
SSUET206-19 1-3/16   16 10 56 37 22 57 12 89 102 113 37 28 70 39.8 15.9 1.38
SSUET206-20 1-1/4   16 10 56 37 22 57 12 89 102 113 37 28 70 39.8 15.9 1.38
SSUET207   35 16 13 64 37 22 64 12 89 102 129 37 30 78 43.9 17.5 1.75
SSUET207-20 1-1/4   16 13 64 37 22 64 12 89 102 129 37 30 78 43.9 17.5 1.75
SSUET207-21 1-5/16   16 13 64 37 22 64 12 89 102 129 37 30 78 43.9 17.5 1.75
SSUET207-22 1-3/8   16 13 64 37 22 64 12 89 102 129 37 30 78 43.9 17.5 1.75
SSUET207-23 1-7/16   16 13 64 37 22 64 12 89 102 129 37 30 78 43.9 17.5 1.75
SSUET208   40 19 16 83 49 29 83 16 102 114 144 49 33 88 50.2 19 2.55
SSUET208-24 1-1/2   19 16 83 49 29 83 16 102 114 144 49 33 88 50.2 19 2.55
SSUET208-25 1-9/16   19 16 83 49 29 83 16 102 114 144 49 33 88 50.2 19 2.55
SSUET209   45 19 16 83 49 29 83 16 102 117 144 49 35 87 50.2 19 2.57
SSUET209-26  1-5/8    19 16 83 49 29 83 16 102 117 144 49 35 87 50.2 19 2.57
SSUET209-27 1-11/16   19 16 83 49 29 83 16 102 117 144 49 35 87 50.2 19 2.57
SSUET209-28 1-3/4   19 16 83 49 29 83 16 102 117 144 49 35 87 50.2 19 2.57
SSUET210   50 19 16 83 49 29 86 16 102 117 149 49 37 90 52.6 19 2.74
SSUET210-30  1-7/8    19 16 83 49 29 86 16 102 117 149 49 37 90 52.6 19 2.74
SSUET210-31 1-15/16   19 16 83 49 29 86 16 102 117 149 49 37 90 52.6 19 2.74
SSUET210-32 2   19 16 83 49 29 86 16 102 117 149 49 37 90 52.6 19 2.74
SSUET211   55 25 19 102 64 35 95 22 130 146 171 64 38 106 56.6 22.2 4.12
SSUET211-32  2   25 19 102 64 35 95 22 130 146 171 64 38 106 56.6 22.2 4.12
SSUET211-34 2-1/8   25 19 102 64 35 95 22 130 146 171 64 38 106 56.6 22.2 4.12
SSUET211-35 2-3/16   25 19 102 64 35 95 22 130 146 171 64 38 106 56.6 22.2 4.12
SSUET212   60 32 19 102 64 35 102 22 130 146 194 64 42 119 66.6 25.4 5.08
SSUET212-36  2-1/4    32 19 102 64 35 102 22 130 146 194 64 42 119 66.6 25.4 5.08
SSUET212-38 2-3/8 32 19 102 64 35 102 22 130 146 194 64 42 119 66.6 25.4 5.08
SSUET212-39 2-7/16   32 19 102 64 35 102 22 130 146 194 64 42 119 66.6 25.4 5.08


Notes: 1.Upon request,available with plastic close cap(CC) or open cap(OC) at one end. Ordering example SSUET204-12 CC.

          2.Lubricated with food grade grease.
