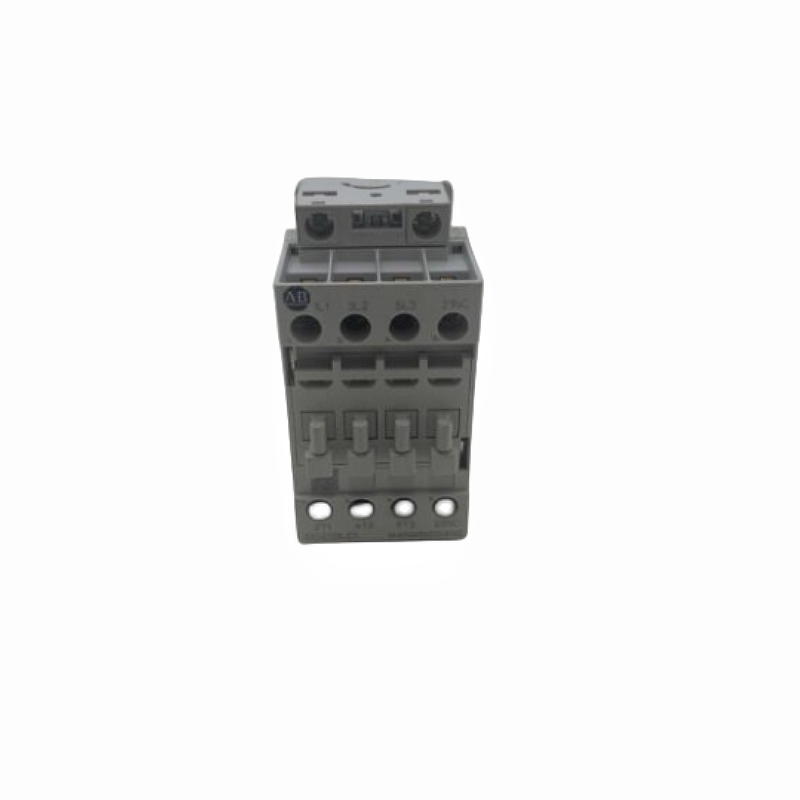

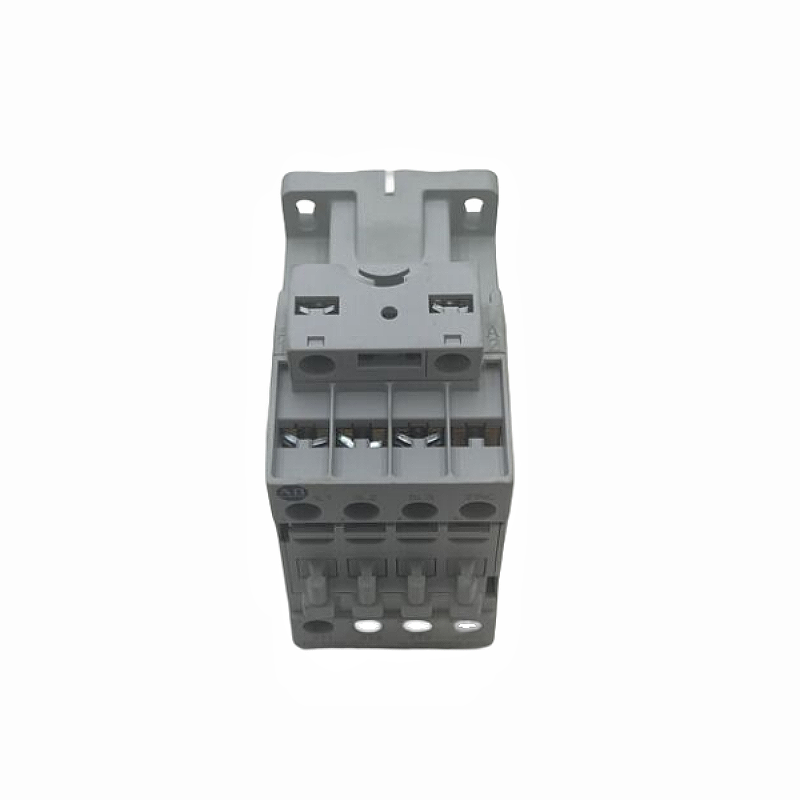

Product Details:
- Voltage type for actuating: AC/DC
- Rated control supply voltage at AC 50 Hz: 250 V
- Rated control supply voltage at AC 60 Hz: 250 V
- Rated control supply voltage at DC: 250 V
- Type of electrical connection of main circuit: Screw connection
- Rated impulse voltage withstand (Uimp)： 6 kV
- Operating time, closing delay： 40 ms
- Main current circuit resistance：0.41 mΩ
- Rated isolation voltage (Ui)： 690V per IEC
- Standard coil, pick-up： 50VA/50 W @ 250…500V AC/DC
- Standard coil, hold-in： 2.2VA/2 W @ 250…500V AC/DC
- General purpose current (enclosed)：13.8 A @ 600V per UL/CSA
- Power dissipation：0.8 W per pole at Ie, AC-1, 400V
- Short time withstand (Icw)： 3-pole: 80 A for 30 s (40 °C)
- FLA :20 A @ 600V, 3-phase per： UL/CSA HVAC applications
- Rated operational current and power (enclosed)：9.5 A @ 125V DC, with 3-poles in series per UL/CSA
- LRA 80 A @ 550-600V, 3-phase AC per UL/CSA HVAC applications
- Electromagnetic compatibility: IEC 60947-1 - Environment A and B (100-E09...E38 only)
- Total power dissipation：2.3 W at Ie, AC-3, 400V, AC/DC control (120-250V)
- Operating limits, dropout : (≤0.60) x Us @ DC control
- Rating for switching AC motors： 3-poles: 7.5 Hp @ 575V, AC-2, AC-3 (60 Hz)
- Operating limits, pick-up: (0.85...1.1) x Us @ 50/60 Hz
- MCCB current rating： Type 2 (per IEC 60947-4-1): 28 A @ 400V, 70 kA available fault current
- DIN fuses (gG) current rating： Type 2 (per IEC 60947-4-1): 6 A @ 690 V, 60 kA available fault current
- Rated voltage (Ue) ：24, 48, 110, 220, 440V DC
- Rated operational current and power： 5.8 A @ 115V AC, 500000 electrical operations, 1-phase per UL/CSA elevator duty
- Coil voltage: 250 to 500V AC/DC
- Switching of lighting loads: Tungsten lamps: 20 A @ 600V, 3-phase (break all lines) per UL/CSA
- UL class RK5 fuses rating: Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 30 A @ 600V, 5 kA available fault current
- Rated operational current (Ie): 9.5 A @ 500V, Star-Delta starting (50 Hz)
- UL class J and CSA HRCI-J fuses rating: Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 30 A @ 600V, 100 kA available fault current
- UL inverse-time circuit breaker: Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60 A @ 600V, 5 kA available fault current
- Switching of power transformers: Apparent power: 8 kVA @ 415V, AC-6a, 50 Hz (n = 30)
- Rated operational power (Pe) : 9 kW @ 240V, AC-1 active power load (50/60 Hz), ambient temperature 70 °C (158 °F)
- Switching of DC loads: 3-poles in series 9 A @ 220V (Series-wound motors-starting, reverse current breaking, reversing, stepping: DC-5 at 60 °C)

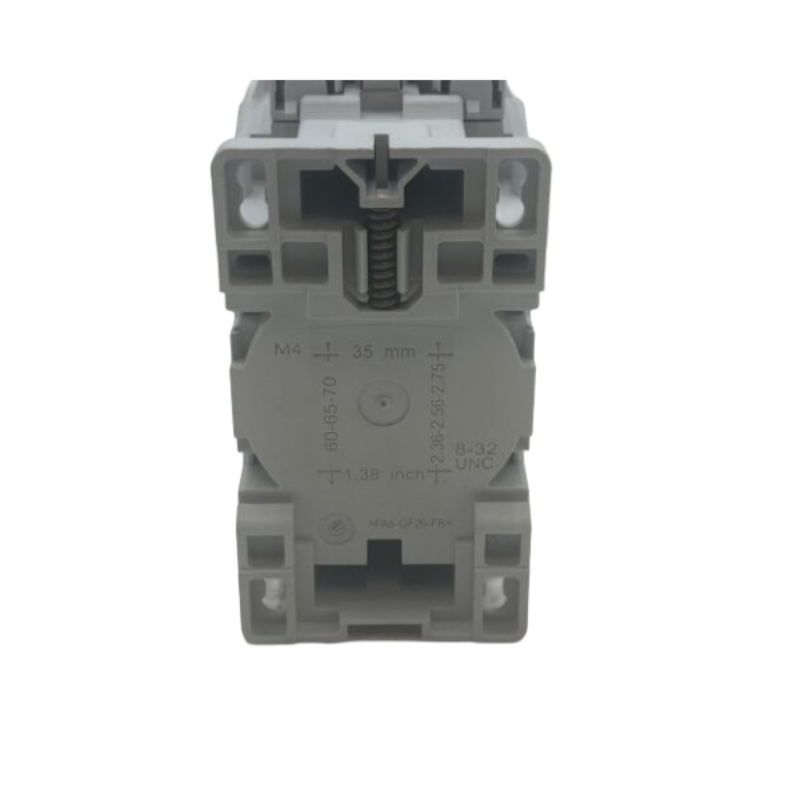

- Features: Panel mounting or mounting on 35 mm DIN rail, AC/DC electronic coil, Made of environmentally friendly materials
