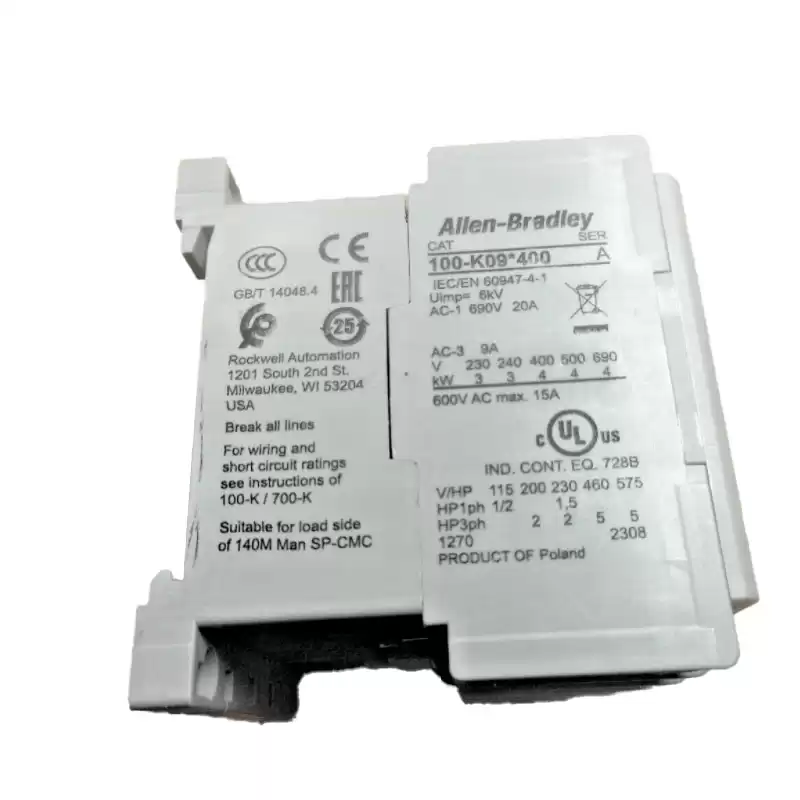

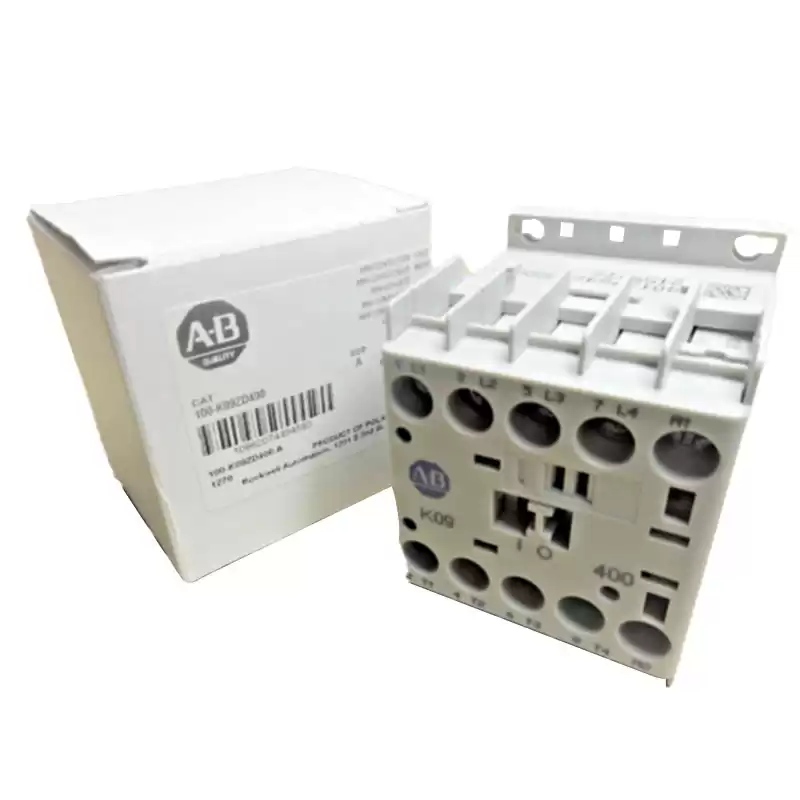

Product Details:
- Voltage type for actuating：DC
- Type of electrical connection of main circuit：Screw connection
- Rated impulse withstand voltage (Uimp)：6 kV
- Optional overload relays：Bimetallic
- Main current circuit resistance：2.2 mOhm
- Power dissipation (all circuits)：0.9 W @ 400V, AC-3, Ie
- Rated filament current：9 A @ 230/240V, AC-5b
- Rated isolation voltage (Ui)： IEC: 690V, UL, CSA: 600V
- Switching of motor load：11 A @ 400V, AC-7b (50 Hz)
- Auxiliary contacts：IP2X
- Rated current (enclosed)：9.8 A @ 115V, 1-phase per UL/CSA
- Rated power (enclosed)：5 Hp @ 575V, 3-phase per UL/CSA
- Auxiliary contact configuration：No auxiliary contact
- Capacitance, max： 750 µF @ short-circuit current of 10 kA
- General purpose current (enclosed)： 15 A per UL/CSA
- Operating time, closing delay： 6...12 ms DC (conventional)
- Switching of low inductive loads: 20 A @ 400V, AC-7a per IEC 61095 (50 Hz)
- Short time withstand (Icw): 96 A for 10 s, 60 °C
- Operating time, opening delay: 8...12 ms with integrated diode
- Coil consumption, hold-in: Cold 3.0 W, warm 2.6 W DC (conventional)
- Coil consumption, pick-up: Cold 3.0 W, warm 2.6 W DC (conventional)
- Total power dissipation: DC control: 3.5 W @ 400V, AC-3, Ie
- Operating limits, dropout : (0.2...0.75) x Us @ 50 Hz, 60 Hz, 50/60 Hz
- Switching of lamps Gas discharge lamps, open: 18 A @ 40 °C, AC-5a
- Insulation class of the coil: Class F per IEC 60085, Class 105 insulation system per UL 508
- Rating for switching AC motors: 4-poles: 5 Hp @ 575V (AC-2, AC-3), 3-phase (60 Hz)
- Switching of hermetically sealed cooling compressor motors：18 A @ 400V, AC-8a (manual reset of overload release (50 Hz))
- Operating limits, pick-up: (0.85...1.1) x Us @ 50 Hz, 60 Hz, 50/60 Hz
- UL class K5 and RK5 fuses rating: 40 A @ 600V, 5 kA available fault current per UL 508 and CSA 22.2 No. 14
- DIN fuses (gG, gL) current rating: Type 2 (per IEC 60947-4-1): 20 A @ 400 V, 50 kA available fault current
- Coil voltage: 110 (77-137.5)V DC
- Rated operational current (Ie) : 8.9 A @ 690V, Star-Delta starting (50 Hz)
- Switching of power transformers: Apparent power: 4 kVA @ 500V, AC-6a, 50 Hz (n = 30)
- Rated operational power (Pe) : 8.3 kW @ 240V, AC-1 (50 Hz), ambient temperature 40 °C
- Switching of DC loads: 3-poles in series: 9 A @ 48/60V (Non-inductive or slightly inductive loads or resistance furnaces DC-1 at 60 °C)
- Optional accessories:Front-mount auxiliary contacts, surge suppressors, electronic timers, mechanical interlocks

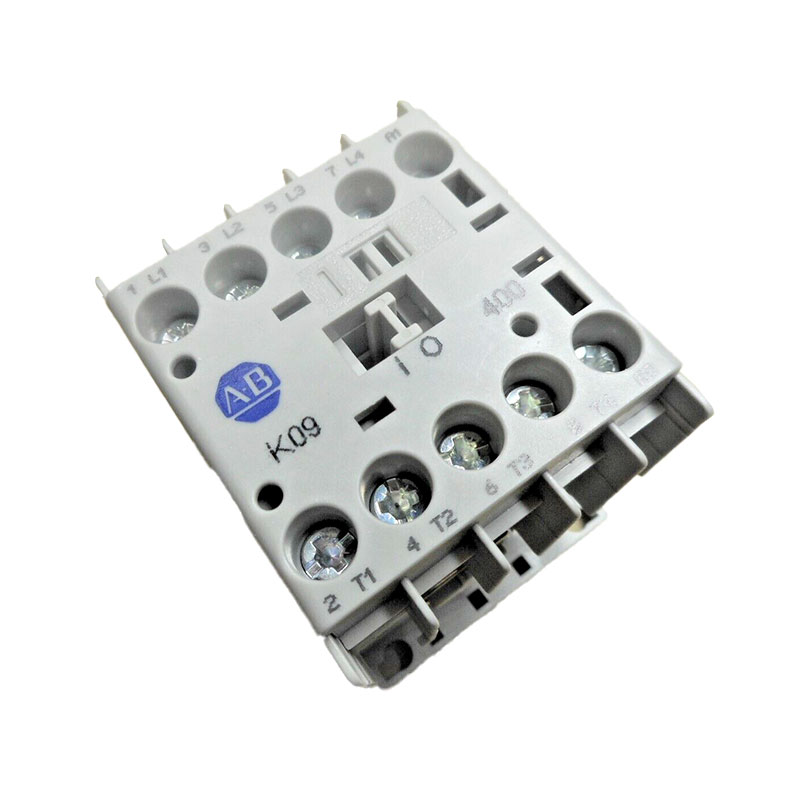

- Features Mini-contactors, Uniform panel mounting dimensions, Panel mounting or mounting on 35 mm DIN Rail, Made of environmentally friendly materials
- UL class CC and CSA HRCI-MISC fuses rating: 30 A @ 600V, 50 kA available fault current per UL 508 and CSA 22.2 No. 14
