ALLEN BRADLEY 1203-SM1 SLC 500 SCANport MODULE

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

We currently stock over 12000+ branded products.
---Invensys Foxboro:

---Invensys Triconex:
Redundancy fault tolerant control system, Based on the three module redundancy (TMR) structure of the most modern fault-tolerant controller.
---Westinghouse:
OVATIONN system, WDPF system, WESStation system card.
---Modicon:
Quantum 140 Series processor, control card, Power module and so on.
---Rockwell Allen-Bradley:
 Reliance, SLC500/1747/1746, MicroLogix/ 1761/ 1763/ 1762/ 1766/ 1764, pactLogix/1769/1768
--- Industrial robot parts of DSQC series, Bailey INFI90, etc.
---Siemens: Siemens MOORE, Siemens Simatic C1, Siemens numerical control system, etc.
---Motorola: MVME162, MVME167, MVME1772 and MVME177 series.
---XY: I/O, VME Plate and processor an etc.
---GE FANUC: Module, card, drive various kinds of spare parts,etc.
---Yaskawa: Servo controller, servo motor, servo driver, etc.
---Bosch Rexroth: Indramat, I/O module, PLC controller, drive module.
---Woodward: SPC valve position controller, PEAK15 digital controller.

Brand Name                 AB

Product reference     1203-SM1

The SLC to SCANport module is designed to be used with any SLC processor or adapter capable of supporting SLC rack–based modules.

The following terms and abbreviations are specific to this product. For a complete listing of Allen–Bradley terminology,

refer to the Allen–Bradley Industrial Automation Glossary. In this manual, we refer to the: • 1203 SLC to SCANport communications peripheral as the SLC to SCANport module.

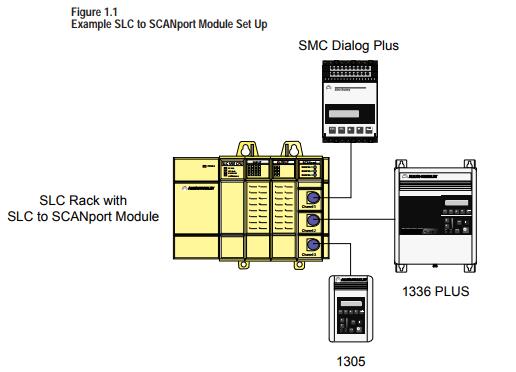

To connect more than three SCANport devices in a single rack, add additional SLC to SCANport modules to your SLC rack system.

You can use your SLC to SCANport module in a 4, 7, 10, or 13 slot SLC rack or a 2–slot expansion rack available for the fixed I/O

 configurations of SLC–500 processors. Important: An SLC rack using this module needs an enclosure of at least 200 mm (8 in) in depth.

You cannot place an SLC rack using the SLC to SCANport module in a 150 mm (6 in) deep enclosure.

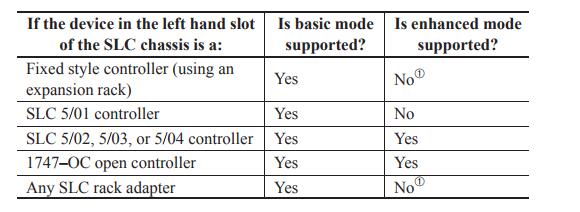

Your SLC processor or rack adapter determines what functions are available for the SLC to SCANport module.

Chapter 2 covers the following information: • what you need to do before you install the SLC to SCANport module

enclosure that is less than 200 mm (8 in) deep. Before you install your SLC to SCANport module, you need to:

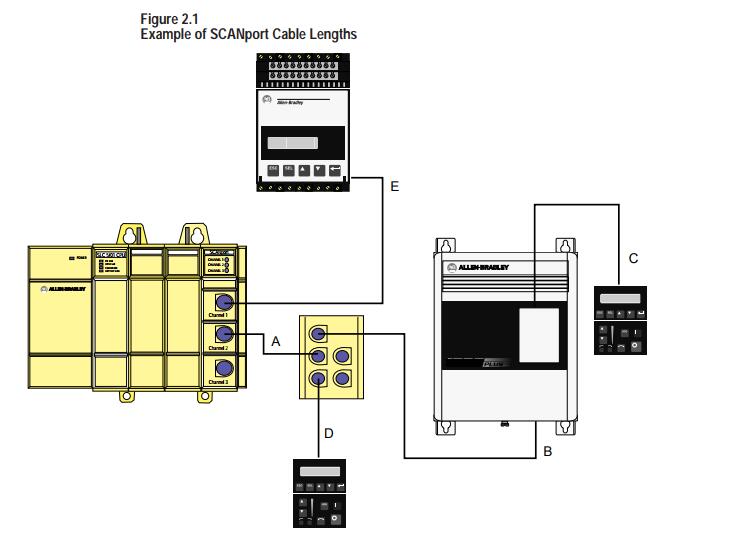

Determine the Placement of the SCANport Cables You must keep the SCANport cables away from high power cables.

 If your SCANport cables are placed too close to the power cables or run in parallel with power cables, you may introduce

 noise into the communications system, which can cause problems to your system. Make sure you physically mount and

 connect SCANport products following the installation guidelines available for each product.

RELATED PRODUCT

If you have any question pls do not hesitate to contact us.We can supply all kind of the automation parts,if you want to purchase parts pls send the parts model to my mail, I will prompt reply you as I receive the mail.Hope anyone inquire from us.    Waiting for your inquiry.
