Allen Bradley 1305-BA03A Variable Speed Drive
Contact: Miya
Job Title: Sales Manager
Skype: live:miyazheng520
Email: sales@amikon.cn
Tel: 86-18020776792(Whats App )
QQ :2851195450

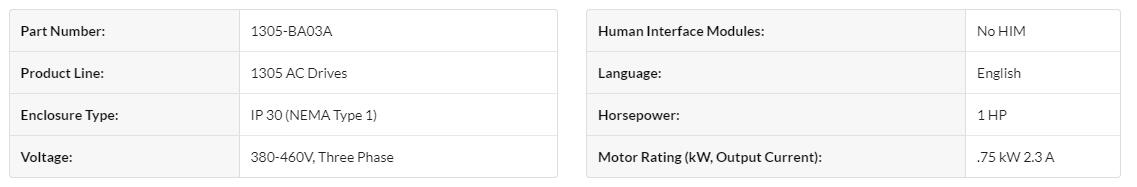

Brand Name AB
Product reference 1305-BA03A
The Allen-Bradley 1305-BA03A is a variable speed drive that allows the user to control the speed of a machine’s 3-phase induction motor. This Adjustable frequency AC drive has a 3-Phase motor rating power of 0.75 kilowatts (1.0 Horse Power), with an output current of 2.3 amps. It also has an adjustable output voltage that can be adjusted from 0 Volts through 380 Volts and up to 460 Volts. Its maximum scan port load is 250 milliamps, and it has an output frequency of up to 400 Hertz and an input frequency range of 50 to 60 Hertz. The 1305-BA03A operates in a voltage range of 340 to 500 Volts, with an apparent input power of 1.7 kilovolts AC. The power dissipation is 34 Watts, and the working efficiency is 97.5%. It has a NEMA 1 (IP30) standard enclosure and an ambient temperature around 50 degrees Celsius. The 1305-BA03A has a storage temperature range between 40 degrees Celsius to 70 degrees Celsius, with a relative humidity of 0 to 95% (non-condensing). The operational vibration of the 1305-BA03A is 1g. The 1305-BA03A has other features like a temperature sensor trips and the DC bus voltage that is monitored for insufficient or excess voltage. It also has a contact closure control input, with a configurable control wire, and an external potentiometer with a speed of up to 10 K ohms at 1 Watt, and an input impedance of 100 K ohms at a 10-bit resolution. The 1305-BA03A is a product with dimensions of 210 millimeters (8.27 inches) x 195millimeters (7.67 inches) x 175 millimeters (7.05 inches) and a weight of 4.2 kilograms (9.2 pounds).
The Rockwell/Allen-Bradley 1305 AC Bulletin Drive is a variable speed drive designed to control the speed of three-phase AC induction motors in a variety of demanding applications where performance, flexibility, and ease of use are essential. The 1305 drive has advanced technology in a rugged, compact package that offers the proper blend of performance and functionality. This drive is available with ratings 0.37 to 4 kW (0.5 to 5HP) at 380-460V and 0.37 to 2.2 kW (o.5 to 3HP) at 200-300V. The 1305 features high-torque, fast acceleration, hybrid current limit, IR compensation, and slip compensation.
The 1305 AC drive has a wide range of parameters which can be set to meet the requirements of many diverse applications. The standard SCANport communications link permits simple connections to a variety of communication peripherals including , DeviceNet, RS232/422/485, Remote I/O, and Flex I/O. This drive can also connect to ControlNet and other networks via Allen-Bradley Flex I/O to SCANport communication module. Multiple devices can communicate with a 1305 AC drive with a SCANport expander.
Product Family: 1305-AA02A, 1305-AA03A, 1305-AA04A, 1305-AA08A, 1305-AA12A, 1305-BA01A, 1305-BA02A, 1305-BA03A, 1305-BA04A, 1305-BA06A, 1305-BA09A, 1305AA02A, 1305AA03A, 1305AA04A, 1305AA08A, 1305AA12A, 1305BA01A, 1305BA02A, 1305BA03A, 1305BA04A, 1305BA06A, 1305BA09A, 1305 AA02A, 1305 AA03A, 1305 AA04A, 1305 AA08A, 1305 AA12A, 1305 BA01A, 1305 BA02A, 1305 BA03A, 1305 BA04A, 1305 BA06A, 1305 BA09A
