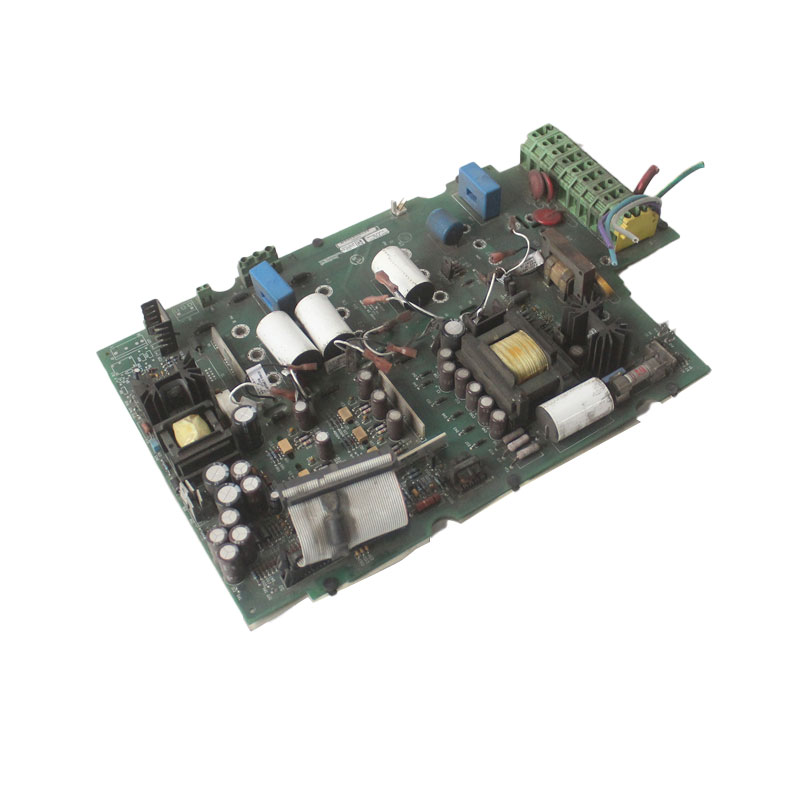

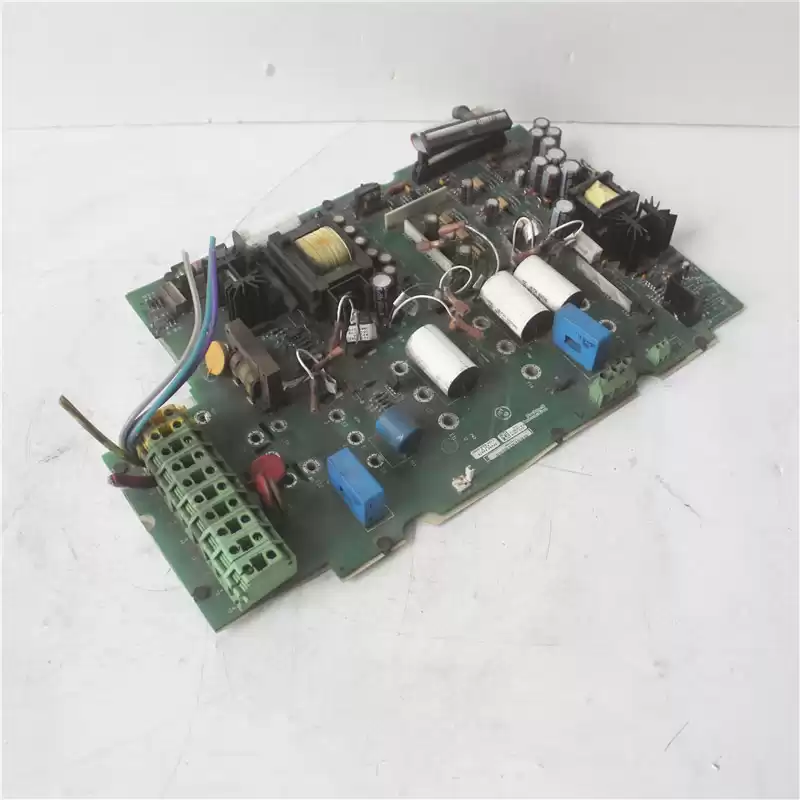

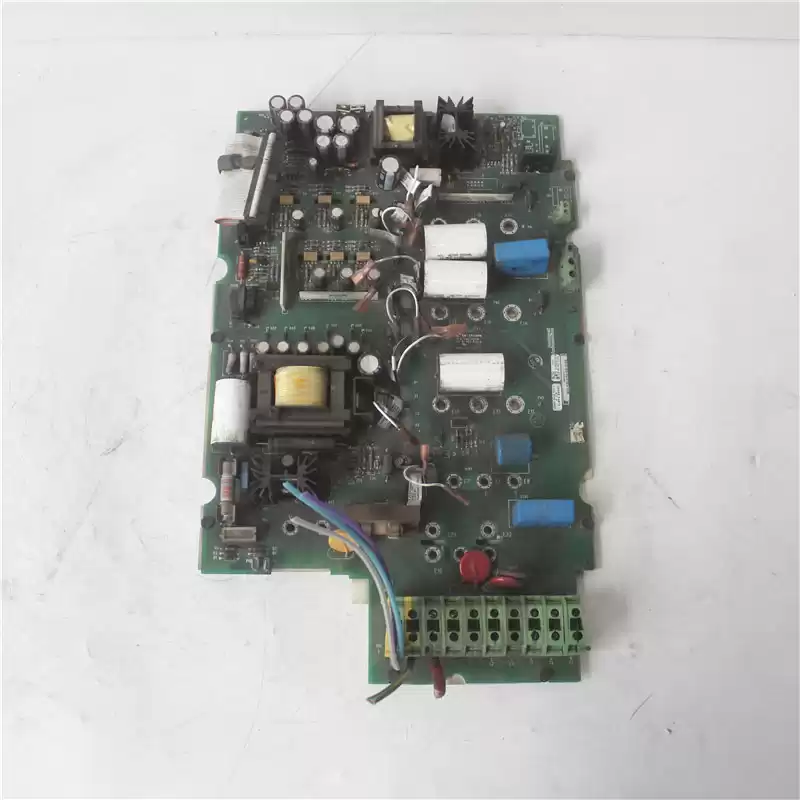

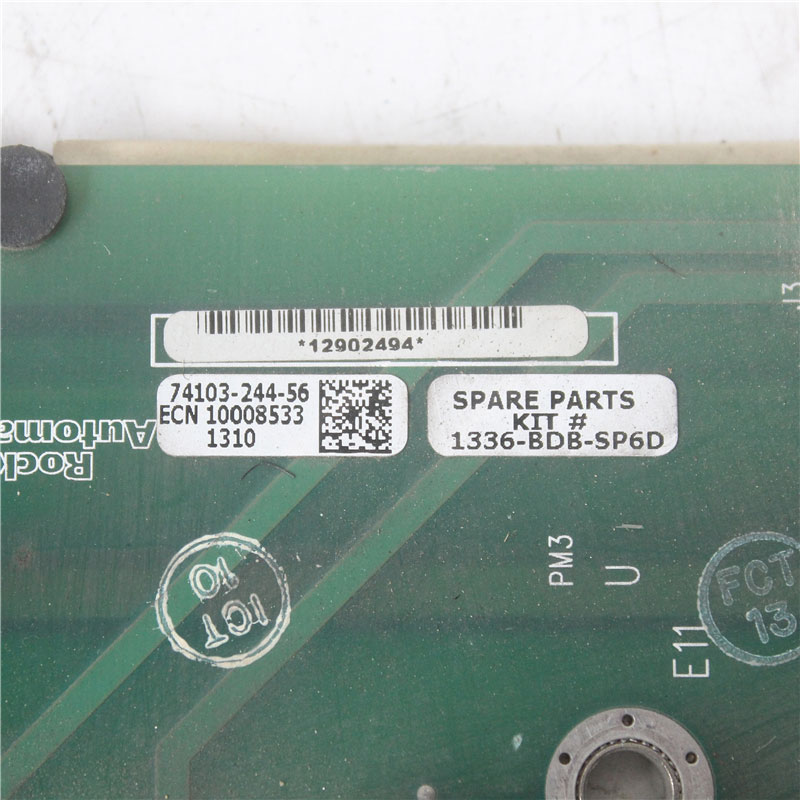

Allen-Bradley 1336-BDB-SP6D 74103-244-56 Gate Driver Board

       Product Details:

• The 1336-BDB-SP6D is a Gate Driver Board for 1336 series AC drives manufactured by Allen-Bradley. This adjustable frequency AC drive assembly has a power rating of 30 Horsepower.  It can run motors with this power generation capacity and is classified as a major assembly (level 1) spare part kit for 1336 PLUS, 1336 PLUS II, 1336 FORCE, 1336 IMPACT & REGEN drives that are supplied with 460 Volts of AC power. It is made to be exclusively used with “B” frame sized 1336 series drives.
• The 1336-BDB-SP6D PCB Gate Driver Board is used to drive power switching at the output of the drive and is controlled by milliamps currents received from a microprocessor unit. This is a really important component of every 1336 series AC drive used to perform voltage level-shifting. It produces perfect voltage control at drive’s output.
• This spare part kit belongs to the 1336STEF group of parts. The spare part kit with 1336-BDB-SP6C order number was intended to perform same operations as the 1336-BDB-SP6D, but it is obsolete now. The 1336-BDB-SP6D assembly may be used to replace this part as 1:1 replacement option. You are advised to use the Allen-Bradley 1336-BDB-SP6D gate driver board at temperatures below 40 degrees Celsius (104 degrees F). This spare part kit’s weight is approximated at 2 pounds (0.9 kilograms). No maintenance activity should be carried out until the drive is shut down. Check that the capacitors inside the drive were disconnected for enough time and are discharged, since the 1336-BDB-SP6D is sensitive to electrostatic discharge. In addition, it is advised that the user wear a wrist-type grounding strap during installation and part replacement activity.
