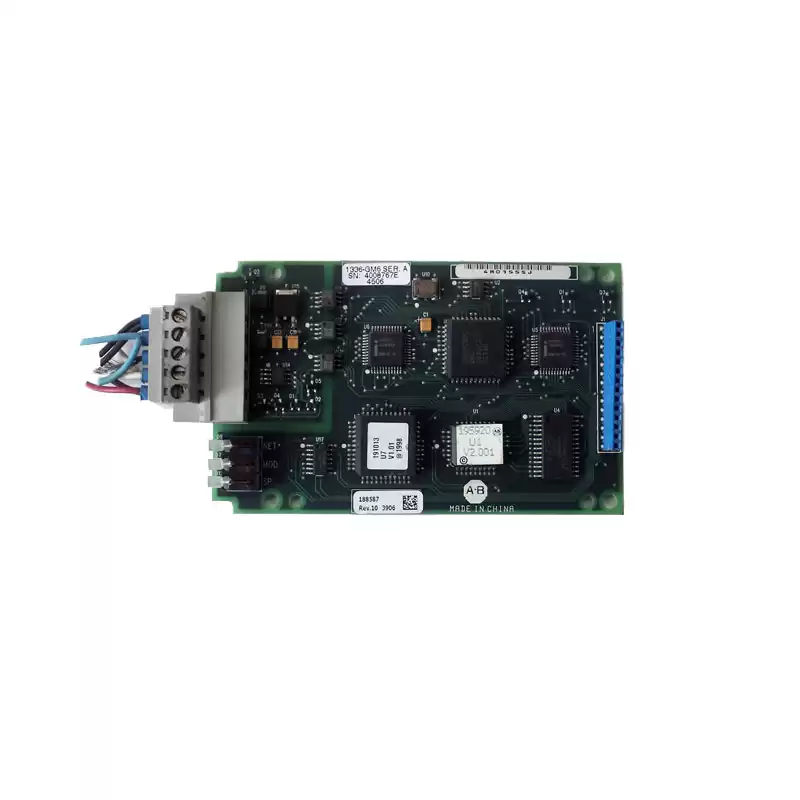

Allen-Bradley 1336-GM6 Drive Board

       Product Details:

• The 1336-GM6 is an Enhanced DeviceNet Adapter communications module manufactured by Allen Bradley for the 1336 series of variable frequency drives.
• The 1336-GM6 measures 114 millimeters in width, 711 millimeters in height, and 127 millimeters in depth. The weight of 1336-GM6 is around 51 grams and the 1336-GM6 is to be operated in a temperature range of 0 to 55 degrees Celsius, while the recommended storage temperature is between -40 and 85 degrees Celsius.
• The power consumption of this device is around 150 mA at 5 Volts or 60 mA at 24 Volts. The 1336-GM6 module is also compliant to UL 508 and CUL, as per the European Union EMC and Low Voltage Directives. It is to be mounted directly to the selected SCAN port, via the internal SCAN port connector and is used to connect to the DeviceNet network. The 1336-GM6 features flash upgradability for field updates as well as a change of state capabilities. It has a 5 pin Phoenix connector for the module to be attached to the DeviceNet Network and a 1 pin SCAN port connector which provides the power and the communication to the SCAN port communication circuit. The bicolor status LEDs provide information and statuses about the DeviceNet and SCANport connection module.
• To install the 1336-GM6 board, first turn off the power supply to the device and verify that no power is running through the network. Then screw the four nylon standoff headers on the main control board and insert the pins on the 1336-GM6 to the 14 pin SCAN port of the drive. Using a Phillips-head screwdriver and the mounting screws, screw the board back and ensure that it is not too tight. Attach the wires to the DeviceNet connector.
