ALLEN BRADLEY 1336F-BRF50-AA-EN-HAS2 SER. B AC DRIVE

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

Brand Name                 AB

Product reference     1336F-BRF50-AA-EN

Allen-Bradley 1336 PLUS II drive with 380-480V AC or 513-620V DC voltage, 5 HP Rating and, IP20 (NEMA 1) enclosure

The Allen-Bradley 1336F-BRF50-AA-EN PLUS II Adjustable Frequency AC Drive is an Allen-Bradley 1336 PLUS II drive that runs on a voltage of 380 - 480V AC or a voltage of 513 - 620V DC with a possible frequency range of +/- 10% for the input and the output. It produces a 5HP output power rating and an IP20 (NEMA 1) enclosure type. This IP20 (NEMA 1) enclosure offers the 1336F-BRF50-AA-EN Drive a degree of protection that is suitable for industrial environments as well as for factory floors. The Allen-Bradley 1336F-BRF50-AA-EN Drive is part of Allen-Bradley’s 1336 PLUS II Adjustable Frequency AC Drive series of customizable drives. The default factory-programmed language for this 1336 AC Drive is English. This device features a programmer and a controller and a digital pot human interface option, mainly for additional convenience and adaptability.

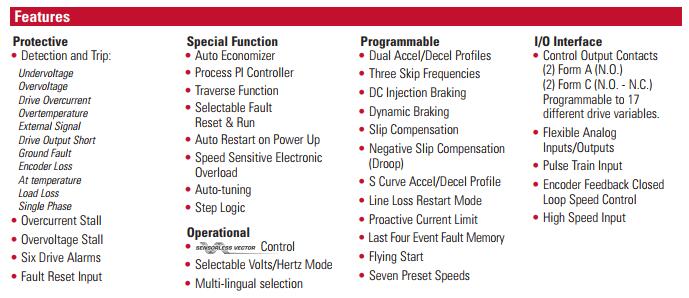

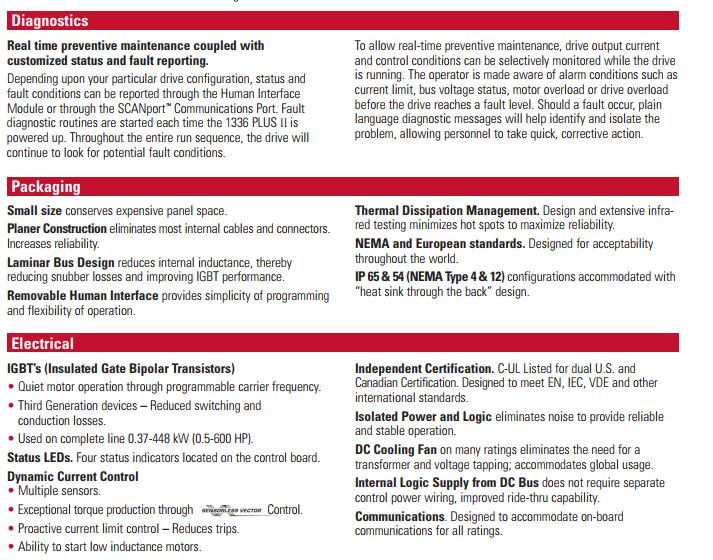

The 1336F-BRF50-AA-EN 1336 PLUS II Adjustable Frequency AC Drive is designed and intended to give maximum control and excellent industrial capability. Every drive in this series features Operational, Protective, I/O, Programmable, and other Special Functions for different industrial applications. These drives provide diagnostics (including Fault reports and Custom Status reports) allowing the users to make informed choices, especially while at work on the factory floor. The Allen-Bradley 1336F-BRF50-AA-EN Drive is digitally programmable and it allows users to make adjustments. Even though there are several differences in the drives in the Allen-Bradley 1336 PLUS II series, these drives have easy-to-find conjoined components for consistent and standardized assembly and repair. The input ratings for these drives range from 200 to 600V AC, allowing the users to find a product which best suits their industrial requirements.

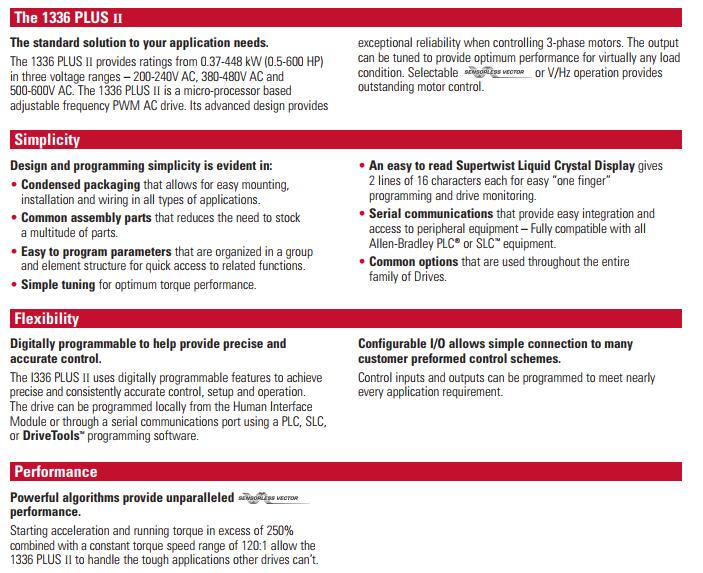

Available in ratings from 0.37 to 448 kW (0.5 to 600 horsepower), the drive helps to provide a single solution for virtually all of your speed control requirements. Commonality of design across the entire range, coupled with identical control interface functions, device communications, training and maintenance, provide you with a tremendous advantage in your control needs. Add that to integration with Allen-Bradley SMC™ and SMP™ power products, the 1305 drive, the 1336 IMPACT™ and 1336 FORCE™ field-oriented control drives (all of which use the same control interface and communication options) and you’ve just gained significant advantage in system design, component integration, operator training and maintenance.
