Product Details:
- With display: No
- Voltage type for actuating: AC/DC
- Rated operating voltage Ue: 200 V
- Rated control supply voltage at AC 50 Hz: 24 V
- Rated control supply voltage at AC 60 Hz: 24 V
- Overload current: 12.3 A

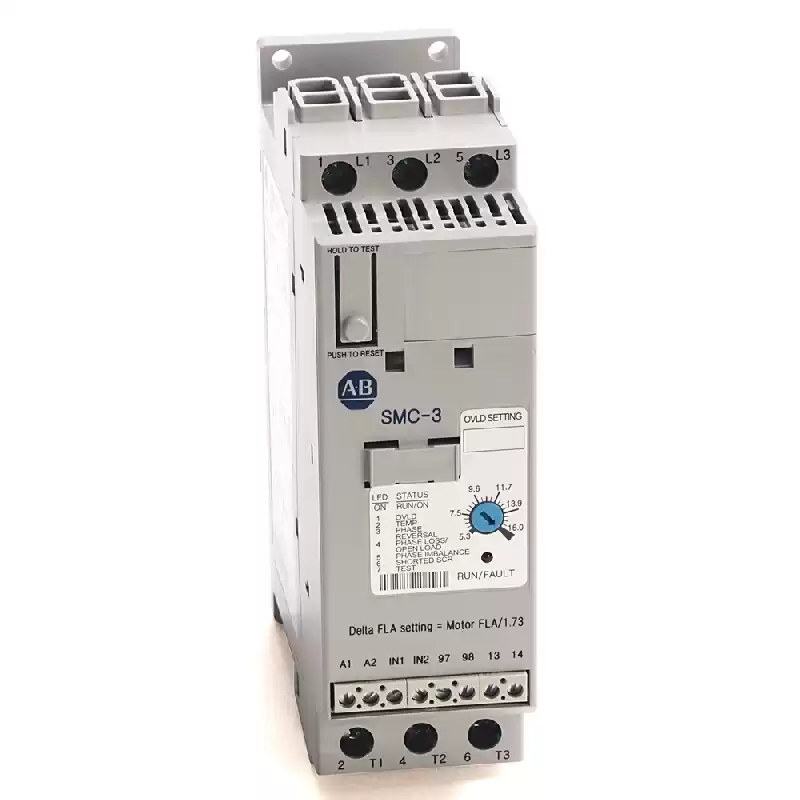

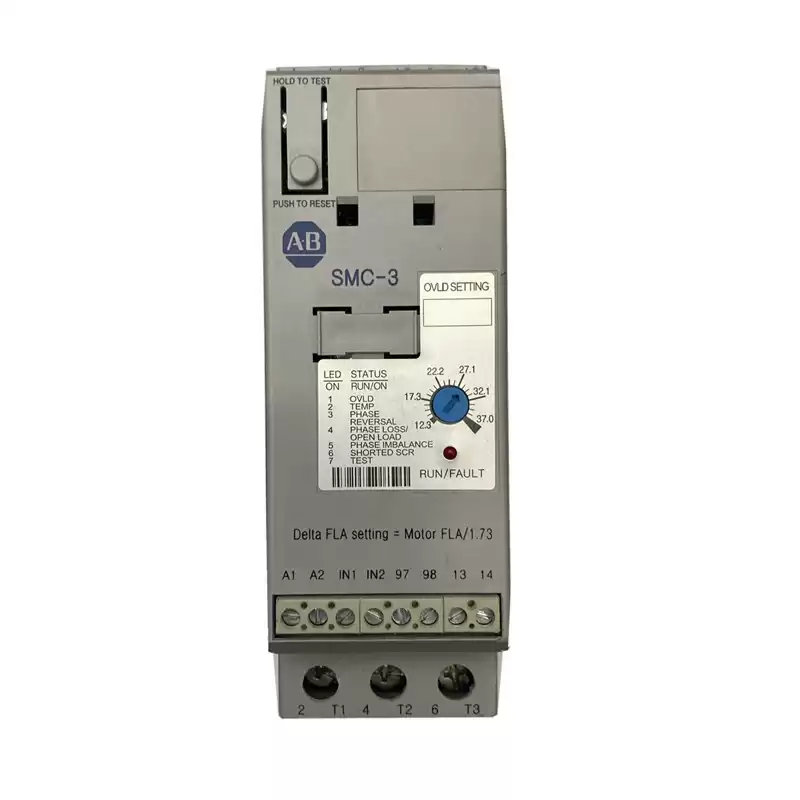

- Controller type :SMC-3
- DV/DT protection: 1000V/µs for power circuit
- Repetitive peak voltage: 1400V per UL/CSA/NEMA for power circuit
- Operating frequency: 50/60 Hz per UL/CSA/NEMA for power circuit
- Line connected motor power, max :7.5 kW @ 230V AC, 50 Hz, 3-phase
- Delta connected motor power, max :7.5...30 kW @ 380/400/415V AC, 50 Hz, 3-phase
- Overvoltage category: III per IEC for side mount auxiliary contacts
- Rated impulse voltage: 6 kV for power circuit
- Dielectric withstand :2500V AC per IEC for power circuit
- Line connected motor current :12.3...37 A @ 380/400/415/460V AC, 3-phase
- Delta connected motor current: 21…64 A @ 380/400/415/460V AC, 3-phase
- Insulation voltage: Rated 600V AC per UL/CSA/NEMA for power circuit
- Rated operational voltage: 250V AC/30V DC per UL/CSA/NEMA for Side mount auxiliary contacts
- Rated control power during start with fan: 215 mA @ 120V AC/180 mA @ 240V AC, 800 mA @ 24V DC/660 mA @ 24V AC
- Input OFF-state current: <10 mA, <12 mA @ input OFF-state voltage (IN1, IN2) for control circuit
- Short-circuit protection device list: Non-time delay Thermal magnetic circuit breaker High capacity time delay class CC/J/L
