Specifications
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Communications |
One DPI provided for connection to optional human interface and one DPI provided for connection to communication |
| Maximum output Power |
400 HP |
| Maximum output Current |
480.0 A |
| Line Voltage |
200…460V AC, 3-Phase, 50 and 60 Hz |
| Operating Modes |
Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop |
| Product Family |
SMC Flex Smart Motor Controller |
| Auxiliary Contacts |
Four fully programmable contacts as normal/up-to- speed/fault/alarm/network (N.O./N.C.), or external bypass (N.O. only) |
| Metering |
Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, motor thermal capacity usage |
| Part Number/Catalog No. |
150-F480NBD |
| Control Voltage |
100…240V AC (5…480 A units) |
| Bulletin Number |
150 |
| Protection and Diagnostics |
Power loss, line fault, voltage unbalance, excessive starts/hour, phase reversal, undervoltage, overvoltage, controller temp, stall, jam, open gate, overload, underload, communication fault. |
| Product Line |
SMC-Flex |
| Enclosure Type |
open |
| Controller Rating |
480 Amps, 400 Horsepower at 460 Volts AC |
| Input Line Voltage |
200 to 460 Volts AC, 3-phase, 50 and 60 Hertz |
| Rated Voltage |
200 to 460 Volts AC |
| UPC |
10662073047886 |

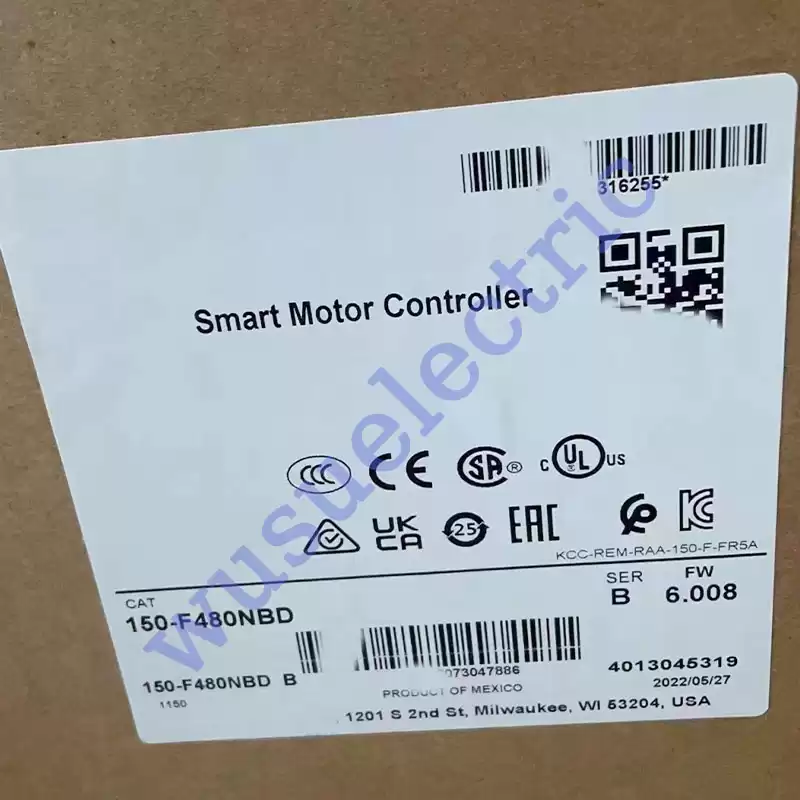

The Allen-Bradley 150-F480NBD is an SMC Flex Smart Motor Controller. This motor controller is a solid-state device with a built-in microprocessor and fully configurable parameters to allow this controller to efficiently control an AC motor through the controller’s embedded parameters.
The 150-F480NBD efficiently operates a motor via Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop. These available operational modes cover motor starting, stopping even idle operational states. It effectively protects the motor from improper operation as well as reduce energy consumption by eliminating unnecessary shift in the motor’s operational state.
The 150-F480NBD is operated by providing an supply voltage of 200-460V AC, 3-Phase, with frequency of 50 and 60 Hz while the device’ control voltage is 100-240V AC (5…480 A units). It delivers a maximum continuous output current of 480 Amperes and output power of 400 HP at 460VAC voltage input.
This drive controller supports installation of accessory devices such as Human Interface Module (HIM) with variations of a Hand-Held HIM or Door mounted HIM. Communication modules may also be installed to allow the drive exchange data via an existing communication network. Supported communication networks are DF1, Profibus DP, ControlNet, Interbus, MODBUS TCP, DeviceNet, Etehrnet I/P, HVAC communication adapter and ControlNet Fiber media adapter.
