ALLEN BRADLEY 1734-IT2I Analog Temperature Input Module Allen bradley Original programmable controller

1734-IT2I POINT I/O Modules Technical Documentation

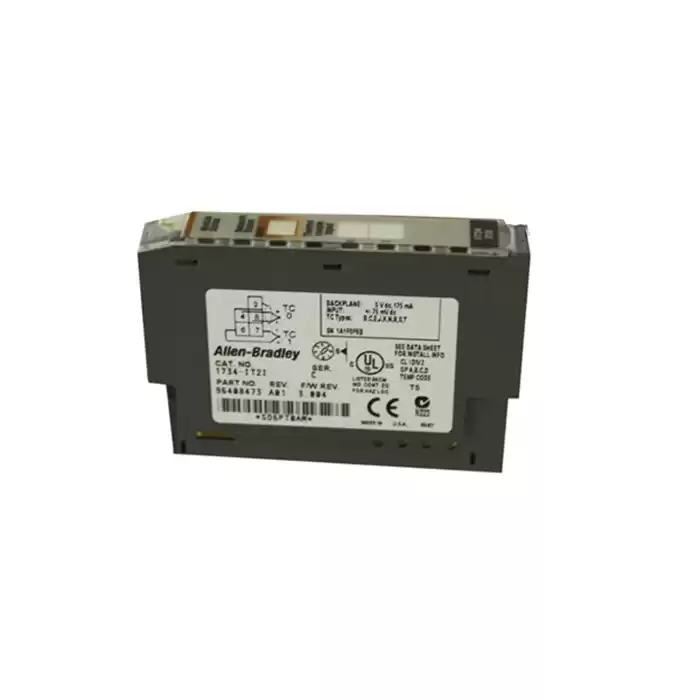

The Allen-Bradley 1734-IT2I is a POINT isolated analog temperature input module. Two differential individually-isolated thermocouple inputs are available with this module. Eight bytes of scanner data (scanner Rx) and fault status data can be produced without consuming I/O data (scanner Tx). Status indicators let the users monitor the network status, module status, the status of input 0, and the status of input 1 in real time. The 1734-IT2I comes with a resolution of 15 bits at 2.5 µV/cnt. No external DC power supply is necessary, but the 1734-IT2I can only be installed to the 1734-TBCJC wiring base assembly. The 1734-IT2I measures 2.21 x 0.47 x 2.97 inches and it weighs 0.08 pounds or 0.036 kilograms. It has an open-style enclosure.

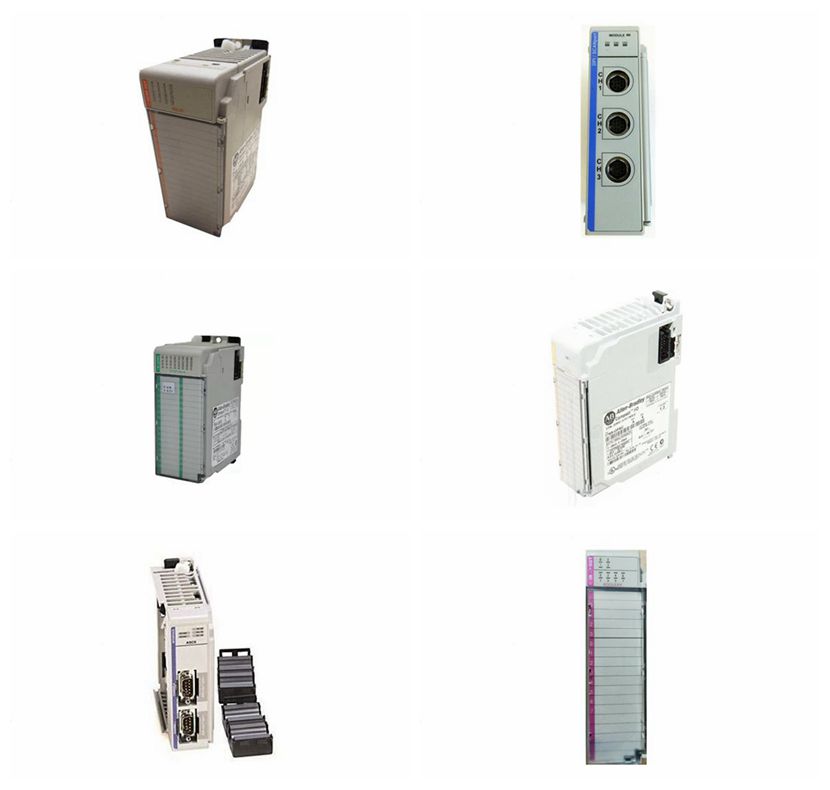

Allen Bradley Main Products:

1.SLC500:1747/1746 series
2.MicroLogix: 1761/1763/1762/1766/1764 series
3.CompactLogix: 1769/1768 series
4. The ControlLogix: 1756/1794/1760/1788 series
5. PLC-5:1771/1785 series
6.2711,2711P PanelView man-machine interface, touch screen, operation panel
7. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150

FM211 KJ3002X1-BB1 12P0683X082 PR6424/000-040 CON021
DIO264 KJ4010X1-BG1 12P0830X072 PR6423/002-001 CON041
DIO32-C KJ3002X1-BF1 12P1732X082 PR6423/00R-101 CON031
PTAI216 PR6426/010-140 CON021/916-240 A6110
DO232 12P3270X022 VE4003S2B1 PR6424/010-000 CON011
DI016-C KJ3001X1-BJ1 12P0555X152 PR6423/10R-030-CN CON021
CNT204/H KJ1501X1-BB1 12P0678X032 PR6423/00C-031-CN CON041-CN
FM221 VE4002S1T1B2 KJ3001X1-BG1 12P0557X162 PR6423/003-031
MC205 KJ3225X1-BA1 12P4174X042 MMS6250
ISI222 KJ4005X1-BC1 MMS6120
BS204 KJ3221X1-BA1 12P2531X102 PR6424/000-030 CON021

Product Tags 1734-it2i cold junction          1734-it2i configuration          1734-it2i scaling
