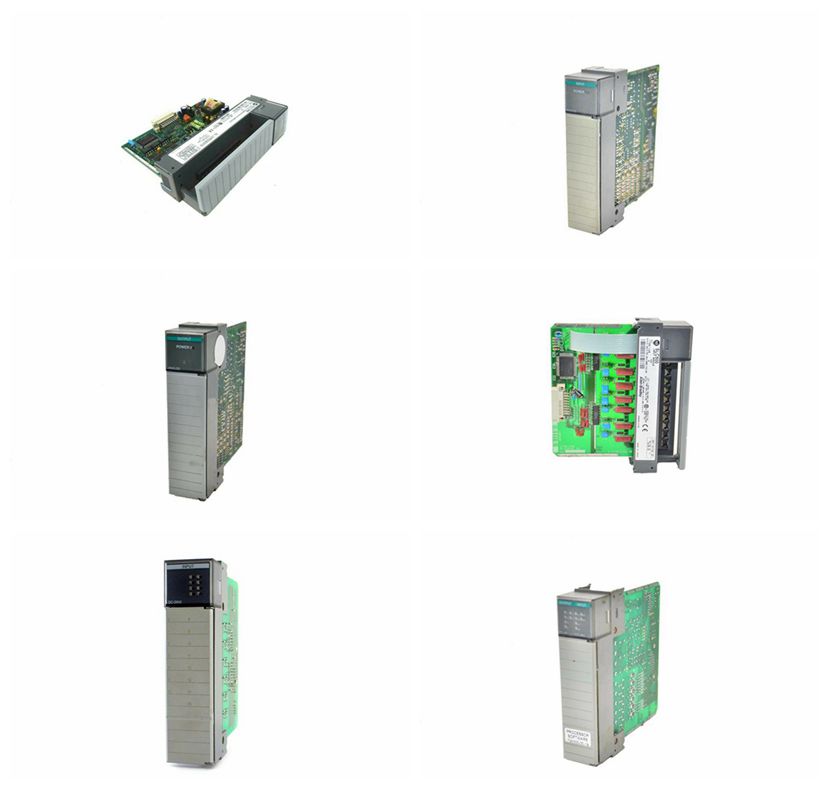

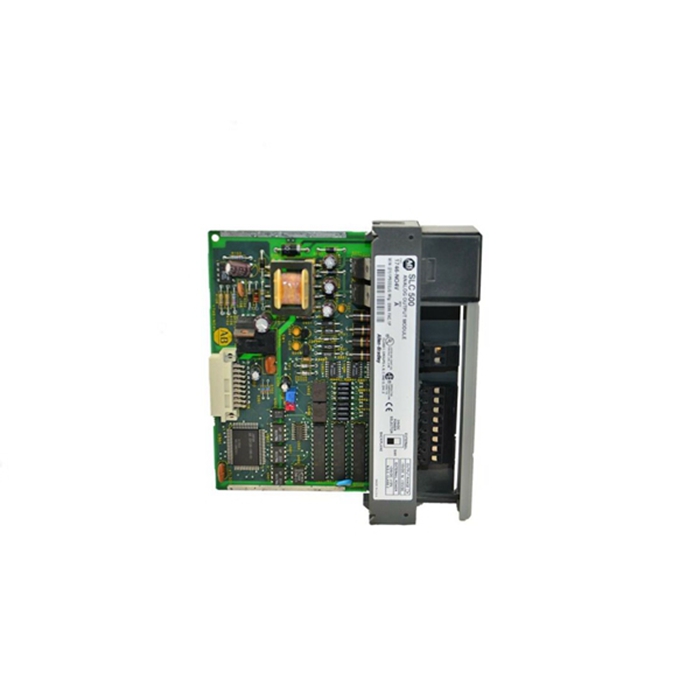

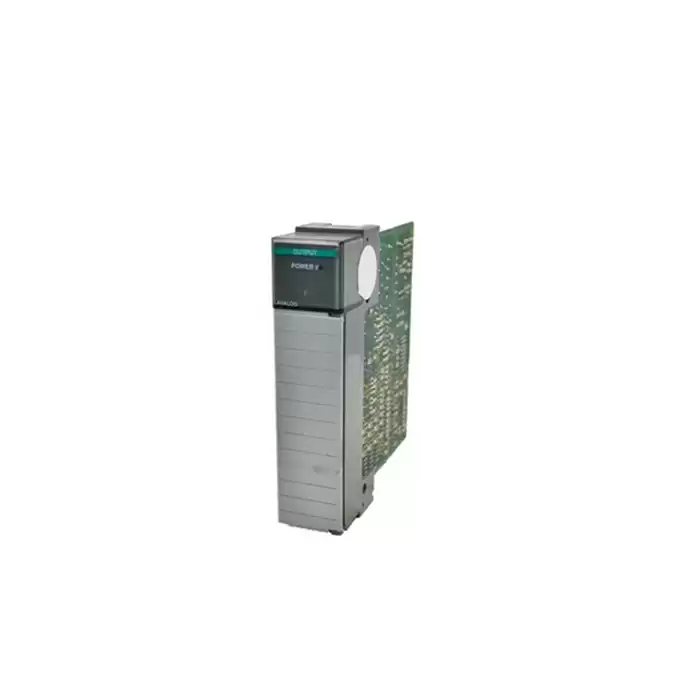

The 1746-NT8 is an analog input module that belongs to the SLC 500 product family. This module is specifically a Thermocouple / millivolt that is compatible with SLC 500 processors such as SLC 5/01, 5/02, 5/03, 5/04 and 5/05. It may be used with SLC fixed style or modular hardware category.
Similar to other analog input modules, the 1746-NT8 converts the receive analog signal to a digital value using Sigma-Delta modulation. The converted data is save to the module’s local memory which is communicated to the CPU for creating a data table where the digitally converted values are stored.
This module may be installed in a fixed style chassis specifically using a 1746-A2 chassis. If used with a modular style controller, this module may be installed in any slot except slot 0. Slot 0 is always reserved for the controller or communication adapters such as a Remote IO, Data Highway Plus (DH+) and Ethernet communication module.
The data formats available for the input signal include engineering units, Scaled for Proportional-Integral-Derivative (PID) and Proportional counts. Scaled for PID is the most compatible data format for Thermocouple and millivolt input signals.
