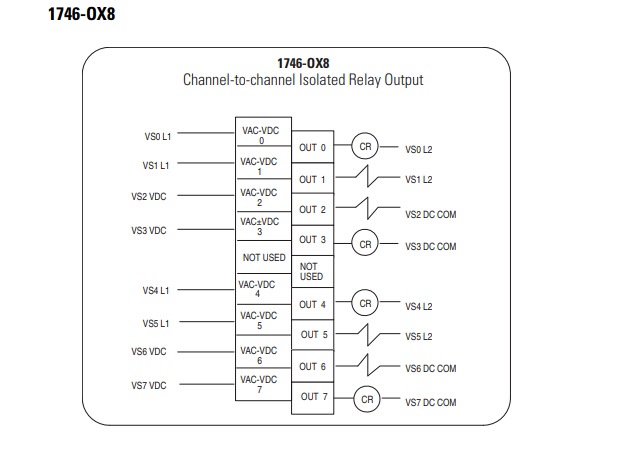

The Allen-Bradley 1746-OX8 is an SLC 500 digital I/O module. This output module comes with 8 high-current relay contact outputs that are individually-isolated. It is also an N.O. relay output module with relay contact ratings with a maximum of 30 A each for make and break at 120V AC and a maximum of 15 A make and 1.5 A break at 240V AC. At a continuous 5 A for both AC voltages, the module has a make of 3600 VA and a break of 360 VA. For DC voltages, the maximum make and break are 0.22 A each at 125V DC and both 1.2 A each at 24V DC. Continuous 1 A at 125V DC and 2 A at 24V DC both have a make and break of 28 VA each.
Status indicators are available with this module. It can be mounted in a chassis and has an open-type enclosure. You must remember to install and remove the module only when power is not applied to the chassis.
|
|
|
Attribute
|
|
1746-OX8
|
|
|
|
|
|
|
|
Voltage, operating
|
|
5V DC
|
|
5...125
|
|
|
|
24V DC
|
|
5...265
|
|
|
|
|
|
|
|
|
|
Signal delay, max resistive load
|
|
On = 10.0 ms
|
|
|
|
|
|
Off = 10.0 ms
|
|
|
|
|
|
|
|
Backplane current
|
|
5V DC
|
|
0.085 A
|
|
consumption
|
|
24V DC
|
|
0.090 A
|
|
|
|
|
|
|
|
|
|
Load current, min
|
|
10 mA @ 5V DC
|
Allen Bradley 1746-OX8
Allen-Bradley 1746-OX8 (1746OX8) Output Module
Email:sales3@amikon.cn
|
Part Number:
|
1746-OX8
|
|
Series:
|
SLC 500
|
|
Module Type:
|
Digital Contact Output Module
|
|
Operating Voltage:
|
5-265 Volt AC or 5-125 Volts DC
|
|
Outputs:
|
8
|
