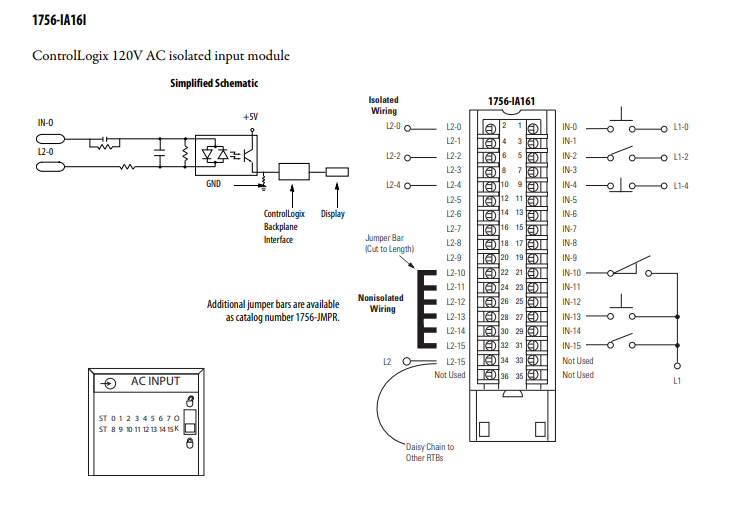

The Allen-Bradley 1756-IA16I is a ControlLogix I/O Module.
This AC digital input module is an isolated type and has a display that shows the input and communication status and module health. The isolation is per point and is rated at 125 Volts continuous between inputs and connects to a ControlLogix chassis. The 1756-IA16I has 16 individually isolated inputs and a change of state that can be manually configured by the user through the RSLogix 5000 software. Removable terminal block housings compatible with this module are the 1756-TBCH and the 1756-TBS6H.
The input voltage and voltage category of this module are both 120 Volts AC. The current draw at 24 Volts is 3 milliamps and for 5.1 Volts, it is 125 milliamps. Its operating voltage ranges from 79 to 132 Volts AC and 47 to 63 Hertz. Maximum power dissipation is 4.9 Watts at 60 Degrees Celsius and the thermal dissipation is 16.71 BTU per hour. Inrush current, at a maximum, is 250 milliamps and the total backplane power is 0.71 Watts.
The screw to backplane input delay times are as follows: 'off' to 'on' hardware delay is 10 milliseconds maximum plus user-selectable filter time (1 or 2 milliseconds), and 'on' to 'off' hardware delay is 8 milliseconds maximum plus the user-selectable filter time (9 or 18 milliseconds).
|
Attribute
|
|
1756-IA16I
|
|
|
|
|
|
Inputs
|
|
16 individually isolated
|
|
|
|
|
|
Voltage category
|
|
120V AC 50/60 Hz
|
|
|
|
|
|
Operating voltage range
|
|
79…132V AC
|
|
|
|
47…63 Hz
|
|
|
|
|
|
Input voltage, nom
|
|
120V AC 50/60 Hz
|
|
|
|
|
|
Input delay time (screw to backplane)
|
|
|
|
Off to On
|
|
Hardware delay: 10 ms max + filter time
|
|
|
|
User-selectable filter time: 1 ms or 2 ms
|
|
|
|
|
|
On to Off
|
|
Hardware delay: 8 ms max + filter time
|
|
|
|
User-selectable filter time: 9 ms or 18 ms
|
|
|
|
|
|
Current draw @ 5.1V
|
|
125 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
3 mA
|
|
|
|
|
|
Total backplane power
|
|
0.71 W
|
Allen Bradley 1756-IA16I
Allen-Bradley 1756-IA16I (1756IA16I) Input Module
Email:sales3@amikon.cn
Part Number:
|
1756-IA16I
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Digital AC Input Module
|
|
Inputs:
|
16 Individually Isolated
|
|
Minimum Operating Current:
|
5 milliamperes at 79 Volts AC, 47-63 Hertz
|
