Specifications
| Brand |
Allen-Bradley / Rockwell Automation |
| Series |
ControlLogix |
| Part Number |
1756-IR12 |
| Application |
General purpose I/O |
| Module type |
Analog input, 3-wire RTD connections |
| Number of channels |
12, non-isolated |
| Data resolution |
24-bit |
| Mounting |
Chassis |
| Display |
Status LED |
| Input/output range |
1 to 500/2 to 1000/4 to 2000/8 to 4000 Ohms |
| Isolation voltage |
250 Volts (continuous) |
| Current draw at 5.1 Volts DC |
200 milli Amps |
| Current draw at 24 Volts DC |
150 milli Amps |
| Operating temperature |
0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| UPC |
887172654879 |
| UNSPSC |
32151705 |

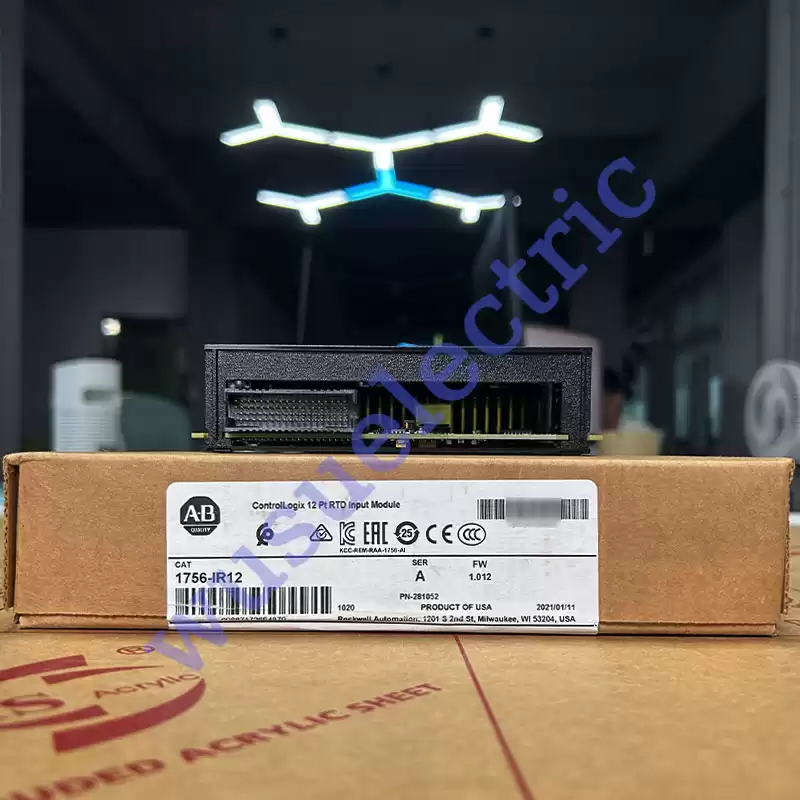

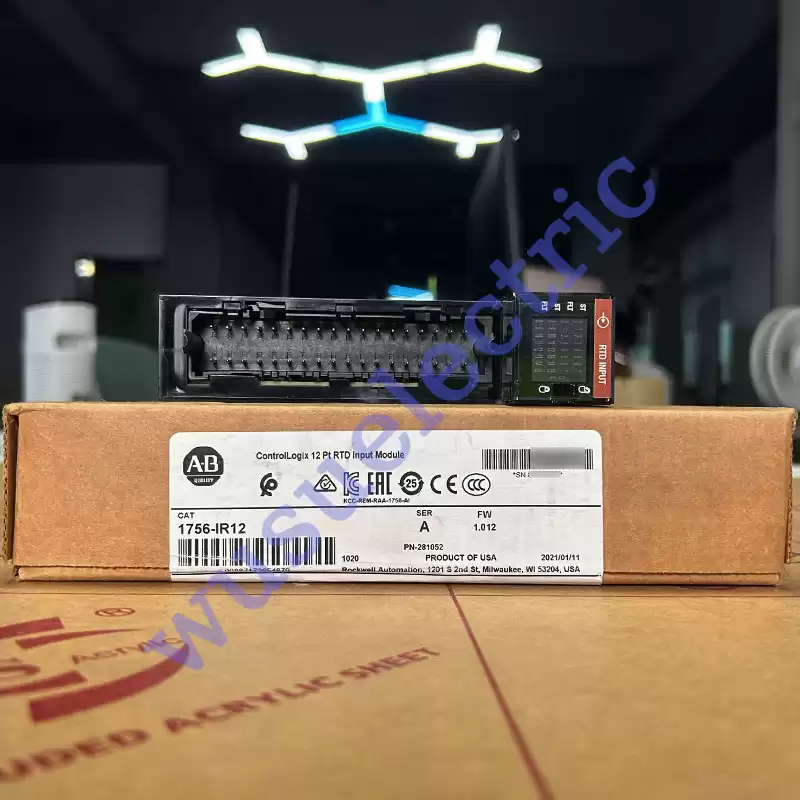

The analog input module that is known as the 1756-IR12 module has been designed by Allen-Bradley/Rockwell Automation and it is made for general-purpose applications and it has a variety of features in order to meet different requirements. The module has features like a notch filter, different module input ranges, a digital filter, a detection feature for under-range/over-range situations, sensor offset, wire off detection, and different sensor types. The 1756-IR12 module provides different input ranges for different sensor types and has the ability to automatically select the last used range-sensor configuration. The unit is part of the Bulletin 1756/ControlLogix product family which offers several other input modules with specifications geared to meet the demands of different applications in industrial environments.
The 1756-IR12 analog input module supports 3-wire RTD connections and it has 12 analog non-isolated channels. The module features 24-bit resolution and a status LED display. The module provides the following input/output ranges: 1 to 500, 2 to 1000, 4 to 2000, and 8 to 4000 Ohms. The 1756-IR12 module has a current draw of 200 milliAmps at 5.1 Volts and one of 70 milliAmps at 24 Volts. This component dissipates up to 2.7 Watts of power and it has a thermal dissipation of 9.2 BTU per hour. The module features overvoltage protection of up to +/- 30 Volts DC and it has a channel bandwidth that is dependent on the notch filter configuration. The 1756-IR12 input module has a continuous insolation voltage of 250 Volts and it features a reinforced insulation type. In addition to that, the unit mounts on a chassis and it has an operating temperature of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
