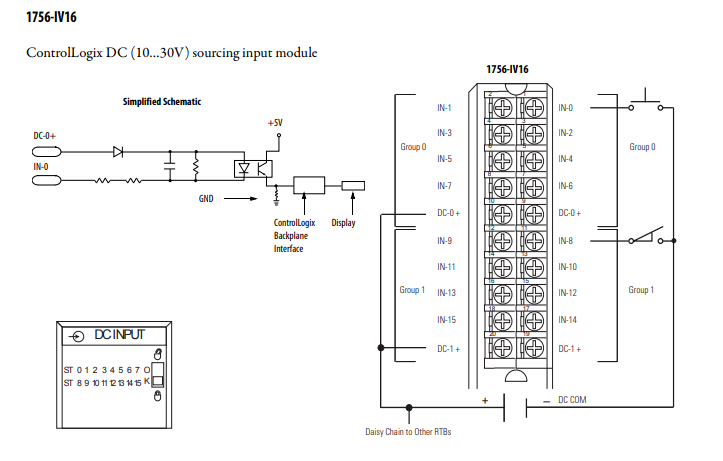

The Allen-Bradley 1756-IV16 is a digital sourcing I/O module. This input module has 16 inputs available, with 8 points in a group. Compatible with the ControlLogix 1756 chassis, it requires a removable terminal block housing, or RTB, which can either be the 1756-TBNH or 1756-TBSH before it can be attached to the chassis. Using the RSLogix 5000, you can configure a change of state or input filter times for the 1756-IV16 module. Only an input data format is used by this module.
The operating voltage range of the 1756-IV16 module is from 10 to 30 Volts DC and it has a 12/24 Volt DC source voltage category. It also has a nominal input voltage of 24 Volts DC. Its total backplane power is 0.61 Watts and maximum inrush current is 250 milliamps. The 1756-IV16 has a maximum input impedance of 3.2 kΩ at 30 Volts DC, a maximum power dissipation of 5.1 Watts at 60 Degrees Celsius, and a thermal dissipation of 18.47 BTU/hour. It also has a continuous isolation voltage of 250 Volts.
|
Attribute
|
|
1756-IV16
|
|
|
|
|
|
Inputs
|
|
16 (8 points/group)
|
|
|
|
|
|
Voltage category
|
|
12/24V DC source
|
|
|
|
|
|
Operating voltage range
|
|
10…30V DC
|
|
|
|
|
|
Input voltage, nom
|
|
24V DC
|
|
|
|
|
|
Current draw @ 5.1V
|
|
110 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
2 mA
|
|
|
|
|
|
Total backplane power
|
|
0.61 W
|
Allen Bradley 1756-IV16
Allen-Bradley 1756-IV16 (1756IV16) Input Module
Email:sales3@amikon.cn
|
Part Number:
|
1756-IV16
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Digital DC Input Module
|
|
Inputs:
|
16
|
|
Input Voltage:
|
12-24 Volts DC
|
|
Operating Voltage Range:
|
10-30 Volts DC
|
