Brand Name                 AB

Product reference      1756-LSP

The Allen-Bradley 1756-LSP is a GuardLogix safety partner controller. It has 250 connections but it does not have any user memory for standard tasks. Its safety memory depends on the memory of the corresponding primary controller. Its main purpose is to provide a redundancy, a second channel that is isolated for the system's safety-related functions.

This controller has current draws of 1200 mA at 5.1V DC and 14 mA at 24V DC. Its power dissipation is 3.5 W and its thermal dissipation is 11.9 BTU/hr. The isolation voltage is a continuous 30V which is basic insulation that has been type-tested from RS-232 port-to-system at 720V DC for 60 seconds. Its operating temperature is from 0-60 ËšC and its non-operating temperature is from -40-85 ËšC. It also comes with a maximum surrounding air temperature of 60 ËšC and a non-condensing relative humidity of 5-95%. Its operating shock is 30 g, its non-operating shock is 50 g, and its operating vibration is 2 g at 10-500 Hz.
The configuration of the 1756-LSP safety partner is dependent on the primary controller since it does not have its own key switch and communication port although it has an RS-232 port. It comes with a battery for the clock and backup power. The controller also has LED status indicators allowing you to monitor its current state. The controller ships with a nonvolatile memory, a CompactFlash card to be exact. It measures 27 x 17 x 7 centimeters and weighs 0.7 lbs.

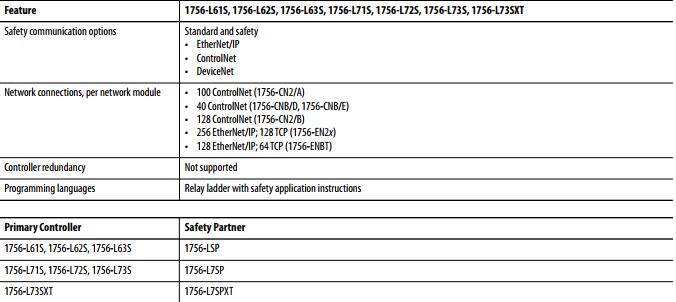

A GuardLogix controller requires one safety partner and the 1756-LSP safety partner is used for the 1756-L61S, 1756-L62S, and the 1756-L63S controllers. It should be installed in the slot to the right of the primary controller to satisfy SIL 3 requirements.

1756 ControlLogix Controllers ControlLogix Controller Catalog Numbers 1756-L61, 1756-L62, 1756-L63, 1756-L63XT, 1756-L64, 1756-L65, 1756-L71, 1756-L72, 1756-L73, 1756-L73XT, 1756-L74, 1756-L75 GuardLogix Controller Catalog Numbers 1756-L61S, 1756-L62S, 1756-L63S, 1756-LSP, 1756-L71S, 1756-L72S, 1756-L73S, 1756-L7SP, 1756-L73SXT, 1756-L7SPXT ControlLogix Redundancy Catalog Numbers 1756-RM, 1756-RMXT, 1756-RM2, 1756-RM2XT

1756 ControlLogix Controllers The ControlLogix® controller provides a scalable controller solution that is capable of addressing a large amount of I/O points. The ControlLogix controller can be placed into any slot of a ControlLogix I/O chassis and multiple controllers can be installed in the same chassis. ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, as well as over network links. To provide communication for a ControlLogix controller, install the appropriate communication interface module into the chassis.

A GuardLogix® controller is a ControlLogix controller that also provides safety control. The GuardLogix system is a dual controller solution—you must use a 1756-L6xS/1756-L7xS primary controller and a 1756-LSP/1756-L7SP safety partner to achieve up to SIL CL 3/PLe/Cat. 4. A major benefit of this system is that it’s still a single project, safety and standard together. The safety partner controller is a part of the system, is automatically configured, and requires no user setup. During development, safety and standard have the same rules; multiple programmers, online editing, and forcing are all allowed. Once the project is tested and ready for final validation, you set the safety task to a SIL 3 integrity level, which is then enforced by the GuardLogix controller. When safety memory is locked and protected, the safety logic can't be modified and all safety functions operate with SIL 3 CL integrity. On the standard side of the GuardLogix controller, all functions operate like a regular Logix controller. Thus, online editing, forcing, and other activities are all allowed. With this level of integration, safety memory can be read by standard logic and external devices, like HMIs or other controllers, eliminating the need to condition safety memory for use elsewhere. The result is easy system-wide integration and the ability to display safety status on displays or marquees. Use Guard I/O modules for field device connectivity on Ethernet or DeviceNet networks, and for safety interlocking between GuardLogix controllers use Ethernet or ControlNet networks. Multiple GuardLogix controllers can share safety data for zone to zone interlocking, or a single GuardLogix controller can use remote distributed safety I/O between different cells/areas. In addition to the standard features of a ControlLogix controller, the GuardLogix controller has these safety-related features
