Allen-Bradley 1756-OB16E I/O Module, Digital DC Output

1756-OB16E   ControlLogix 16 Point D/O Module



Allen  Bradley   1756-OB16E  !!!  --- sales3@amikon.cn



  Contact:  Jessica

                               Email:  sales3@amikon.cn

                               Skype:  jessica01235483

                               Wechat:  hu18030235311

                               Mobile:  86-18030235311(WhatsApp)

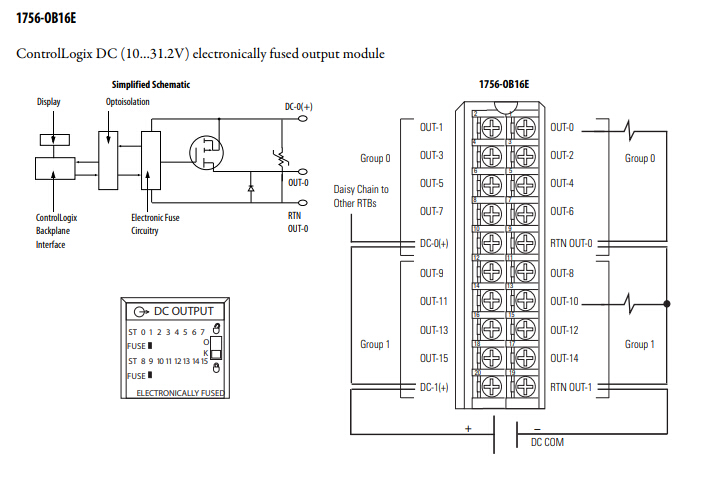

The Allen-Bradley 1756-OB16E is a ControlLogix DC digital output module. It has been fused electronically by group and has 16 outputs, with 8 points per group. A Removable Terminal Block housing, or RTB, is necessary before installing it to a compatible ControlLogix chassis. For this module, you can use the 1756-TBNH RTB or the 1756-TBSH RTB, which both have 20 pins. Note that it is necessary that the chassis and power supply be installed and grounded before installing this module with the RTB.




Using the RSLogix 5000 programming software, it is possible to configure the 1756-OB16E module's transition from Program state to Fault state, the output state in Fault mode, or the output state in program mode. Other features of this module are multiple output point densities, configurable point-level output states, isolated and non-isolated varieties of output modules, and output data echo.




The 1756-OB16E module has a voltage category of 12/24V DC source, as well as an operating voltage of 10 to 31.2V DC. Its total backplane power is 1.32 W and a current draw of 250 milliamps at 5.1V and 2 milliamps at 24V







Attribute  1756-OB16E
Outputs  16 electronically fused (8 points/group)
Voltage category  12/24V DC source
Operating voltage range  10…31.2V DC
Output delay time
Off to On 70 s nom/1 ms max
On to Off 360 s nom/1 ms max
Current draw @ 5.1V  250 mA
Current draw @ 24V  2 mA
Total backplane power  1.32 W
Thermal dissipation  13.98 BTU/hr






Allen  Bradley  1756-OB16E


Allen-Bradley 1756-OB16E  I/O Module, Digital DC Output





Email:sales3@amikon.cn





  Part Number:
  1756-OB16E
  Series:   ControlLogix
  Module Type:   Electronic Fused DC Output Module
  Outputs:   16-Point Electronically Fused
  Voltage:

  12-24 Volts DC
