Allen Bradley 1756-OB16I Module

Allen Bradley 1756-OB16I Original And Brand New In Stock

Overview For 1756-OB16I

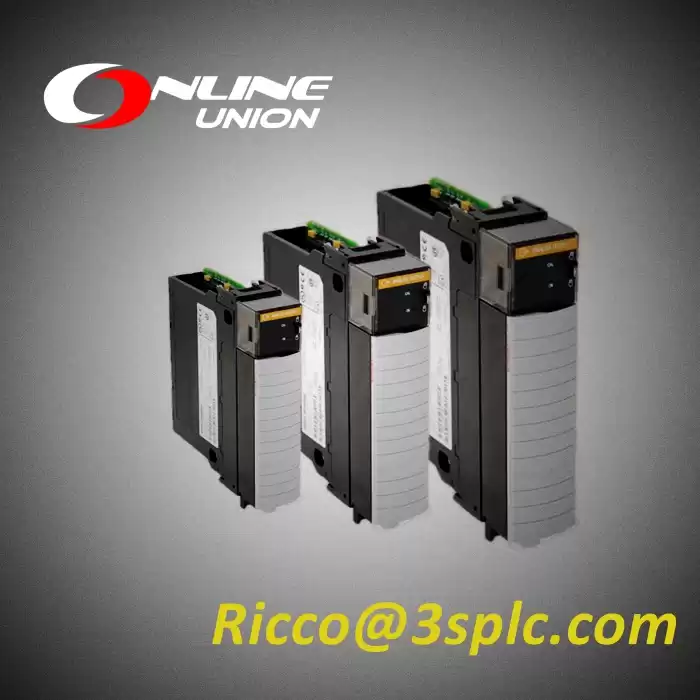

The 1756-OB16I module has also been routine-tested at 1350V AC for 2 s. It has an outputs-to-backplane continuous isolation voltage of 250V and an output-to-output continuous isolation voltage of 125V. It also has an output delay time of a maximum of 1 ms from off to on and a maximum of 2 ms from on to off. Power dissipation of the 1756-OB16I module is 3.6W at 60 Degrees Celsius (maximum) and its thermal dissipation is 12.28 BTU/hr. It has an operating temperature range of 0 to 60 Degrees Celsius and a non-operating temperature range of -40 to 85 Degrees Celsius. The Allen-Bradley 1756-OB16I is a 1756 ControlLogix Discrete output module that supports sinking and sourcing configuration and operates at a Voltage category of 12/24VDC. This output module is a single slot module that directly installs to the 1756 chassis.
